Industrial Tilting Jacketed Kettle Food Gas Cooking Pot With Mixer
Tina's Whatsapp: 008618539906538 Skype: logang86 Email: vip@
Introduction of the gas cooking pot with mixer:
1. Material: SUS304 and SUS 316L available .
2. Capacity:10L-500L.
3. Widely used in food, beverage, dairy, pharmacy Industries.
4. Double jacketed layers.
5. Mirror Polished for inside.
6. Matte Polished for Outside
7. Composed of kettle, bracket, worm wheel and worm.
Also could be made according to customers' requirements
Usage gas cooking pot with mixer:
Gelgoog Machinery Automatic tilting gas cooking pot with mixer, widely used in candy, pharmacy, dairy, alcohol, cake, drinks, honey, canned food processing, can also be used in large restaurant or dining room to boil soup, cook, stew, boil congee, etc., is a food processing to improve quality, shorten the time, good equipment to improve working conditions.
Characteristics of the gas cooking pot with mixer:
It has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material and easy control of heating temperature.
The inner pot body (inner pot) is made of acid-resistant and heat-resistant Austenitic stainless steel, which is beautiful in appearance, easy to install, convenient to operate, safe and reliable.
gas cooking pot with mixer Technical Parameters:
| Model | GG-J100 | GG-J200 | GG-J300 | GG-J400 | GG-J500 |
| Volume L | 100 | 200 | 300 | 400 | 500 |
| Working pressure(Mpa) | 0.09 | ||||
| 0.3 | |||||
| Evaporation Kg/h | 40 | 65 | 75 | 100 | 150 |
| Heating space (Square meter) | 0.6 | 1 | 1.44 | 1.65 | 1.9 |
| Consumption(Kg/h) | 44 | 72 | 110 | 136 | 165 |
| Pan diameter* depth (cm) | 70*52 | 80*55 | 90*63 | 100*68 | 110*75 |
| Stir speed(r/min) | 36 | ||||
| Power(KW) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 |
| Structure | Fixed/tilting/mixing | ||||
Note:The volume,working pressure,motor power,stirring impeller structure can be customized by the requirements of customers. | |||||

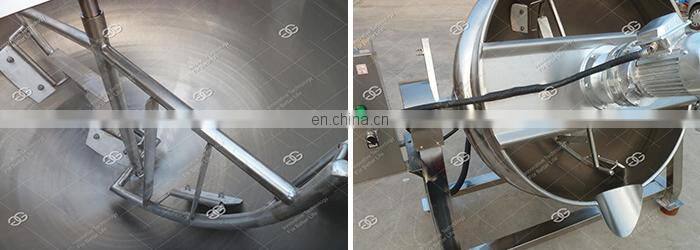

More gas cooking pot with mixer machine picture:
(1) What is the voltage of the machine? Can we change the voltage?
The voltage of our device is 380V, 50Hz, 3Ph, which can change the voltage,but it is all three
items of electricity, and the power is constant.
(2)The cutting size can be adjusted?
The conventional knife can not adjust the size, it needs to be customized, because the blade is
fixed on the casing, and the spacing between blades is fixed. If you want cut of different
sizes, it needs to be customized knife.
(3)What is the sizes and raw material of the pallet?
The size of the general tray outer frame is 650*650mm, the material is food grade PP,and the
size of the pallet can be customized according to the size of the peanut bar before cutting.
(4)What is the raw material of the roller?
It can be made of stainless steel, and also it can be made into PP.
(5)Can we make different sizes of the finished product?
Sure, the lengths can be adjusted by machine.
(6)What kind of finished product we can make?
Caramel treats ShaQima, peanut candy, sesame candy, cereal bar...
The control panel is a PLC touchscreen
our machine have sale to many country,this picture just a part of the country,
Tina's Whatsapp:0086 185 3990 6538
Skype: logang86
Email: vip@
If you are interested in our machine, pls kindly contact with me freely.
