Automatic alloy high oil yield oil process machine

Name: Automatic alloy high oil yield oil process machine
Brand: Lewin
Availability: InStock

FOB Price

USD $2,600 - $7,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Tianjin Qingdao Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Lewin	Place of Origin:	Henan, China	Type:	Cold & Hot Pressing Machine
Certification:	ISO	Weight:	920KG
Dimension(LWH):	6709501460(mm)	Voltage:	380v, 380v	Condition:	New
Automatic Grade:	Automatic

Product Description

Product Introduction

Automatic alloy high oil yield oil process machine

Structure:
This hydraulic oil making machine mainly includes three parts:

1. Main engine 2. Hydraulic system 3.electrical system
The following is the specific introduction:
1.Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts.

2.When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

1.we have many moldes for you to choose

2.We can customize the model you need for you

Model	Capacity (kg/batch)	Weight (kg)	working pressure	Power(Single/3phase)	Package Size (mm)
YY-185	4	550	60Mpa	2.2/1.1kw	6008801150
YY-230(A)	8.5	920	60Mpa	2.2/1.1kw	6709501460
YY-230(B)	9.5	970	60Mpa	2.2/1.1kw	6709501560
YY-250	11	1060	60Mpa	2.2/1.1kw	7109501560
YY-270	13.5	1230	60Mpa	4.0/2.2kw	75010101640
YY-300	16	1600	60Mpa	4.8/2.2kw	100011001660
YY-335	20	1750	60Mpa	4.8/2.2kw	110012401730
YY-355	23	2300	60Mpa	5.0/3.0kw	116012001810

Detailed Images

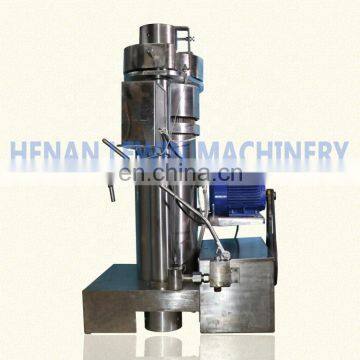

Hydraulic oil press four orientation display

Main feature:
1.3-way safety valve and a flat body on the top for added safety throughout the machine

2.The oil line treatment of our machine is 36 wire. The oil line treatment makes the oil less impurities and the oil is purity.

Detail of the machine:

best quality hydraulic oil expeller machine can press a lot of raw materials, as follows:

If there is no raw material you need in the picture above, you can contact us and we can provide you with free testing.

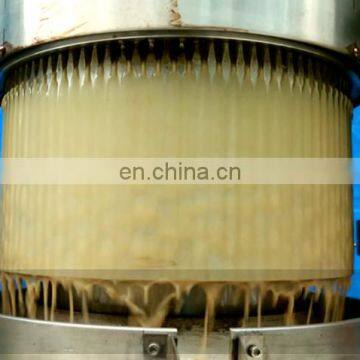

Hydraulic oil press production process, high oil yield, cool oil:

Advantage:

High oil yield and easy operation

Our warehouse

1.We have a professional production department

2.We have a professional quality inspection department, strict supervision, to ensure that the quality of the machines delivered to customers is the best.

Packing & Delivery

We use wooden box packaging machines that reduce machine wear. We can also customize the packing box according to the customer's needs

After-service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
    (1)The damage caused by person and force majeure;
    (2)The damage caused by improper operating;
    (3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

FAQ

Q:Do you have your own factory?

A:Yes, we have our own factories and warehouses

Q:Can you guarantee the quality of your products?

A:Of course, our factory has 20 years of production experience, We are specializing in the production of oil presses

Q:Do you have after-sales service?

A:If the machine is malfunctioning under normal use, we will provide after-sales service free of charge, but if the machine malfunctions due to improper operation, we will not provide repair

Q:How can I choose the model that suits me?

A:You can tell our team your needs, we will recommend the best machine model for you.

Q:How long does it take to transport?

A:7-15 days without special circumstances

Our Company

Since 1998. Henan Lewin Industrial Development Co Ltd was found offcially registered under Henan companies.It is a firm which has the ability for manufacture,Research& Development.Our main products are hydraulic oil press machine,spiral oil press machine,the accessory equipment for the oil press machine and other machines.
