Coconut diesel oil water separator

Coconut diesel oil water separator

The oil-water separation technology developed independently, the "vortex separation sedimentation method" and the world's advanced nine-step separation process were used to treat restaurant wastewater. The standard rate was 100%.

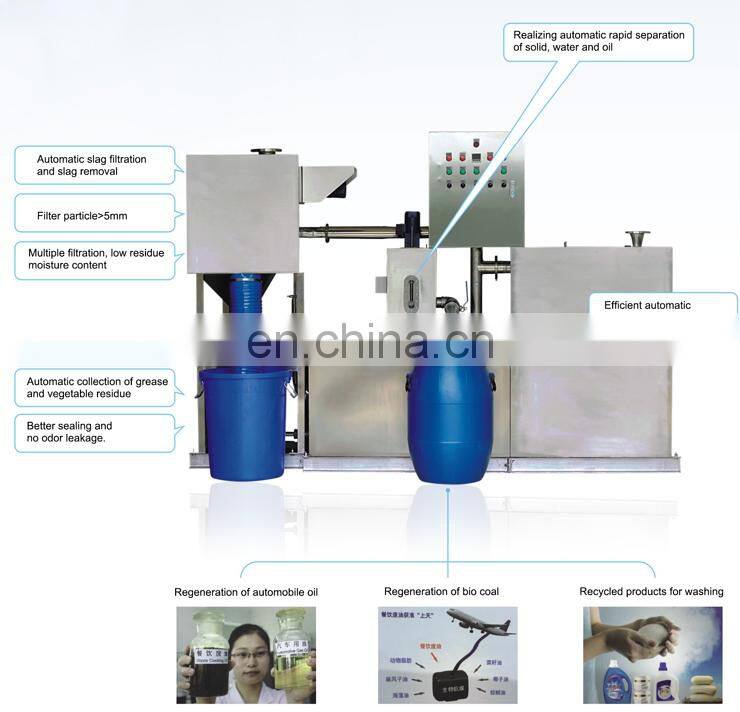

Diesel oil water separator Features:

1. The sewage enters the slag removal system from the inlet first, and then filters out the solid particles with diameter of more than 5mm through primary filtration and secondary slag removal.

2. Sewage enters the separation system, and the solid, water and oil can be separated automatically and quickly through three, four and five stages of treatment.

3. the fine sludge and other precipitates can be discharged to the slag bucket regularly at the bottom of the separation plant.

4. through the six level automatic oil guide system, the oil and oil are collected automatically, and the grease is collected automatically.

5. The sewage separated by oil and water passes through the siphon device to ensure that the water enters the water storage chamber automatically and continuously, conforms to the discharge standard, and can be lifted and discharged into the municipal pipe network by the sewage pump.

Diesel oil water separator Selection conditions:

Drainage pipes and ventilation pipes related to oil reserving equipment

The daily maintenance space of each equipment is reserved, and the minimum distance between each azimuth and equipment is 800mm.

Provide installation space, load condition and transportation channel for oil separation equipment.
Reserve 380V power supply and 16mm2--25mm2 cable.

When installing equipment, valves must be installed at intake and outlet.

It is recommended that water collection wells be set up between equipment.
It is strictly prohibited to install the equipment in the pit.
If there are any special requirements, please contact our technical department.

Diesel oil water separator Application

QILEE series (automatic oil-water separator) is suitable for commercial complex, living square, Department store, large supermarket, hotel, hotel, hospital, army, school, office building, apartment, station, airport, industrial park, restaurant, food plaza and other places containing oily sewage.

The size of the equipment can be customized according to different users, different displacement and different working conditions.

Equipment configuration can be configured according to customer preferences.

Diesel oil water separator Selection table:

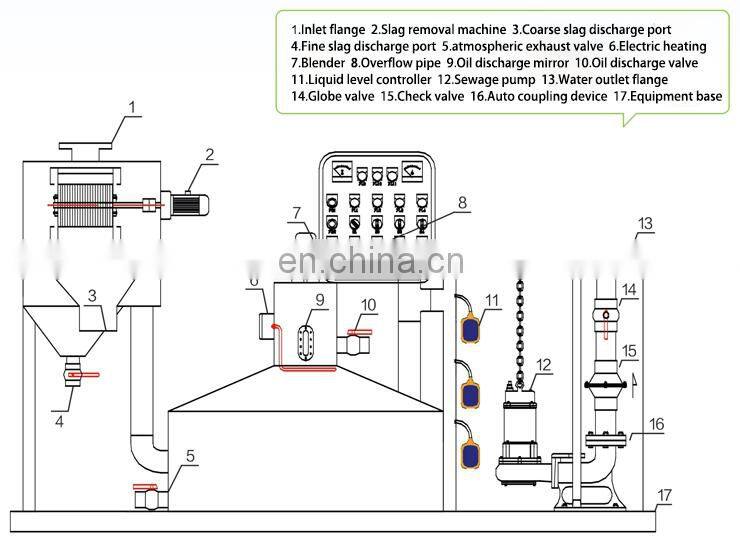

 Diesel oil water separator Working principle:

 Diesel oil water separator application scenario:
