Home > Products > 4RB Three Stage Blowers > 10HP,ring blower aquarium air pump,electric turbo compressor,rotary sweage treatment air pump
10HP,ring blower aquarium air pump,electric turbo compressor,rotary sweage treatment air pump
- 1000 Set / Sets per Month
- Shanghai or Ningbo
- T/T Credit Card
- 10HP three stage blower,High Pressure blower,waste treatment air blower
- 3RB350-2AAT47 roots blower replacement ring blower
- 3RB350-2AAT37 UL municipal sewage treatment ring blower
- 3RB350-1AAT47 high pressure ring blower for water sewage
- 3RB350-1AAT26 waste treatment high pressure side channel blower
- side channel blower without motor,belt shaft blower,engineer changeable blower
Product Details
Brand Name: | Greenco | Place of Origin: | Jiangsu, China | Model Number: | 4RB 630 H67 |
Application: | Industrial Blower | Rated Voltage: | 200-480V | ||
Rated Power: | 7.5KW(50HZ),8.6KW(60HZ) | Power Source: | Electric Blower | Pressure: | High Pressure |
Product Description

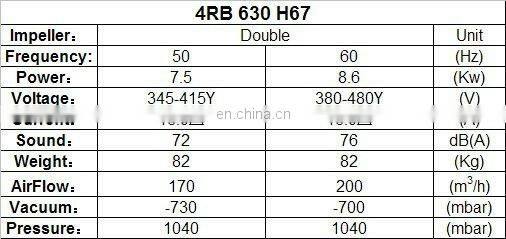

Parameters:

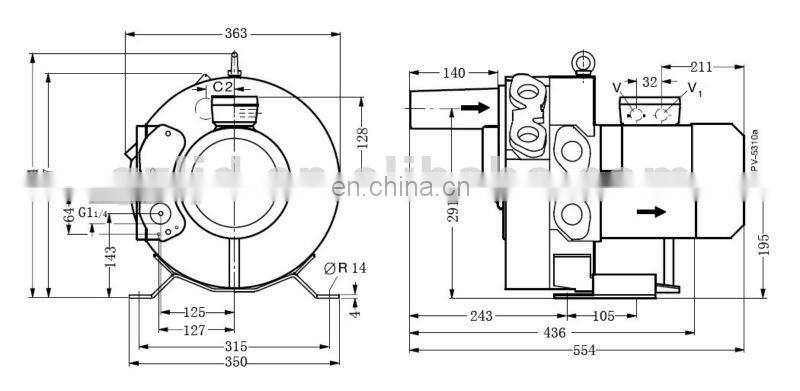

Size:
G-series operating principle
The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.

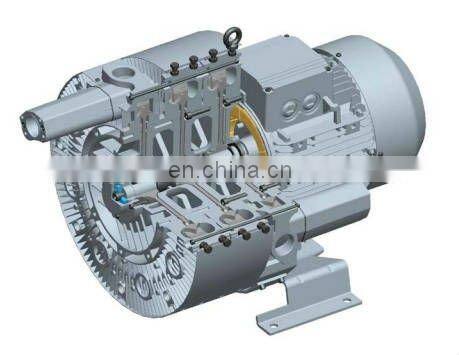

Explosive view:
Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty
Applications:
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
3.Packing machines
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
6.Soil remediatiom
7.Thermoforming
8.Sorting/enveloping of letters
9.Food-processing
10.Laser printers
11.Dental suction equipments
12.Paper processing
13.Printers/copiers
14.Textile machines
15.Aeration of fish ponds
16.Gas analysis
17.Wsimming pool equipment/whirlpools
Our company are mostly available ex stock.both the quality and price are best.if you are interested in our products,no hestation to contact us
Contact person:Queenie shen
Tel:+86-15061591836
Skype:queenie.shenqin
Web:
Certificate:

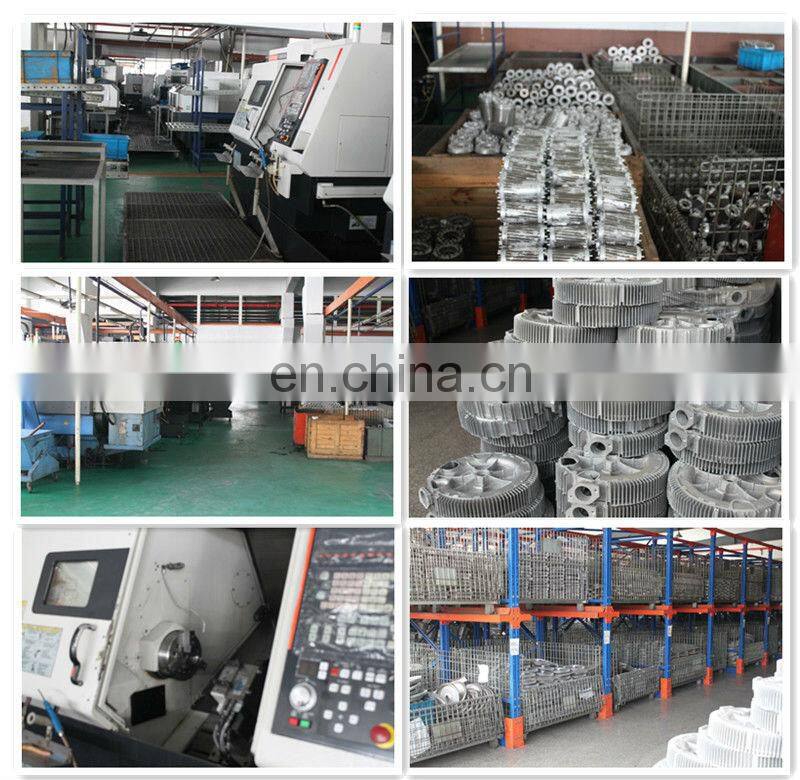

Production Line:
