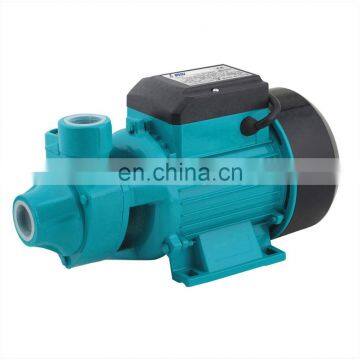

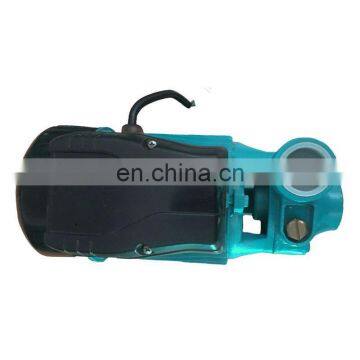

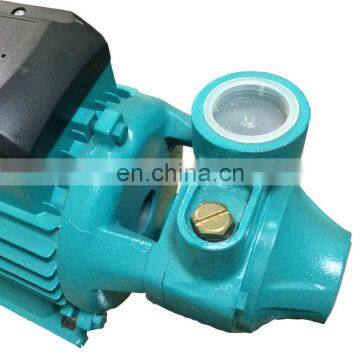

electric Vortex QB70 QB80 QB60 peripheral domestic water pump

Motor

Single-phase 220V/50HZ,60HZ if requested

Two-pole induction motor (n=2850r.p.m)

Continuous service S1

Thermal protector

Insulation Class : B

Protection : IP44

Operating Conditions

Liquid temperature up to 40℃

Ambient temperature up to 40℃

Total suction lift up to 8m

Material

*Pump body : cast iron

*Impeller : brass

*Motor housing : aluminum

*Bearing : C&U or local bearing

*Mechanical seal : Graphite to ceramic.

*Shaft with rotor : 45#steel or stainless steel shaft

Application

*Suitable for transporting clean water that does not

contain abrasive particles or liquids that are not

chemically aggressive towards the pump materials.

 *They are easy to be used and economical,ideal for

domestic use and in particular for distributing water

with small pressure sets and for the irrigation of

gardens and farmland

 *The pump should be installed in an enclosed

environment,or at least sheltered from inclement

weather.

    A: We are water pump manufactory. Welcome to visit our factory.

     A: 100PCS. Trial sample order is also OK.

5. Q: Is it all right to make customer's own brand name ?

     A:Yes, welcome.
