Super Performance Ductile Brass 20mm Mechanical Single Jet Water Meter

All water meter follow the ISO 4064 standard.

The type

Brass body     15mm - 40mm (1/2"-1-1/2")

Plastic body   15mm - 20mm (1/2"-3/4")

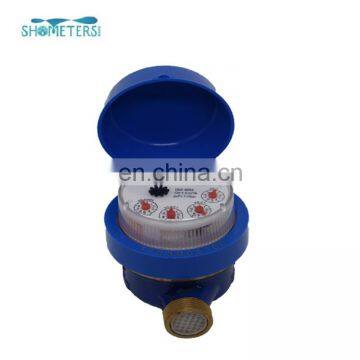

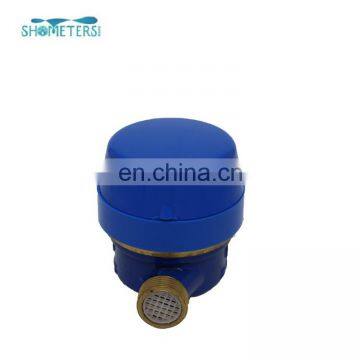

Pictures

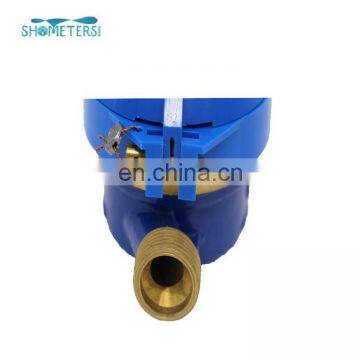

 The details

5/8 wheels

Application

--Measuring the volume of cold potable water passing through the pipeline.

Feature

--Single-jet, dry-dial, free rotating register, small in size and light in weight;

--Magnetic drive, Resistance to exterior magnet interference,

--keep the reading clear in a long term service;

Note

--Measuring accuracy conform to ISO 4064 class B standard..

--Available with different length on request. Available in hot water meter on request.

Working condition

--Water temperature:   0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)

--Water pressure   : ≤1.0Mpa

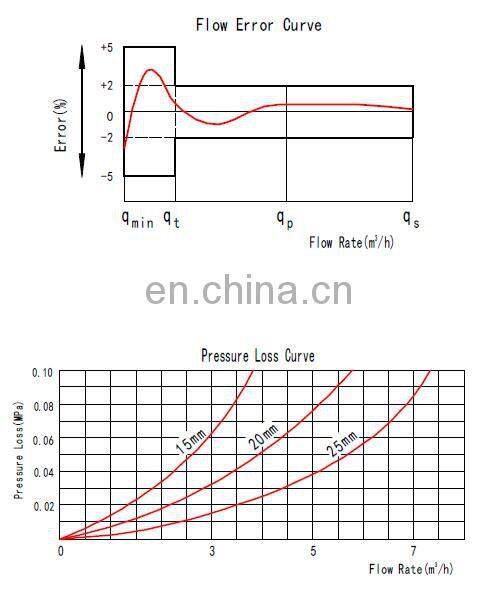

Maximum Permissible Error

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

Hot water meter ±3%

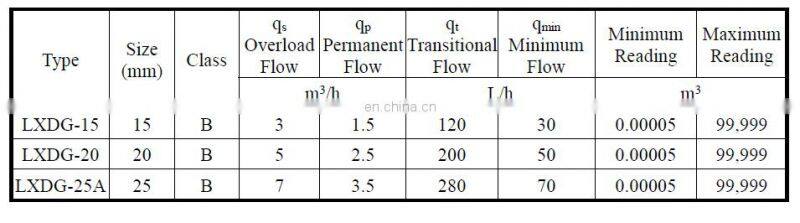

Main Technical Specifications

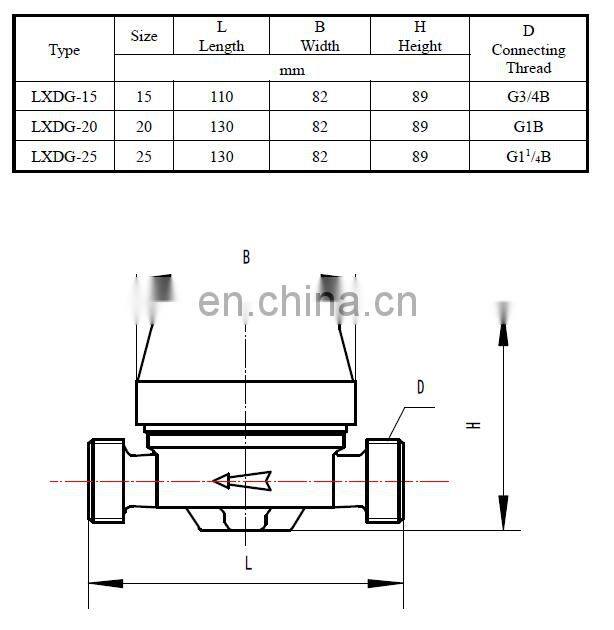

Dimensions

Packing & Delivery

Packing Details:Packing in carton or wodden

Delivery Detail:30 days

inner packing:

outer packing
