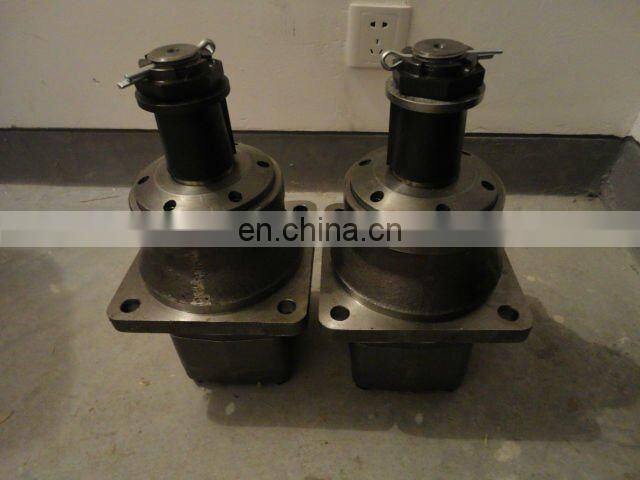

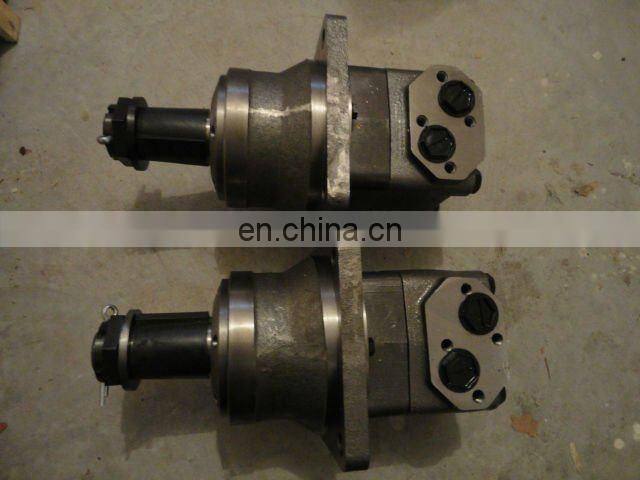

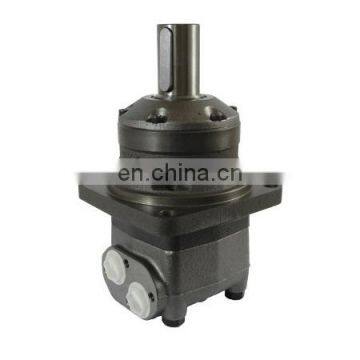

OMVW of OMVW315,OMVW400,OMVW500,OMVW630,OMVW800 orbital wheel motor
1. Compact in design with disc valving motor and geroler
2. Interchangeable with Danfoss, Eaton and M+S etc.
3. High pressure capacity shaft seal design
4. The offset mounting flange allows mounting of a wheel hub, so that radial energy can be absorbed between the tapered roller bearings
5. Shaft diameter 50 MM. Thread 1" BSP
6. Design and manufacturing of the spline and drives give the motor durability
7. Wide variety of mounting flanges, shafts,ports and speed provides design flexibility
8. Direction of shaft rotation and speed can be controlled easily and smoothly
9. Best combination of high efficiency and ecnomy in medium duty applications
10. Very competitive price
11. 1 year of warranty
12. Short delivery time
Technical Specificatons
Part no. | Deplace. ml/r | Max. cont. press. bar | Max. cont. rpm | Max. cont. torque N.m | Max. cont. power Kw |
OMVW315 | 314,5 | 200 | 510 | 92 | 42.5 |
OMVW400 | 400,9 | 200 | 500 | 118 | 53.5 |
OMVW500 | 499,6 | 200 | 400 | 146 | 53.5 |
OMVW630 | 629,1 | 180 | 315 | 166 | 48.0 |
OMVW800 | 801,8 | 160 | 250 | 188 | 42.5 |
