Fast Speed 20W Laser Marking Machine For Hardware

Name: Fast Speed 20W Laser Marking Machine For Hardware
Brand: Jiaoxi
Availability: InStock

FOB Price

USD $2500 - $5000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai port
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jiaoxi	Place of Origin	China
Model Number	JX-FTBX-Y20	Certification	CE, ISO, SGS
After-sales Service Provided	Engineers available to service machinery overseas	Condition	New
Power(W)	500W	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, PLT
Control Software	EZCAD	Cooling Mode	Air Cooling
CNC or Not	No	Laser Type	Fiber Laser
Working Accuracy	0.002mm

Product Description

Fast Speed 20W Laser Marking Machine For Hardware

Note:

1, In the freight, Russian customers can only go to the customer's city, the customer needs to pick up the goods from the city's warehouse. But we have already helped our customers pay the tariffs, so there will be no more other charges.
2, All transportation costs do not include customs duties and do not include remote fees. If the customer's address is in a remote area, the customer is required to pay a remote fee.
3,300 * 300mm models, Detail transportation price pls leave us message

Type	JX-FTBX-Y20
Power	20W
Laser Brand	Raycus
Marking Area	110mm*110mm
Optional Marking Area	200mm200mm/150mm150mm/300mm*300mm
Marking Depth	≤0.5mm
Marking Speed	7000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15℃~35℃
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Communication Interface	USB
Package Dimension	780mm x 440mm x 770mm
Gross weight	60KG
Optional (Not free of charge)	Rotary Device, Moving Table, other customized Automation

Main features

Features

1,China famous brand Raycus source laser power 20w, big marking size.
2, Sino galvo, high precise, good quality.( 110*110mm /150*150mm/200*200mm optional )
3, JCZ main board, free software ( support English , Japanese, Korea ). software version ( Ezcad 2.7 ).
4, Support win7/win8 ( 32 bits, 64 bits ). voltage 110v/220v optional.
5, Factory direct sale, price cheap.3 years warranty !

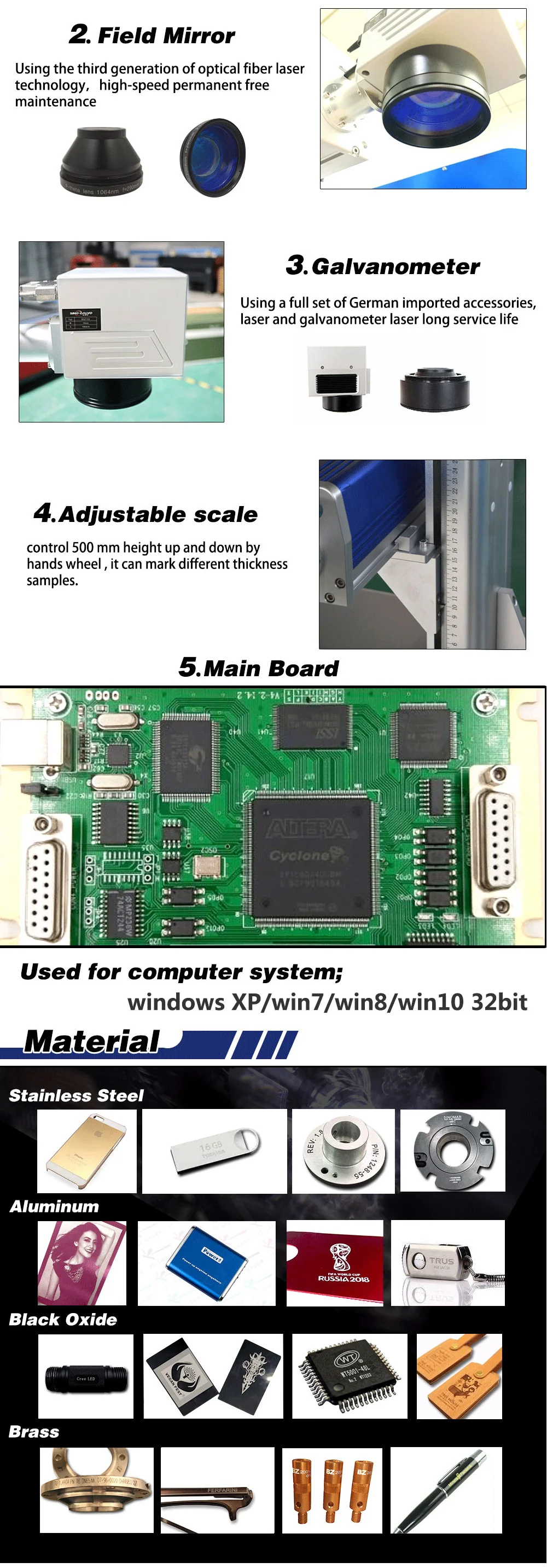

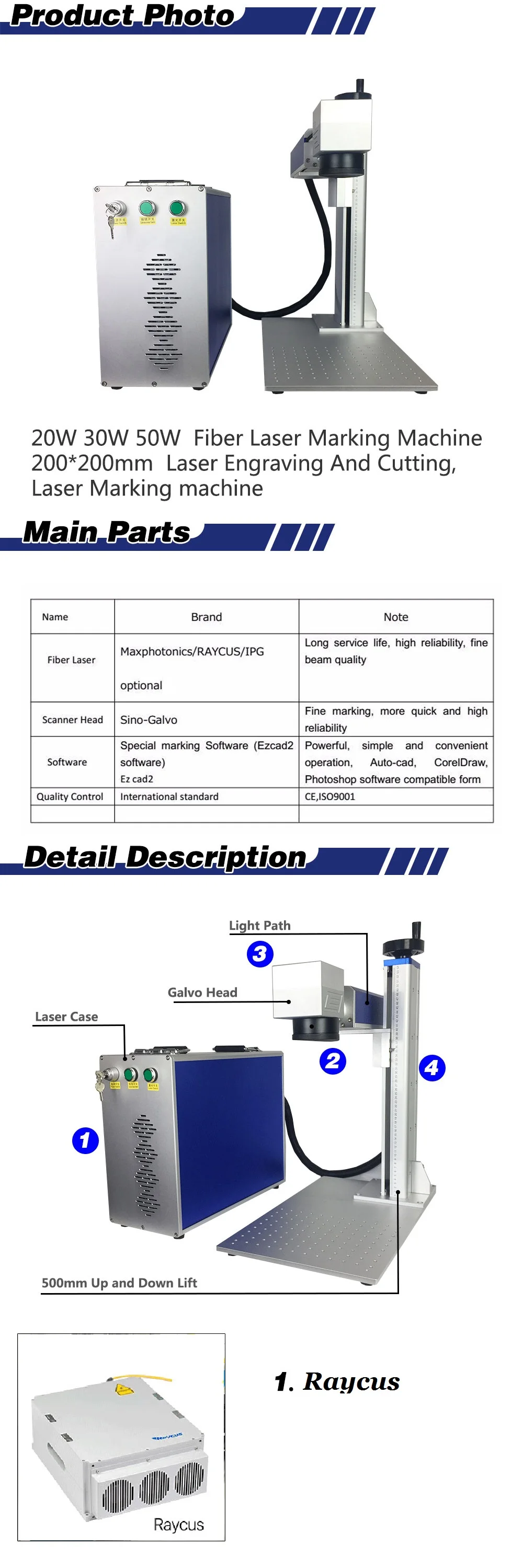

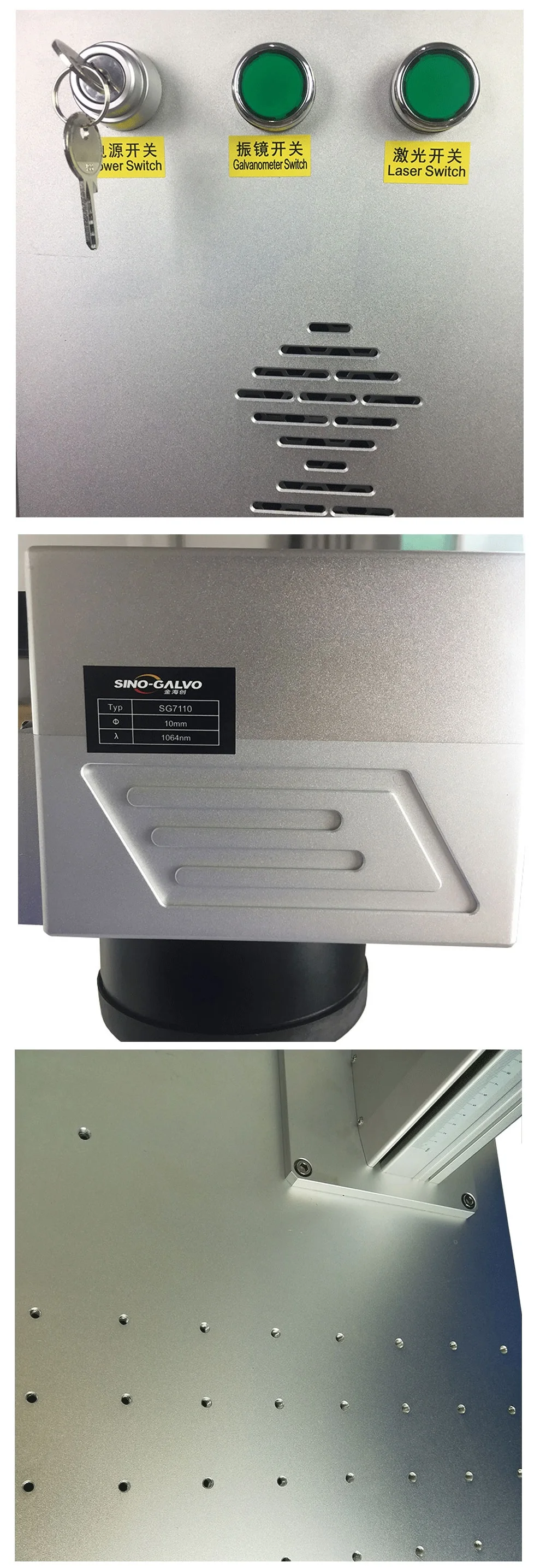

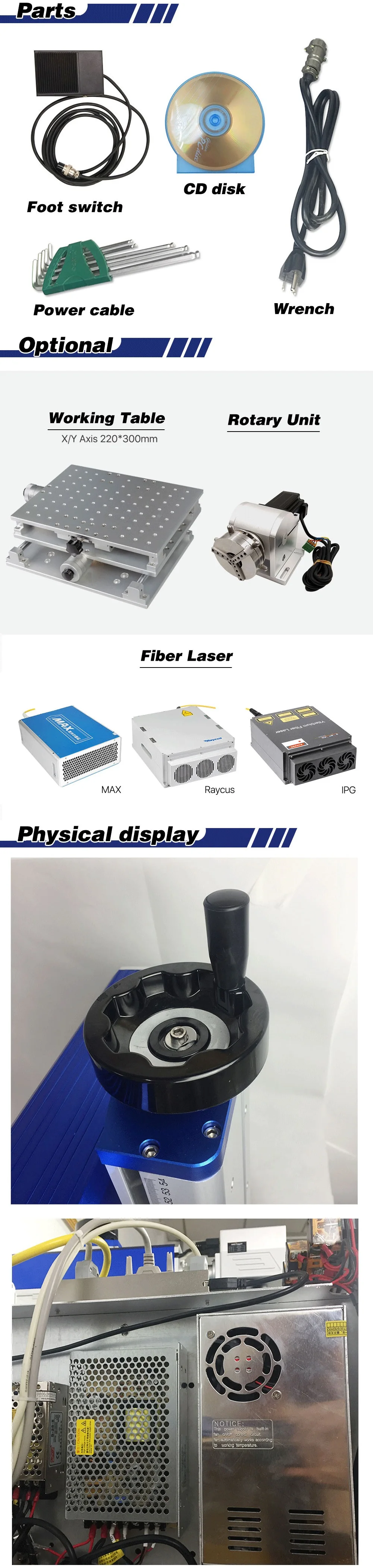

Detailed image

Payment and shipment

Our company

Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of Laser Marking Machine ,Laser Cutting Machine and CNC ROUTER ,Located in Shanghai

Baoshan industrial zone,it has a modern R & D center and manufacturing plant,since it was established ,it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry

Our company mainly products including laser marking machine ,CO2 laser cutting machine and cnc router etc , widely used in metal and non-metal field ,for example hardware ,integrated circuit chips ,

industrial bearings ,variety of auto parts ,hardware tools ,wire and cable ,mould,garment leather and craft gifts etc .in line with our advanced philosophy ,excellent products ,down to earth service,along with our strong R&D and production capacity ,wide social cooperation as well as efforts of our every employee,some machines are exported to the Europe, America, Singapore, Vietnam, India and Bangladesh etc .
