argon gas pressure regulator
- 10000 Piece / Pieces per Month
- Any ports of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
Product Details
| Brand Name: | Yunyi | Place of Origin: | China | Model Number: | YR31 |
Product Description
Description argon gas pressure regulator
YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

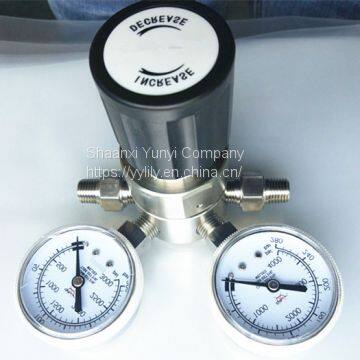

Detailed Images argon gas pressure regulator
Specification argon gas pressure regulator
| Material | 316 stainless steel |
| Max inlet pressure | 6000psi(413.7bar) |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature | ℃(℉):Teflon:66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar ):Teflon:3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
Features argon gas pressure regulator
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Applications argon gas pressure regulator
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide argon gas pressure regulator
Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
YR31 | l 316L | 0-6000psig 0-3000psig 0-1500psig 0-1000psig | 0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig | l With gauge (mpa) l With gauge (psig) l Without gauge | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
