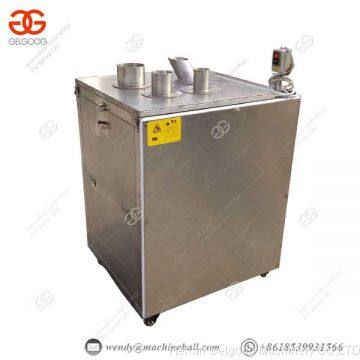

Automatic vegetable slicer industrial fruit cutting machine

Standard Export Wood Pack Machinery

parameter:

device description：

     ★ Open the front door before work, and turn the turntable by hand to see if there is any phenomenon of bumping the tool. If it is, loosen the tightening bolt on the turntable, move the turntable slightly outward and tighten the set bolt. Close the open load switch, start the open button, depending on whether the cutter is running in the correct direction, observe the counterclockwise rotation from the inlet port to be correct, otherwise adjust the power cord, wait until the cutter runs in the correct direction and then test the no-load, no abnormalities in each part. Square test machine

       ★Operation: Try cutting before normal operation, observe whether the specifications and requirements of the cut vegetables are the same. Otherwise, the height of the blade and the turntable should be adjusted (or replaced) for normal work. The thickness of the slice is determined by the gap between the blade and the turntable to achieve dimensional change by adjusting the blade.

The whole machine is made of stainless steel

In addition to the hydraulic part, the equipment is made of food stainless steel as a whole and meets food hygiene requirements.

The high-quality waterproof switch device uses high-quality waterproof switch to control the machine operation and is convenient for operation.

Slice angle adjustable

Thickened stainless steel inlet, the cutting angle can be customized according to requirements.

Product Details：

The multi-energy slicer can process fresh straight root products such as yam, lotus root cassava sweet potato, sweet potato radish banana lemon into flakes. The rotating cutter head has the quality of the cut surface and the product is thick and uniform in size, and the cut surface is fresh and does not damage the fiber structure. At the same time, the machine has high slicing efficiency, convenient operation, low energy consumption and high safety. High efficiency is the ideal equipment for agricultural product processing. The whole machine is made of high-quality stainless steel, which is beautiful in appearance and convenient to clean. It complies with the provisions of the Food Hygiene and Safety Law. The cutter is made of high carbon chromium stainless steel (3Cr13). It has high strength, high hardness, sharp edge and no deformation, and high work efficiency. The cut lotus root slices are smooth, no broken, well formed, high yield, and the thickness can be adjusted freely. The machine has low friction during the cutting process. The temperature of the sputum is low, which is good for preservation.

1. Mainly there are rack rotating cutter head transmission part motor discharge port and other components suitable for medium volume and long cylindrical shape for slicing.

The whole machine is made of high quality stainless steel and aluminum alloy, with high strength, good corrosion resistance, long service life and meets the standards of food industry. 2. This machine is suitable for processing fresh straight root products such as lotus root, yam, radish and banana into flakes. .

3, the structure is simple, sturdy and durable, easy to maintain, the product cut surface is smooth, the product slice thickness can be adjusted; 4, in addition to the inlet and outlet, the rest of the seal structure, the use of clean and hygienic environment. 5, according to user needs to customize a variety of production models of machines, welcome to inquire.
