H 213 H 2313 H 313 H 214 H 2314 H 314 H 215 H 2315 H 315, Adapter Sleeve
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- T/T L/C
You May Like
-
H 216 H 2316 H 316 H 217 H 2317 H 317 H 218 H 2318 H 318, Adapter Sleeve
-
H 219 H 2319 H 319 H 220 H 2320 H 3120 H 320 H 221 H 321, Adapter Sleeve
-
H 222 H 2322 H 3122 H 322 H 3024 H 2324 H 3124 H, Adapter Sleeve
-
51114 51214 51314 51115 51215 51315 52217 52317 52218 52318, Single Double Row Thrust Ball Bearings
-
51116 51216 51316 51117 51217 51317 52420 52220 52320, Single Double Row Thrust Ball Bearings
-
51118 51218 51318 51120 51220 51320 52322 52222 52224 52324, Single Double Row Thrust Ball Bearings
Product Details
| Brand Name: | HPC or Natural or OEM | Place of Origin: | China | Model Number: | H 213 H 2313 H 313 H 214 H 2314 H 314 H 215 H 2315 H 315 |
Product Description

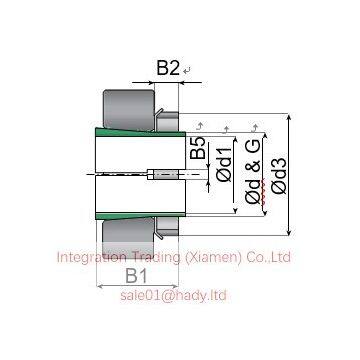

| Principal dimensions | Weight | Accesories included | |||||||
| Part number | d1 | d | d3 | B1 | B2 | G | Locking Nut | Locking Device | |
| Kg | Part Number | Part Number | |||||||
| mm | |||||||||
| H 213 | 60 | 65 | 85 | 40 | 14 | M 65x2 | 0,401 | KM13 | MB13 |
| H 2313 | 60 | 65 | 85 | 65 | 14 | M 65x2 | 0,557 | KM13 | MB13 |
| H 313 | 60 | 65 | 85 | 50 | 14 | M 65x2 | 0,458 | KM13 | MB13 |
| H 214 | 60 | 70 | 92 | 41 | 14 | M 70x2 | 0,593 | KM14 | MB14 |
| H 2314 | 60 | 70 | 92 | 68 | 14 | M 70x2 | 0,897 | KM14 | MB14 |
| H 314 | 60 | 70 | 92 | 52 | 14 | M 70x2 | 0,723 | KM14 | MB14 |
| H 215 | 65 | 75 | 98 | 43 | 15 | M 75x2 | 0,707 | KM15 | MB15 |
| H 2315 | 65 | 75 | 98 | 73 | 15 | M 75x2 | 1,050 | KM15 | MB15 |
| H 315 | 65 | 75 | 98 | 55 | 15 | M 75x2 | 0,831 | KM15 | MB15 |

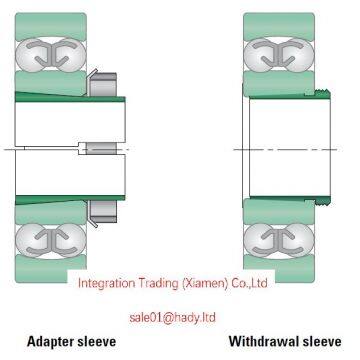

Adapter sleeves are used to locate tapered bore bearings on cylindrical shafts.
This allows less accurate machining of the shafts and ease of location.
Adapter sleeves are available in metric or inch bore sizes - the external taper is
1:12.
See pages from 90100a to 90100m for tolerances.
Hydraulic sleeves are available from 200mm bore diameter. Suffix: OH
Dimensions in accordance with ISO 2982-1995
Details part number:
- Suffixes OH: sleeve
including oil supply
ducts and oil grooves.

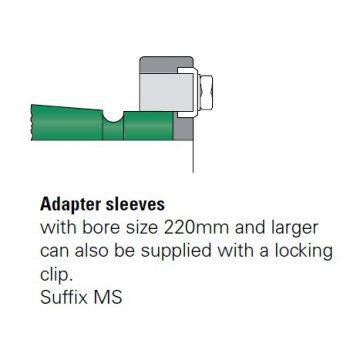

Adapter sleeves
with bore size 220mm and larger
can also be supplied with a locking
clip.
Suffix MS
Contact with us via email sale01@hady.Ltd for detail requirement.
