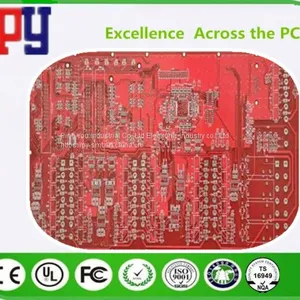

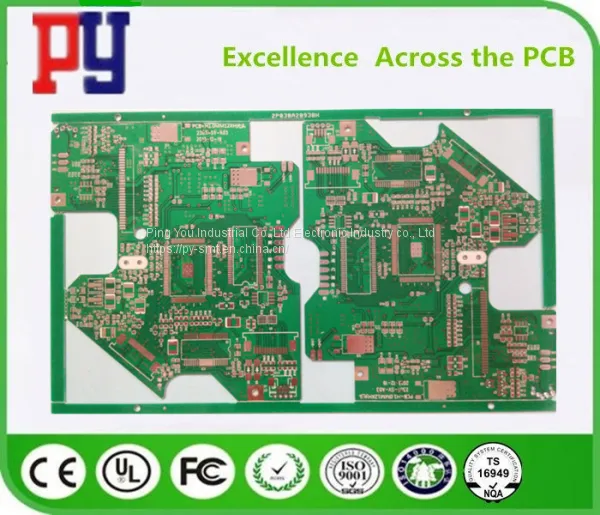

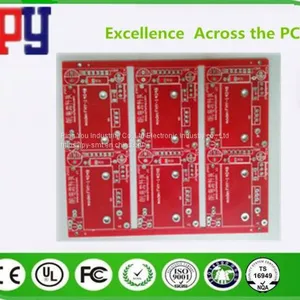

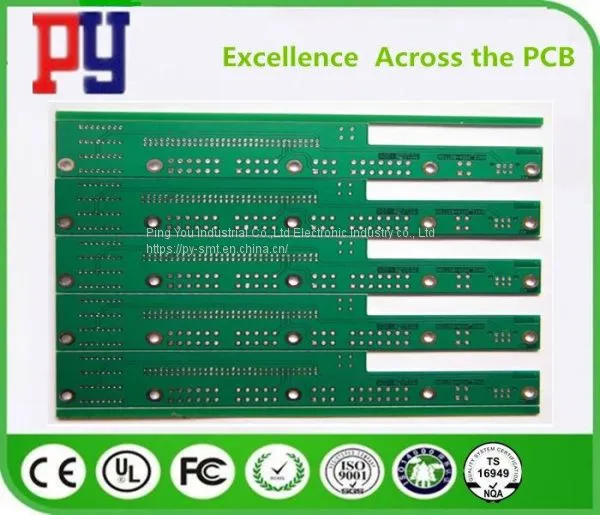

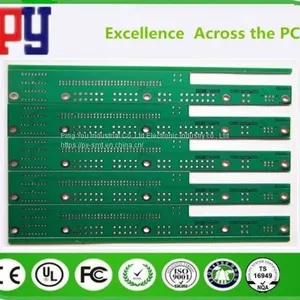

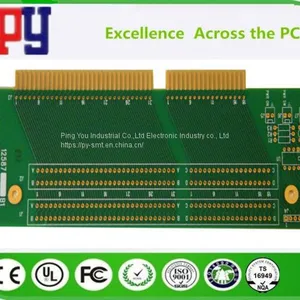

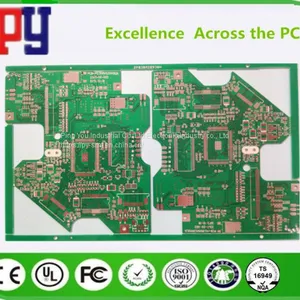

Double Sided PCB
- 10000 Square Meter / Square Meters per Month
- T/T L/C PayPal
Product Details
Brand Name: | py | Place of Origin: | China | Model Number: | Double Sided PCB |
Type: | Other |
Product Description
Applications
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
Capability
High precision prototype | PCB bulk production | ||
Max Layers | 1-28 layers | 1-14 layers | |
MIN Line width(mil) | 3mil | 4mil | |
MIN Line space(mil) | 3mil | 4mil | |
Min via (mechanical drilling) | Board thicknessā¤1.2mm | 0.15mm | 0.2mm |
Board thicknessā¤2.5mm | 0.2mm | 0.3mm | |
Board thicknessļ¼2.5mm | Aspect Rationā¤13:1 | Aspect Rationā¤13:1 | |
Aspect Ration | Aspect Rationā¤13:1 | Aspect Rationā¤13:1 | |
Board thickness | MAX | 8mm | 7mm |
MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
MAX Board size | 610*1200mm | 610*1200mm | |
Max copper thickness | 0.5-6oz | 0.5-6oz | |
Immersion Gold/ | Immersion Gold:Au,1ā8uā | ||
Hole copper thick | 25um 1mil | 25um 1mil | |
Tolerance | Board thickness | Board thicknessā¤1.0mm:+/-0.1mm | Board thicknessā¤1.0mm:+/-0.1mm |
Outline Tolerance | ā¤100mm:+/-0.1mm | ā¤100mm:+/-0.13mm | |
Impedance | Ā±10% | Ā±10% | |
MIN Solder mask bridge | ć0.08mm | ć0.10mm | |
Plugging Vias capability | ć0.25mm--0.60mm | ć0.70mm--1.00mm |
Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
