35KV UL IEC standard Medium voltage xlpe insulated copper cable

FOB Price

USD $5.00 - $15.00 / Meter

5000 Meters(Min.Order)

Supply Ability 500 Kilometer / Kilometers per Month
Port Tianjin port Qingdao port Shang hai port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	RNEDA	Place of Origin:	Hebei, China	Model Number:	URD cable,MV-90,MV-105
Type:	Medium Voltage	Application:	Industrial	Insulation Material:	XLPE

Product Description

Top 10 Cable manufactuer in China.
Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS,SABA certifications.
With TUV TYPE TESTING REPORT.
With ISO9001,ISO18001,OHSAS18001 syetem certifications.
CNAS approval laboratory.
Any question,Contact us.

Product Description

5-35KV MV-105 EPR/PVC Single Conductor Tape Shield Primary UD Power Cable

APPLICATIONS:

URD TRXLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 5kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS:

TRXLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.

- ANSII ICEA S94-649

- AEIC CS-8

- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

- UL1072

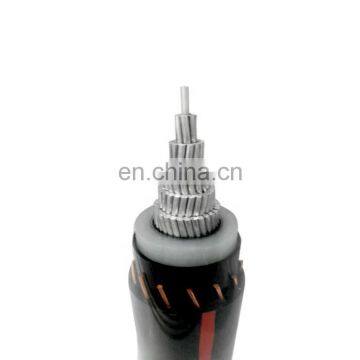

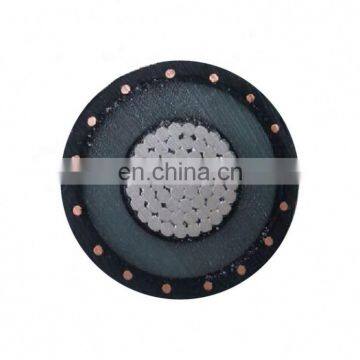

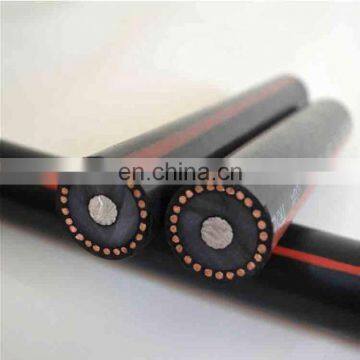

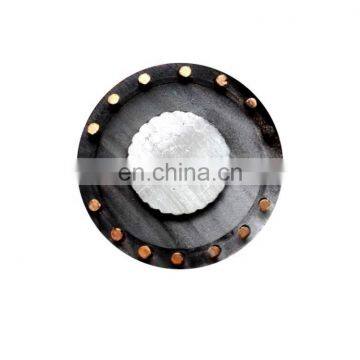

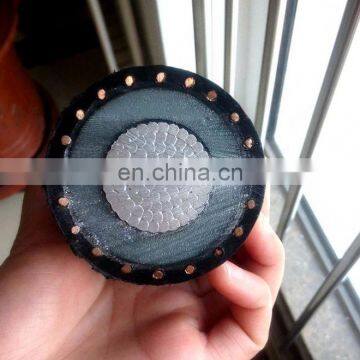

CONSTRUCTION:

Conductor : Bare aluminium or copper, stranded class B compressed stranding

Conductor Shield :Extruded semi-conducting compound

Insulation : TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield : Extruded semi-conducting compound

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)

Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE:

Normal continuous at 90 °C, Overload at 130 °C and Short circuit at 250 °C

FEATURES & BENEFITS, OPTIONS:

- Triple extruded construction by dry curing process guarantees excellent quality of cables

- TRXLPE insulation offers proven superior life span than conventional XLPE cables

- Triplex type is optional, it brings you saving installation cost

- Strand-filled conductor & Water-blocking jacket is available upon request

DATE SHEET

Condctor		Copper Neutral (1/3)		diameter(inch)						Weight (Pounds)
AWG orMCM	Stranding	Number of Wires	SizeAWG (Solid)	Conductor	Over Insulation	Over Insul. Shield	Over Neutral Wires	Over Encaps. Jkt.	Conductor	Concentric Neutral	TotalNo Jacket	Total WithJacket
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46	325.8	119.2	659	4926
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50	410.9	146.3	775	808
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59	518.1	185.9	900	923
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71	653.3	228.0	1110	1055
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81	771.9	282.1	1330	1292
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89	1081	398.0	1633	1519
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04	1544	543.5	2002	1886
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28	2316	801.5	2650	2289
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43	3088	1058	3847	2960

Packaging & Shipping

Company Information

Hebei Huatong Wires and Cables Group Co., Ltd. was established in 1993. Yearly export amount more than 300million.We own more than 420 sets manufacturing equipment and 250 sets of testing equipment or apparatus. And with CNAS accredited national level laboratory.Our annual production capacity is 5 billion Yuan.We have 1200 employers, among which 150 are technicians. Based on the scientific management, now we are a comprehensive, large-scale enterprises in wire and cable industry.Voltage up to 35KV, including XLPE power cables,PVC power cables, mining cables, rubber cables for general purpose, Submersible oil pump cables, solar cables, shipboard cables,lead sheath cables, aerial cables, control and instrument cables, special cables etc.Products are exported to USA, Australia, Singapore, Europe, South America, Middle East, Asia, Africa and soon.

Laboratory

CNAS accredited national level laboratory.

Our Services

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback. Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

FAQ

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
