Home > Products > ESP/SUBMERSIBLE OIL PUMP CABLES > 3X4awg Cu Rubber Submersible Oil Pump Cable
3X4awg Cu Rubber Submersible Oil Pump Cable
- 500 Kilometer / Kilometers per Month
- Tianjin port Qingdao port Shang hai port
- T/T Credit Card
Product Details
Brand Name: | RNEDA | Place of Origin: | Hebei, China | Model Number: | ESP Cable |
Insulation Material: | Rubber | ||||
Conductor Material: | Copper |
Product Description
Top 10 Cable manufactuer in China.
Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS,SABA certifications.
With TUV TYPE TESTING REPORT.
With ISO9001,ISO18001,OHSAS18001 syetem certifications.
CNAS approval laboratory.
Any question,Contact us.

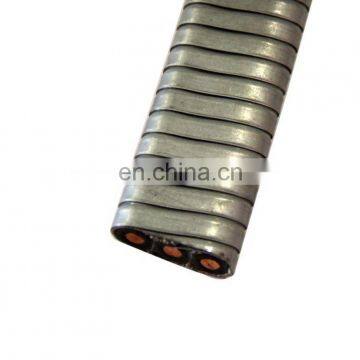

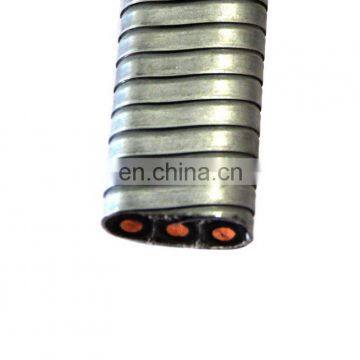

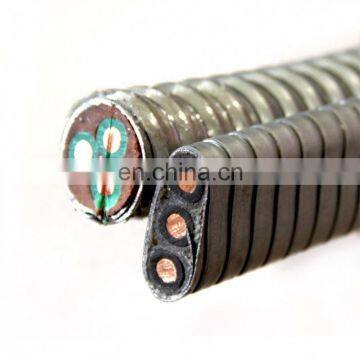

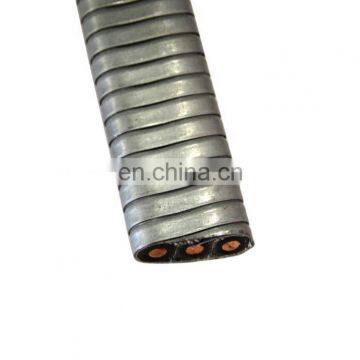

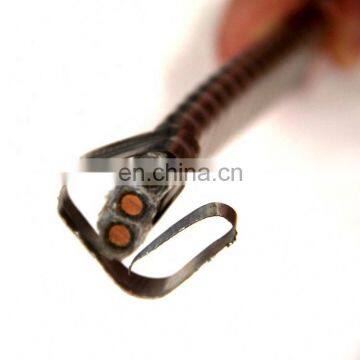

3X4awg Cu Rubber Submersible Oil Pump Cable
Conductor: Solid, bare copper per ASTM B3
Insulation: • The insulation is a specially compounded, oil resistant EPDM rubber with proven electrical properties
Jacket: • An oil resistant nitrile jacket is used to protect insulation and provide protection due to gas, heat and pressure
Barrier: • Bedding tape to protect the jacket. Rubber infused/ woven fabric
Armor: • Interlock profile, corrosion resistant galvanized steel. Double armor may be supplied where extra protection is required Option: • Stainless steel armor for increased protection in wells high in H2S and CO2 • Monel armor for maximum protection in wells extremely high in H2S and CO2
Industry references:
Industry standard:
• IEEE 1018
• API RP 11S6
• ASTM A459
• ASTM B3
• ASTM D412
Parameters:
6KV Type
AWG No. | Cross-section (Approximation) mm2 | Conductor No./diameter mm | Insulation Thickness mm | Sheath Thickness mm | Overall Dimensions mm×mm | Reference weight kg/km |
1 | 3×42.4 | 1/7.35 | 2.3 | 1.0 | 16×47 | 3850 |
2 | 3×33.6 | 1/6.54 | 2.3 | 1.0 | 15×45 | 3320 |
4 | 3×21.1 | 1/5.19 | 2.3 | 1.0 | 14×40 | 2730 |
5 | 3×16.8 | 1/4.62 | 2.3 | 1.0 | 13×38 | 2410 |
6 | 3×13.3 | 1/4.12 | 2.3 | 1.0 | 12×36 | 2100 |
7 | 3×10.6 | 1/3.60 | 2.3 | 1.0 | 11×34 | 1790
|
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.
CNAS accredited national level laboratory.
1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback. Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
