0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable

0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-1
0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-2

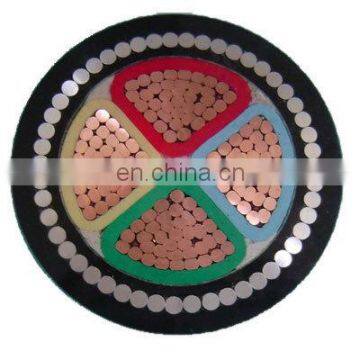

0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-3

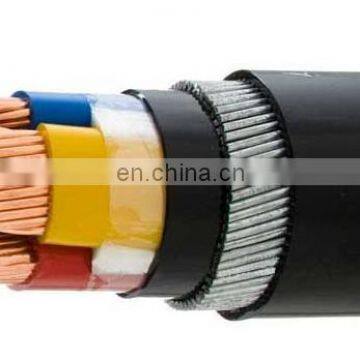

0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-4

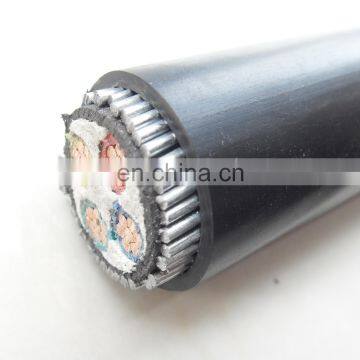

0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-5

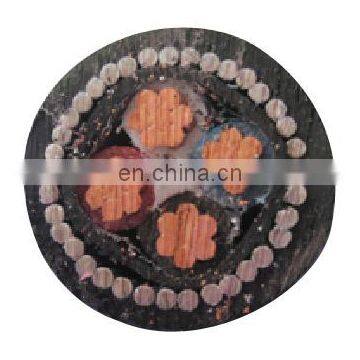

0.6/1KV 4 Core 25mm2 35mm2 Copper Wire Underground Armored Power Cable photo-6
US$ 0.1 - 60 MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
RNE DA
Place of Origin:
Hebei, China
Model Number:
VV32
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port Qing dao port Shang hai port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name RNE DA
Place of Origin Hebei, China
Model Number VV32
Type Low Voltage
Application Construction
Jacket PVC
Conductor Material Copper



Product Description

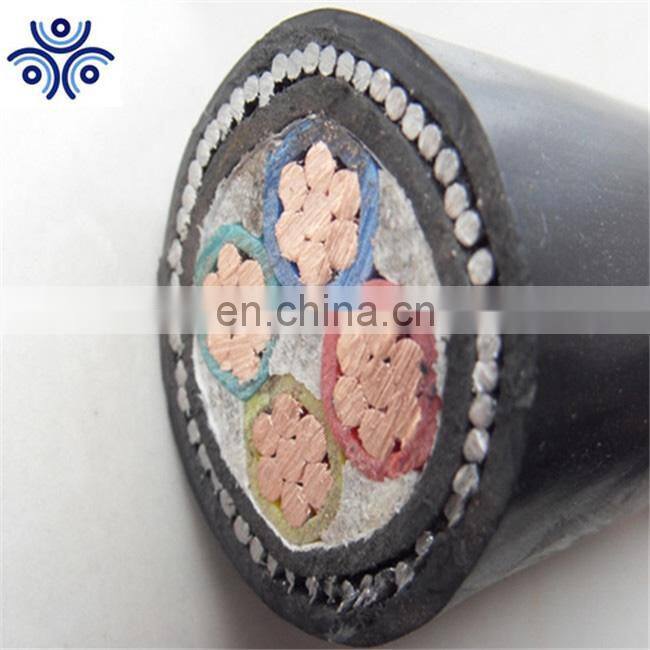

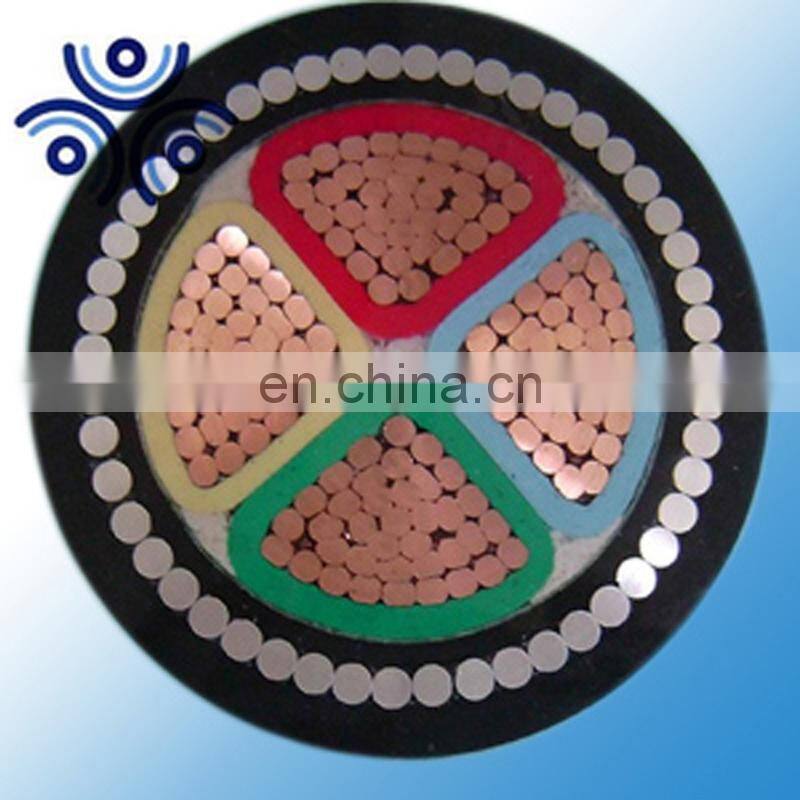

0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable



 1 Applicant:

The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).The factory can also manufacture the products that are based on British Standard(BS) and other standards.In addition,under the requirement of customers we can design and manufacture the products that have special performance.The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.



2 Construction:

a Number of cores:

1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.

b Structure:

Conductor: Solid or stranded copper
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

c Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

d  feature

1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70℃
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160℃

4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

3 Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.



4 Type and Name:



Type

Name



Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable

VY VLY

Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable

VV22VLV22

Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable

VV23VLV23

Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PE Sheathed Power Cable

VV32 VLV32

Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable

VV33VLV33

Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable

VV42VLV42

Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PVC Sheathed Power Cable

VV43VLV43

Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PE Sheathed Power Cable





 0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable

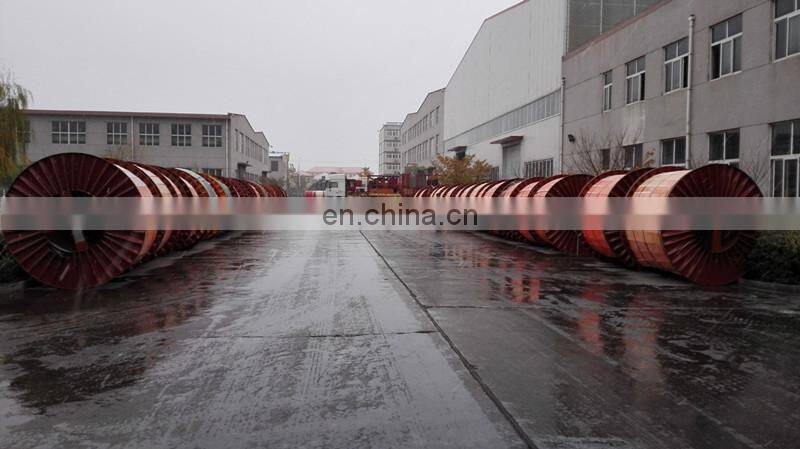

Packaging & Shipping

Standard export drum,500meters/rdum,1000meters/drum or as your requirment.

0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable

 0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable

Certifications

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate.

0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable



laboratory

Our laboratory center are authorized by both of ILAC (International Laboratory Accreditation Cooperation)&CNAS(China National Accreditation Service for Conformity Assessment), so the testing results in our labs can be accepted by the international countries belong to the above organizations.

0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable

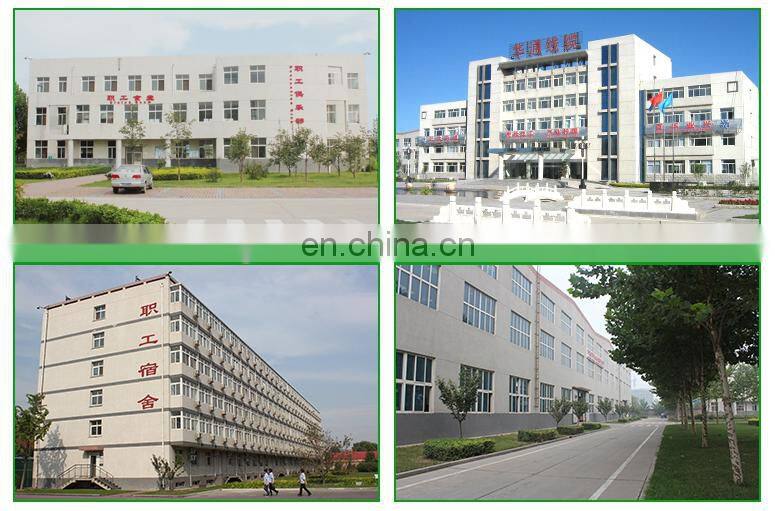

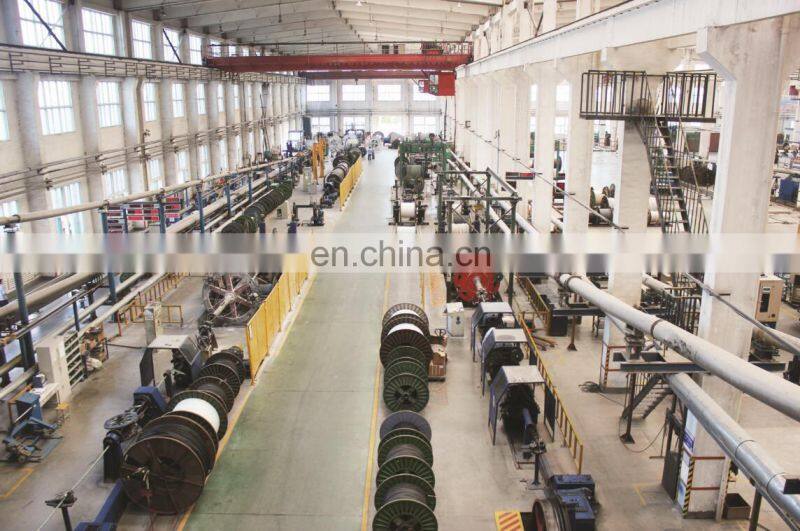

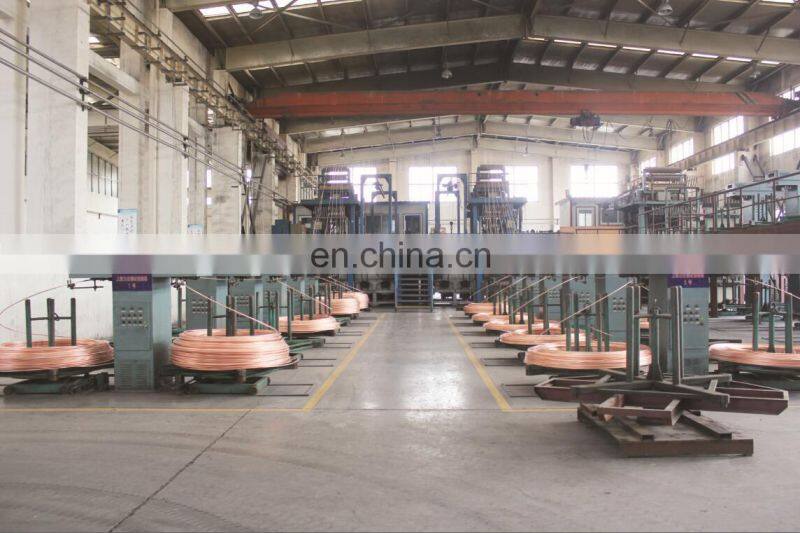

Company Information

 Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 1500 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable



0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable



0.6/1KV 4 core 25mm2 35mm2  Copper Wire Underground Armored Power Cable

Our Services

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

FAQ

1.How many year have our factory producing power cable?

Our factory produce power cable for 22 years.

2 Hong Long time the customer can get the new price after get your inquiry?

 Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.

3.Which port our factory is near to?   Tianjin port

4.Which payment term do we accept?

 T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.

5.What about the package for our power cable?

 It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.

6.How long meter power cable for one wooden drum?

  This is according to power cable's diameter and customer's requirments.

7.How about our delivery time?

  According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.

8.Do we provide sample for free?

  Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
