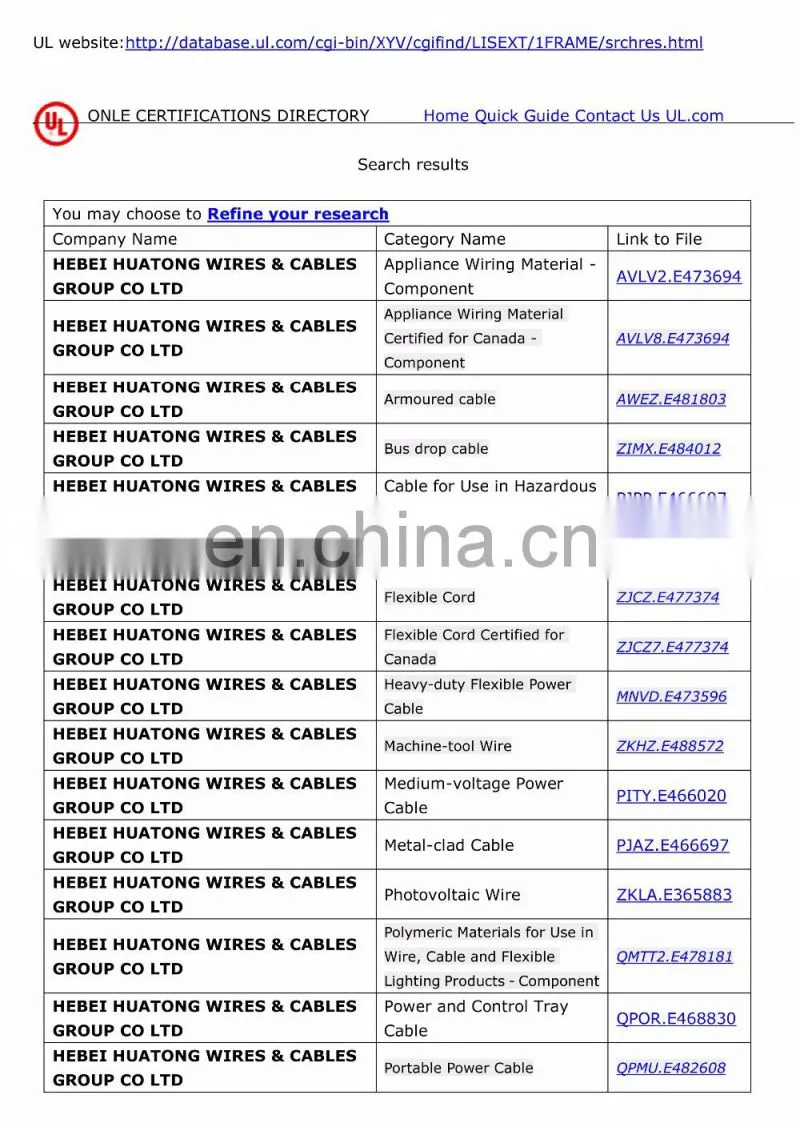

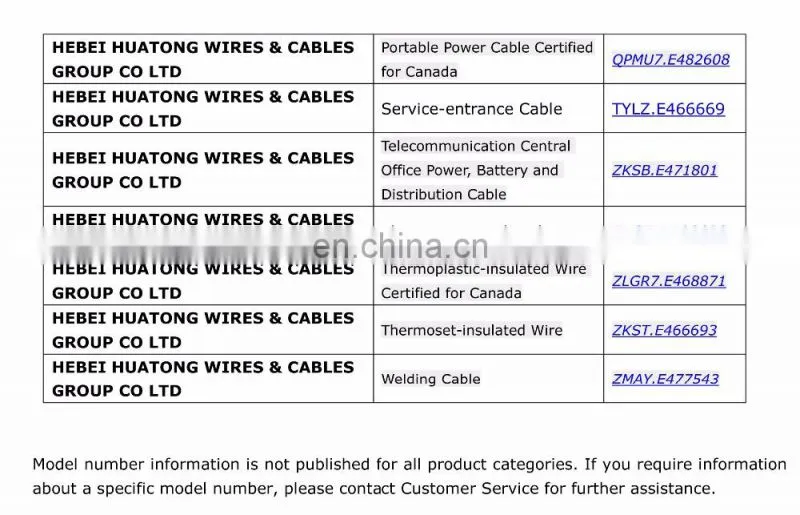

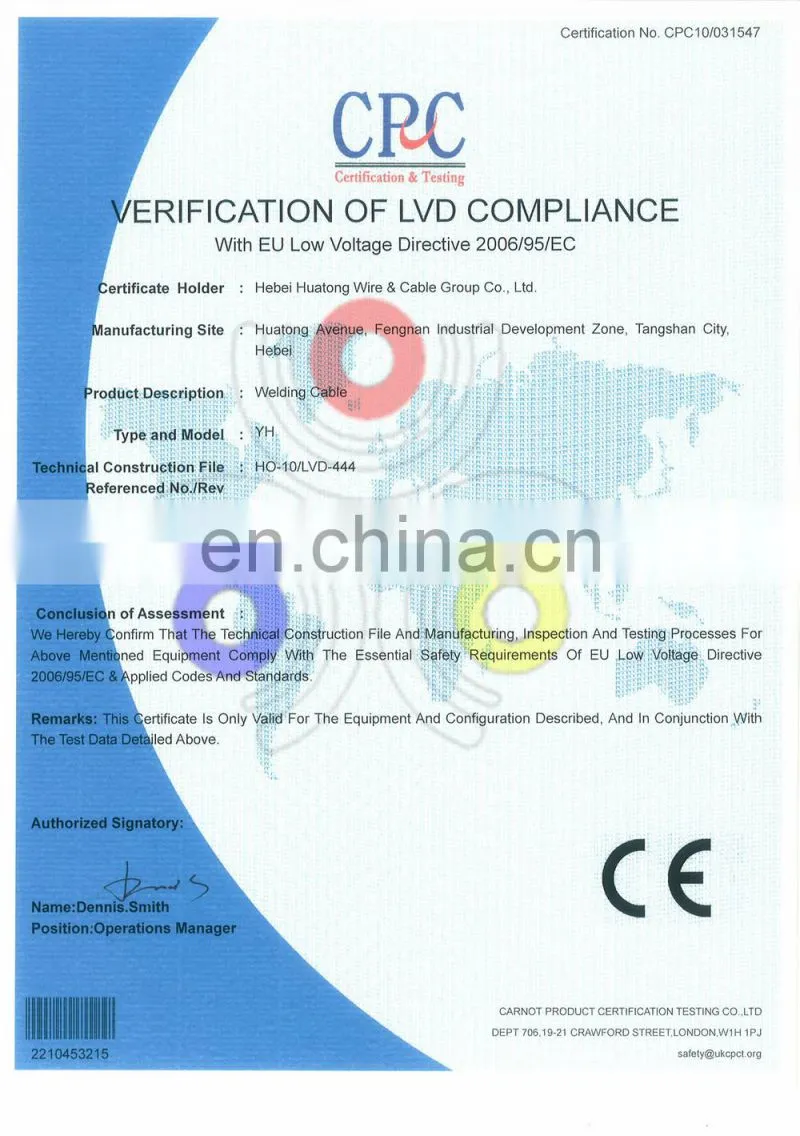

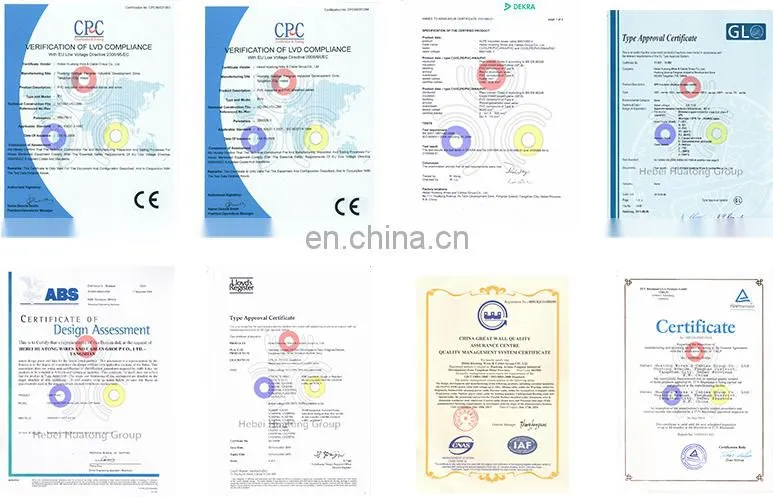

With UL,TUV,KEMA,CE,BV,PSB,SABS,GL,NK,KR,ABS ..products certifications

ISO9001,ISO14001,OHSAS18001 system certifications

With authorities testing report

CNAS approval laboratory

Product Description

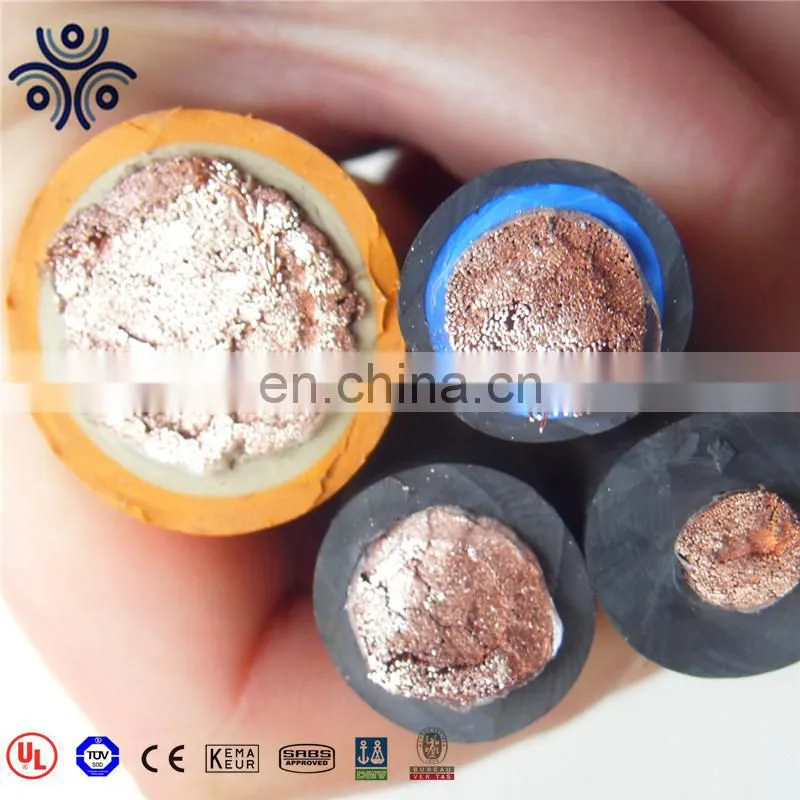

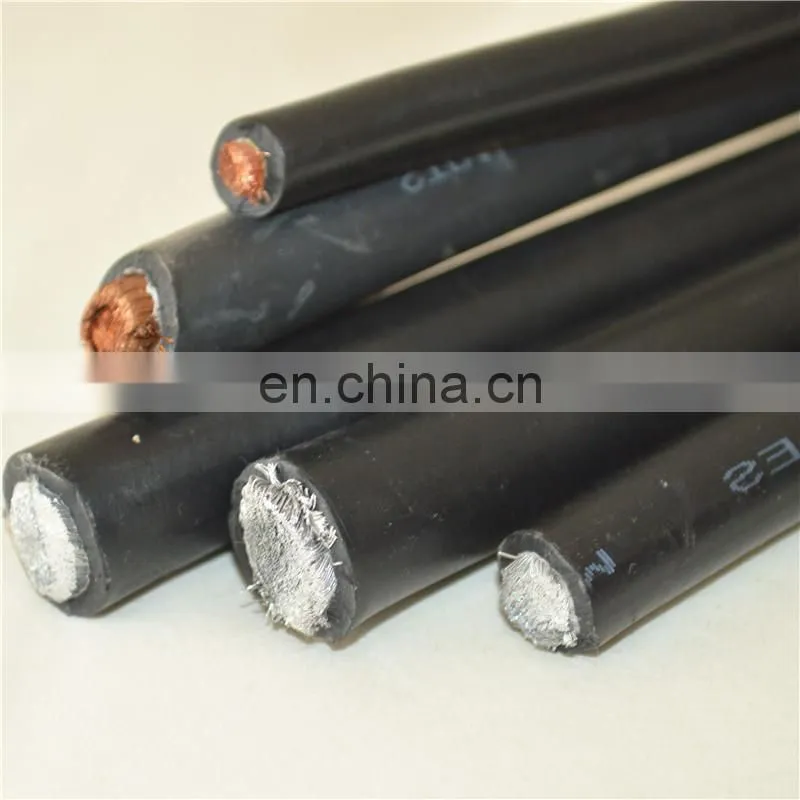

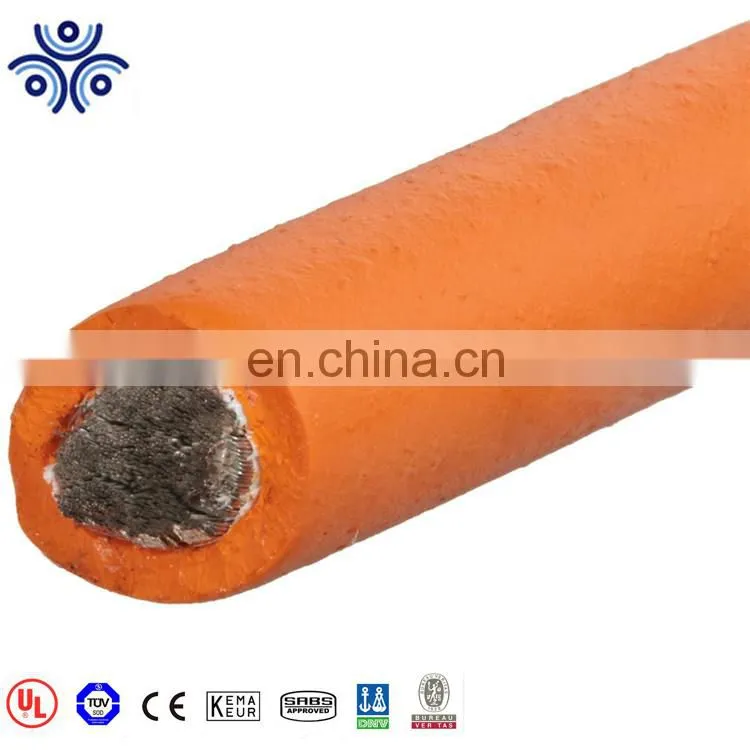

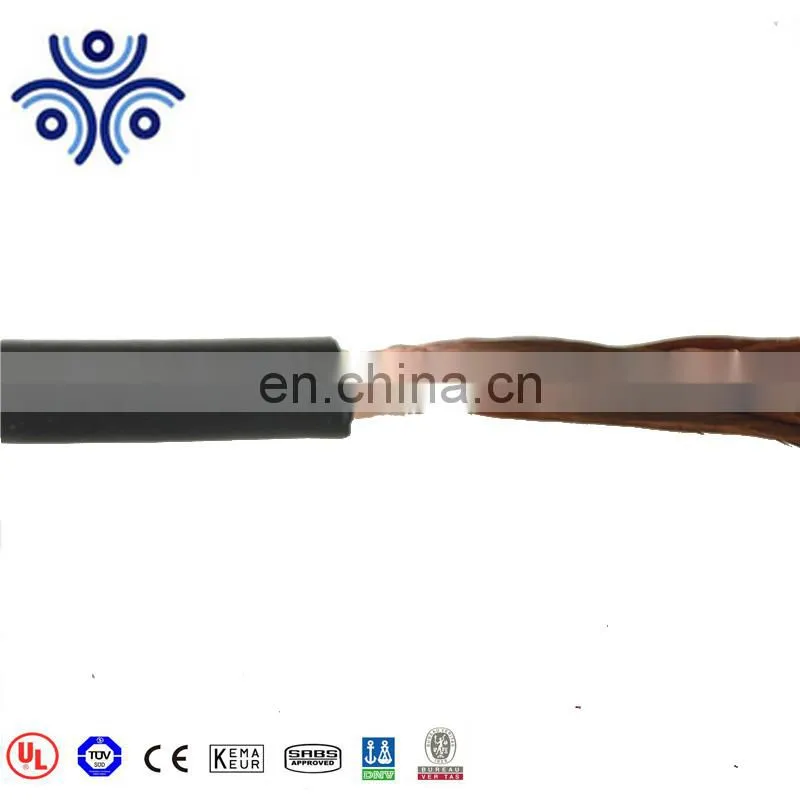

Welding cable:

1.Standard

UL1276 or standard 245 IEC 81,ICEA S-75-381

 2.Specific Property for Using

(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.

3 .Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.

 4. Conductor Materials: Copper, Tinned Copper

 5. Jacket: Rubber

 6. Applications: For Welding Machines and so on

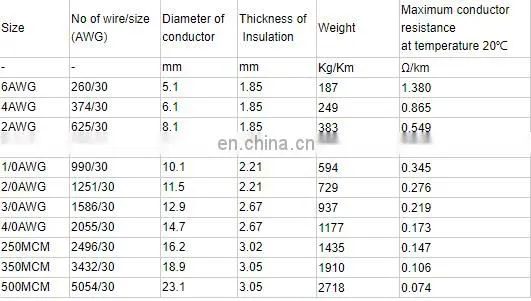

 7.The general data of the cable

APPLICATION:Designed as secondary voltage resistance welding cable leads, Battery cables, Temporary power uses, Power supply applications not exceeding 600V AC.

UL1276

CONSTRUCTION:

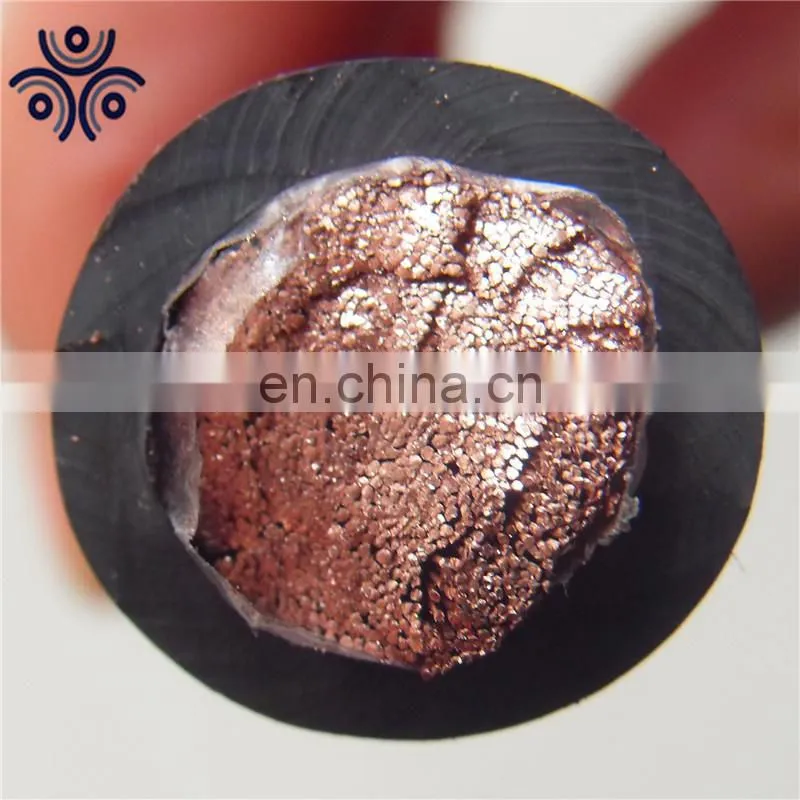

CONDUCTOR: 6 AWG- 500Kcmil Stranded bare copper flexible, fully annealed, Class K, Bare-copper.

INSULATION: Ethylene Propylene Diene Monomer EPDM

COLOR: Black

PHYSICAL PROPERTIES:

TEMPERATURE RANGE: -40°C to 90°C Dry, 90°C Wet Oil and Water Resistant Non-Marking Jacket, Lightweight & Very Flexible at Low Temp.

ELECTRICAL PROPERTIES:

VOLTAGE RATING: 600V rms, Maximum

INDUSTRY APPROVALS: ASTM B-172, National Electrical Code 630, ROHS

Features:

• EPDM insulation provides outstanding cut, abrasion and slag resistance

• Resistant to oil, chemicals, water, ozone, & solvents

• Red & black jacket

• Other colors available upon request

245 IEC 81 and 245 IEC 82
