With TUV test report CE certificate 0.6/1kv cu/xlpe/swa/pvc power cable
- 10000000 Meter / Meters per Month
- Tianjin port Qingdao port Shang hai port
- T/T Credit Card
-
150mm2 xlpe insulated copper cable price per meter
-
6.6kv copper /aluminum xlpe cable 185mm
-
Low voltage xlpe aluminum cable 240mm2
-
Export Mongolia 10KV 3 core 240mm2 xlpe insulated steel tape armoured PE sheathed power cable YJLV23
-
Hot Sale Mongolia 10KV 3 core 240mm2 xlpe insulated steel tape armoured PE sheathed power cable YJLV23
-
Hot Sale Mongolia 10KV 3 core 240mm2 xlpe insulated steel tape armoured PE sheathed power cable YJLV23
Product Details
Brand Name: | RNEDA | Place of Origin: | Hebei, China | Model Number: | xlpe insulated cable NYY NAYY N2XY NA2XY |
Type: | Low Voltage | Insulation Material: | XLPE | Jacket: | PVC |
Product Description

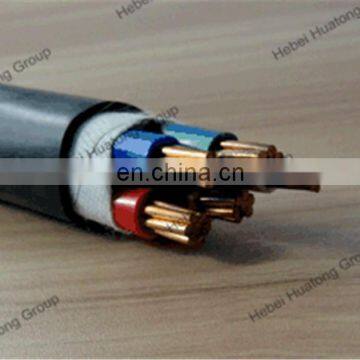

With TUV test report CE certificate 0.6/1kv cu/xlpe/swa/pvc power cable
WITH UL,TUV,KEMA,CE,BV,PSB,SABA CERTIFICATIONS

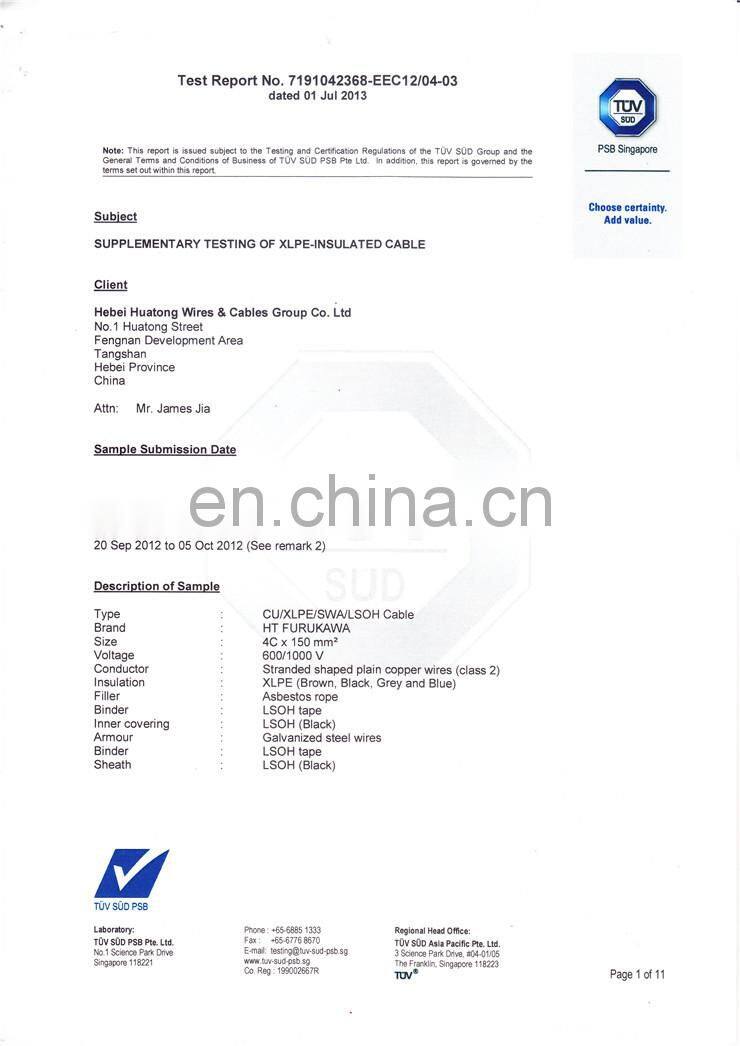

WITH TUV TYPE TESTING REPORT
ISO9001,ISO18001,OHSAS18001

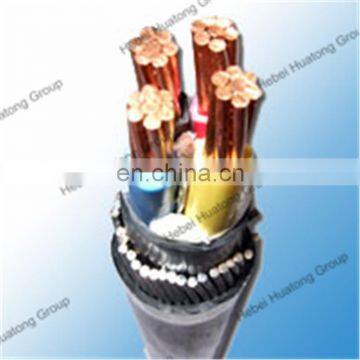

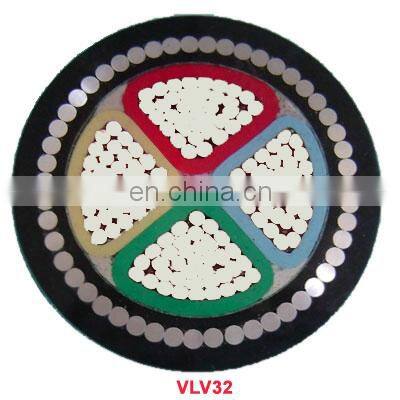

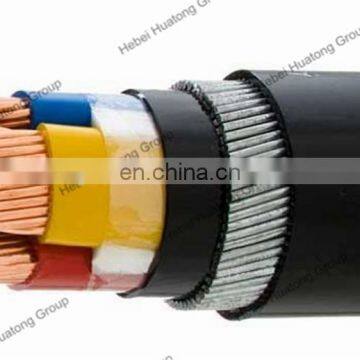

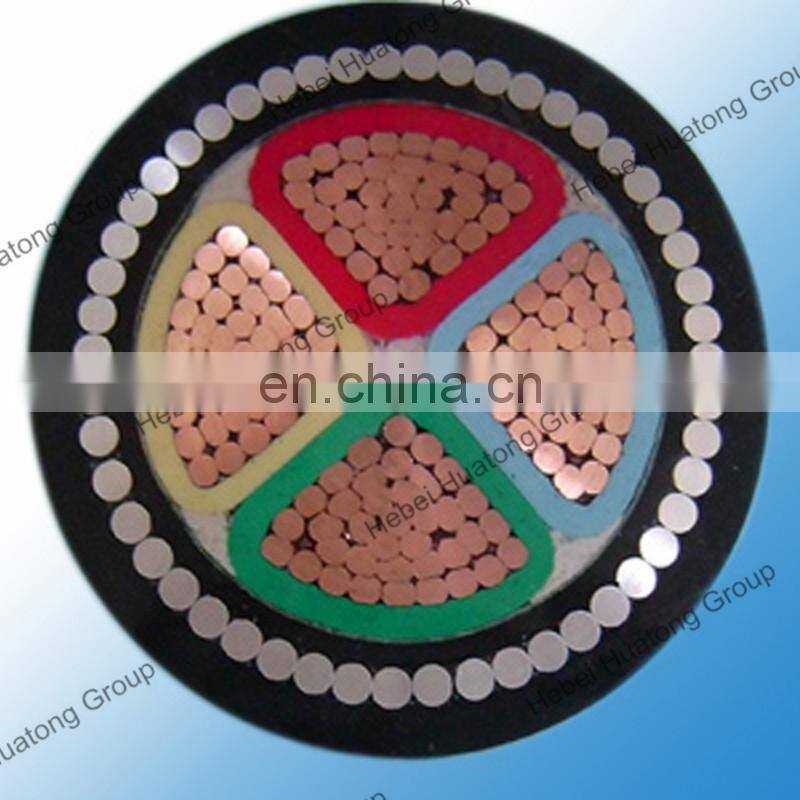

Xlpe Insulated Power Cables Structure
Conductor: Solid or stranded copper/Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)
Sheath: Polyvinyl chloride (PVC)
a, Number of cores:
1, 2, 3, 3+1, 3+2, 4, 4+1, 5 and so on.
b, Construction:
Stranded copper conductor for single and shaped conductors for multi-core cables, XLPE insulated, PVC bedding, AWA/SWA/STA armored and PVC sheathed cables.
c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630
d,Rated voltage
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Xlpe Insulated Power Cables
1.Product Standard
This product is manufactured according to GB/T12706 (eqvIEC60502), GB/T18380-2001(eqv. IEC60332),GB/T19216 (IEC60311) and /or the BS, DIN and/or other types of international standards.And we also design and produce cables according to the requirement of our clients.
2.Application
1,Long term working temperature for the cable with PVC insulated is 70℃;
Long term working temperature for the cable with XLPE insulated is 90℃
2,Short circuit temperature
For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).
For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).
3,Laying temperature not less than 0℃ and the drop height is out of consideration.
4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.
5,Easy for installation, easy bending and light
6,Bending ratio:
Item | Single core | Three cores | ||
Non armor | With armor | Non armor | With armor | |
Min bending radius during installation | 20D | 15D | 15D | 12D |
Near joint box or cable terminal, bending with care and use templet | 15D | 12D | 12D | 10D |
Note:D is the diameter of cable |

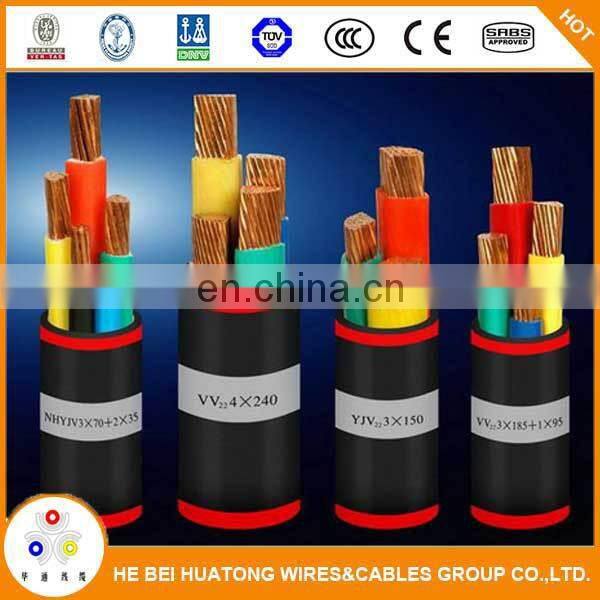

3.Name,type and application.
Type | Designation | Applications |
YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |

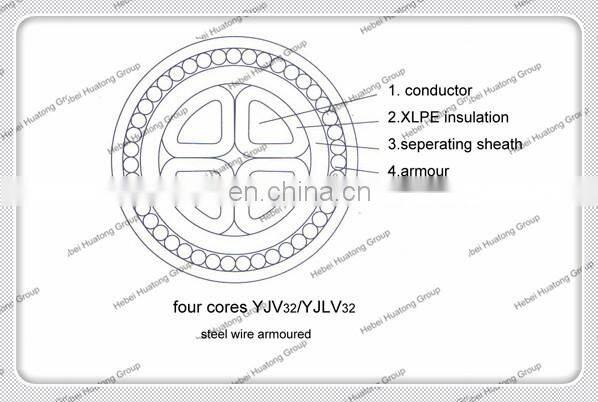

YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cab |
With TUV test report CE certificate 0.6/1kv cu/xlpe/swa/pvc power cable

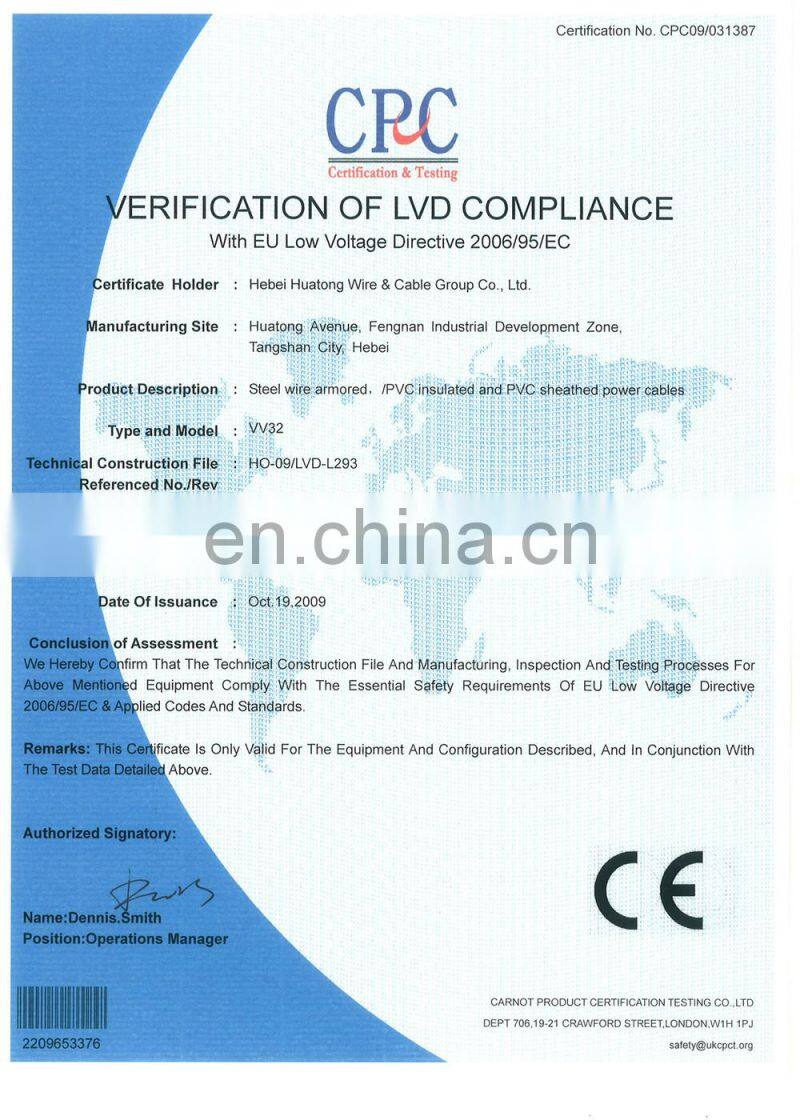

We have got the certificate of UL,CE,KEMA,TUV,Lloyd and“National Industrial Production License”, “Certificate of Recommended Enterprises and Products for National Grid”, “Adopting International Standard Certificate”, and “High-Tech Enterprise Certificate”, “Certificate of High Quality Products”, “Certificate of Scientific and Technological Achievements”, “Qualified Supplier Certificate”, “China Classification Society Certificate of Works Approval”, “Det Norske Veritas Type Approval Certificate”, “Railway Product Certificate”, “Safety Certificate of Approval for Mining Products”, “National Mandatory Product Certification”, “Certificate for China Compulsary Products Certification” and “Practical New-Type Patent Certificate”.
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
