ASTM Standard 2 x 25 Mm2 Overhead Stranded Conductor ABC Cable

ASTM Standard 2 x 25 Mm2 Overhead Stranded Conductor ABC Cable photo-1
ASTM Standard 2 x 25 Mm2 Overhead Stranded Conductor ABC Cable photo-2
US$ 0.2 - 55 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RNE DA
Place of Origin:
Hebei, China
Model Number:
abc cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port Qingdao port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name RNE DA
Place of Origin Hebei, China
Model Number abc cable
Type Low Voltage
Application Overhead
Conductor Material Aluminum



Product Description

  ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable





Professional OEM manufacturer







Top ten cable manufactuer in China







WITH UL,TUV,KEMA,CE,BV,PSB,SABA CERTIFICATIONS







WITH TUV TYPE TESTING REPORT







ISO9001,ISO18001,OHSAS18001



Aerial Bundled Cable, ABC Cable, Overhead cable

Voltage:0.6/1kV

Cores:1, 2, 3, 4, 5, 6

Range of Nominal cross section:10 mm2 - 300 mm2



Application:

A new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line.

StandardNF C 33-209, IEC, BS, SABS, ASTM

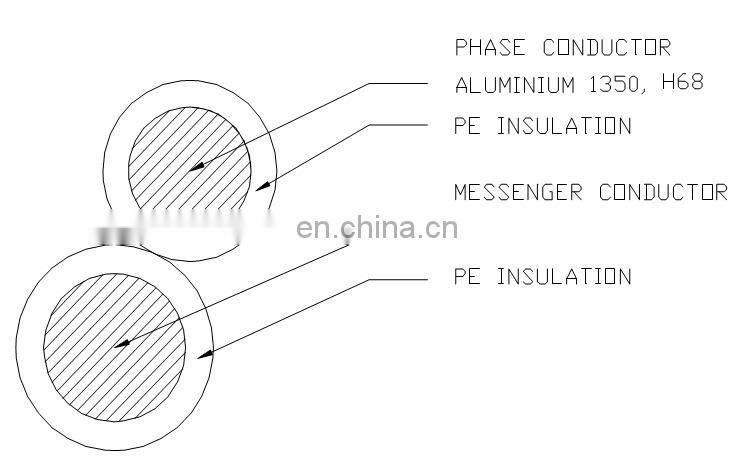

Construction

Conductor:Aluminum, Alloy Aluminum, ACSR

Insulation:XLPE, PE

Size:

2 x 16 mm2

3×25 mm2+54.6 mm2+16 mm2

2 x 25 mm2

3×35 mm2+54.6 mm2+16 mm2

2 x 35 mm2

3×50 mm2+54.6 mm2+16 mm2

2 x 50mm2

3×70 mm2+54.6 mm2+16 mm2

4 x 16 mm2

3×70 mm2+70 mm2+16 mm2

4 x 25 mm2

3×95 mm2+70 mm2+16 mm2

4 x 35 mm2

3×120 mm2+70 mm2+16 mm2



Max. Operating Temperature:90 ℃

Packing:Steel drum or as per requirement

Production Capacity:10 kilometer / day

MOQ:500-1000 meters for 6.35/11kV cable, 500 meters for other voltage

Delivery time:10 - 15 working days

Remark:The cable can be of flame retardance, fire resistance, environment friendly or other property

 ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cableASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

Detailed Images

 ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cableASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

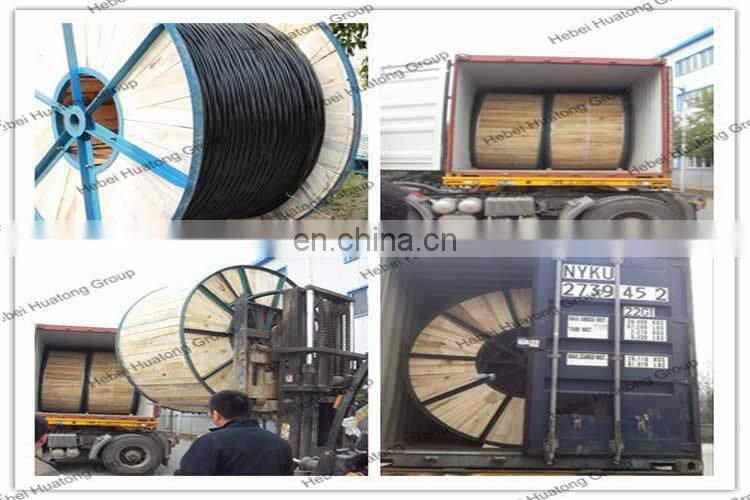

Packaging & Shipping

ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

Company Information



HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese

company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cableASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

Office

ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

Certification



We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC

DIN ASTM, JIS, NF, AS/NZS CSA GOST and so onAt thte same time, we have obtained

ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR

certificates. ASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cableASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cableASTM standard 2 x 25 mm2 Overhead stranded conductor ABC cable

Our service
1. 22 years production experience and 13 years export experience.
2.High-end Machinery and equipment for high quality cable.
3.Manufacture various of cable:power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4.Products certification:UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV;System ceryification:ISO9001,ISO14001,OHSAS18001
5.Our product sells all over the world and has the good reputation.
6.Professional teamwork service for you actively.
7.Quick solution and long time online time waiting for your inquiry.
8.Repid delivery and feedback.
9.We can do that you except.

FAQ

 (1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
