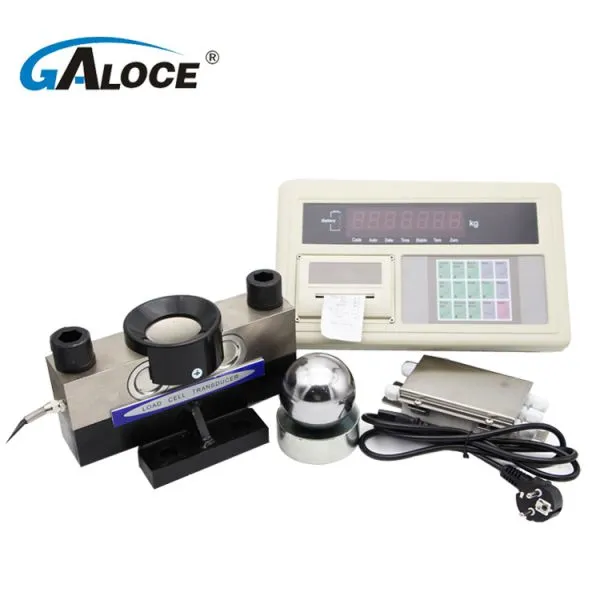

GBS800 Weighbridge Truck Scales Weighing Sensor 30t
- 1000 Piece / Pieces per Month
- Xi'an or any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 20 days
- GWM400 100t Stainless Steel Industrial Compression Hopper Scale Weighing Module
- GWM200 5T weighing module load cell for hopper scale
- GWM700 column type load cell weighing module 1 ton 100 ton
- GWD200 LCD Digital Wireless Dynamometer Crane Scale Load Cell 150 ton
- GWM200 500kg 1000kg 2000kg weighing module for tank silo mixer
- GWD300 Digital wireless 3 ton crane scale load cell
Product Details
Brand Name: | GALOCE | Place of Origin: | China | Model Number: | GBS800 |
Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description
GBS800 Weighbridge Truck Scales Load Cell 30t
What is Features of GBS800 Load cell?
Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.
What is Specifications of GBS800 Load cell?
Parameters: | ||
Range : 5, 10, 15, 20, 25, 30, 40t | ||
Precison : C2 C3 | Compensated temp. range: -10~+40℃ | |
Sensitivity: 2.0±0.002mV/V | Operating temp.range: -30~+70℃ | |
Zero balance : ±1.0%F.S | Safe overload : 150%F.S | |
Temp. effect on span: ±0.02%F.S/10℃ ±0.03%F.S/10℃ | Ultimate overload : 200%F.S | |
Temp. effect on zero: ±0.02%F.S/10℃ ±0.03%F.S/10℃ | Excitation voltage : 10~12VDC | |
Input resistance : 750±10Ω 750±3Ω | Maximum excitation: 15VDCD | |
Output resistance : 700±5Ω 702±3Ω,703±5Ω(L≥15m) | Defend grade : IP68 | |
Insulation resistance : ≥5000MΩ | Construction: Alloy steel or Stainless steel |

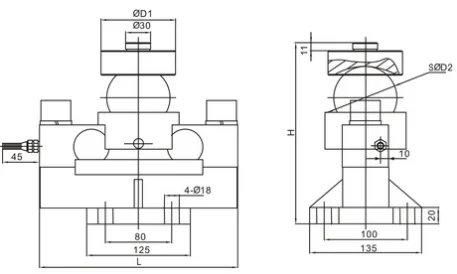

What is Dimension of GBS800 Load cell?
Rated Load(t) | 5 | 10,15,20,25,30 | 40 |
D1 | 68 | 85-88 | 88 |
D2 | 50.8 | 76.2 | 76.2 |
H | 168.8 | 224.7 | 230.7 |
L | 224 | 240 | 240 |

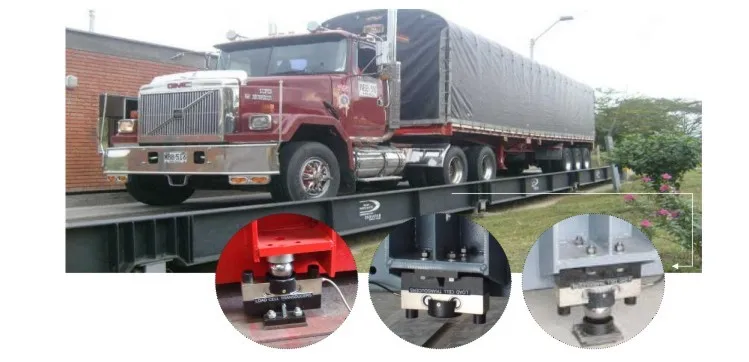

What is Application of GBS800 Load cell?

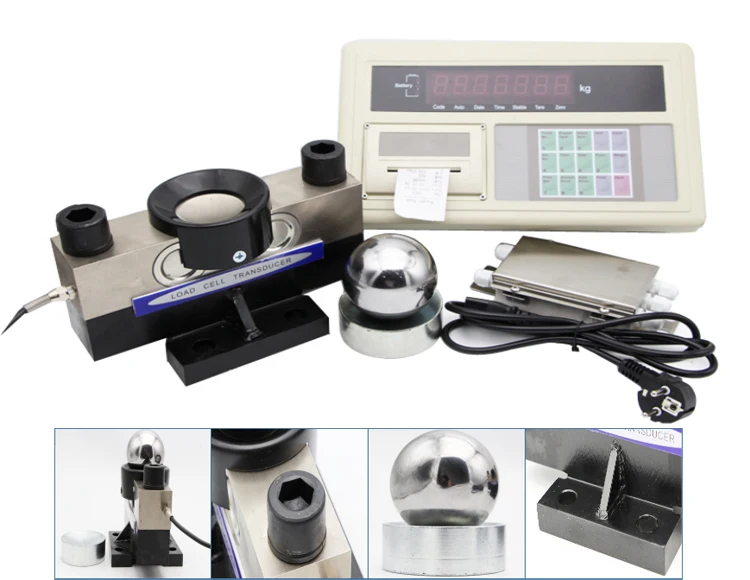

What is Detailed image of GBS800 Load cell?
What is Fashion sets of GBS800 Load cell?
What is Process flowcharts of GBS800 Load cell?
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
