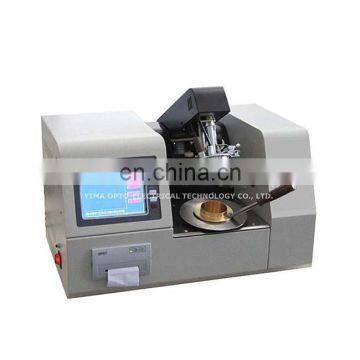

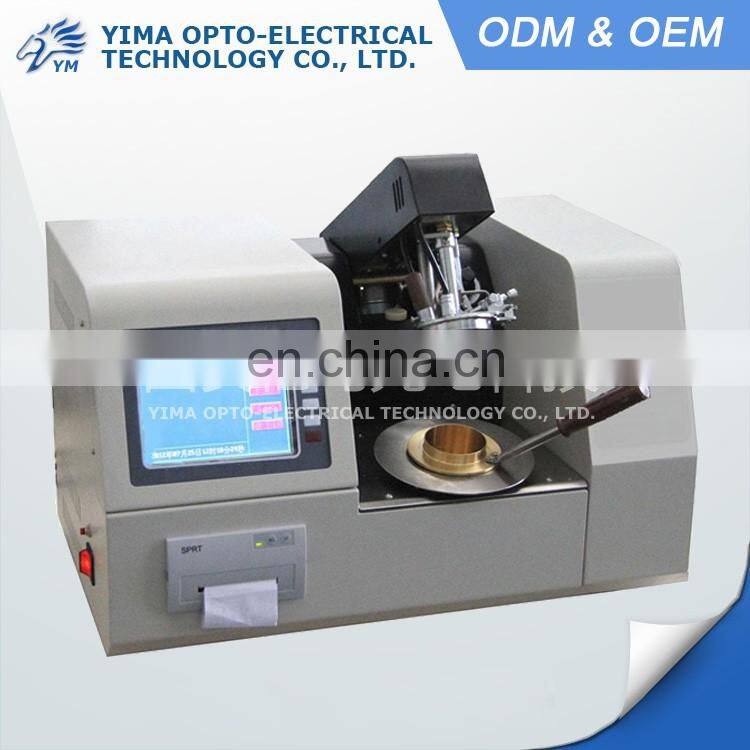

IO001 Automatic closed cup flash point tester

IO001 Automatic closed cup flash point tester

Brief introduction

The provisions of this instrument is suitable for according to the standard, the method of determination of flammable liquid, with suspended particles of liquid, under the condition of the test surface tends to film-forming liquid and other flash point, can be widely used in petroleum industry, railway, aviation, electric power, universities and research institutes and other departments.

This instrument is suitable for the sample of the flash point is higher than 40 ℃.

Features

1. Using color LCD screen displays, touch-screen keyboard, the man-machine dialogue interface in Chinese, flash point, the sample label, atmospheric pressure of expectation, date of test parameters, such as has prompted for menus and oriented type works.

2. Simulated track display temperature and test the function curve of time, with functions of wrong operation in Chinese software prompts, can modify the test date, test parameters, such as time.

3.Equipped with a standard 232 computer interface (can be an external USB), can store 10 screen, 120 groups of historical data, connected to the computer is great capacity data storage and can be long-term preservation.

4.Automatic correction to test the effect of atmospheric pressure and calculate the revised.

5.Differential detection, automatic deviation correction system.

6.Warming, open, ignition, testing and print data automatically, automatic test arm rise and fall.

7.Electronic ignition, do not need to supply air.

Technical parameter

1.The working power supply: AC (220 + / - 10%) V, 50 hz;

2. Temperature measuring range: at room temperature to 300 ℃;Temperature display units: 0.1 ℃;

3. Repeatability: in line with the GB/T261-2008 standard requirement.

4. Reproducibility: in accordance with GB/T261-2008 standard requirement.Temperature display units: 0.1 ℃;

5. Sample heating rate: A step: 5 ~ 6 ℃ / min;

B steps: (1 ~ 1.5) ℃ / min;

6. Stirring speed: (1) (90 ~ 120 RPM), suitable for A test step.

(250 + 10) r/min, apply to test step B above.

7. Ignition way: electronic ignition way;

8. Test conditions: temperature (10 ~ 40 ℃;Relative humidity: 80% or less.

9. The machine power: no more than 500 w.

10. Appearance size: (did not lift the lifting arm) 520mm * 360mm * 310 mm (length * width* height);

(when lifting arm to lift) 520mm* 360mm*420mm (length* width * height).
