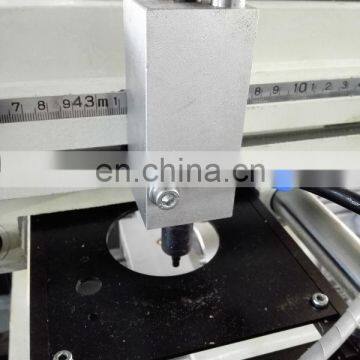

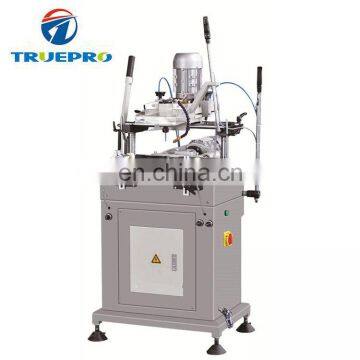

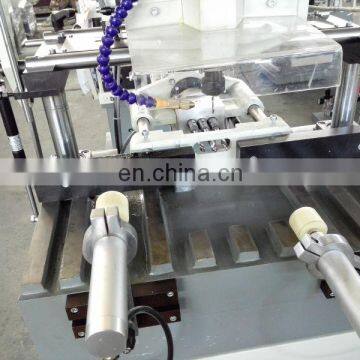

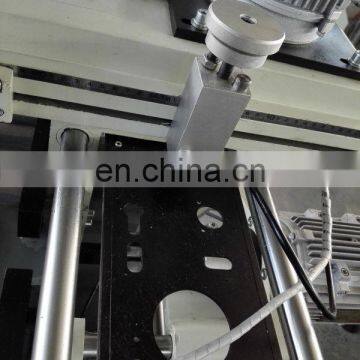

2 Axis 4 Hole Aluminum Window Hardware Slot Copy Router
Equipment features:
- Milling all kinds of lock holes.
- Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction).
- Movement of three drill head increases the guide pin under the guidance, guarantee the three holes on the underside of the parallel.
- Three drill rear layout,easy operation,accord with human body en gineering principle.
- Automatic feeding of three drill gas-liquid damping, reduce the labor intensity of the workers.
- Profile modeling by profiling mound plate and auxiliary positioning for modeling.
Technical Parameter:
| Model | CFZ-235*100A |
| Input Power | 2.6kw |
| Air Pressure | 0.5~0.8Mpa |
| Power supply | 380V 50Hz |
| Diameter of the three-hole drilling head | ∅10mm |
| Milling cutter diameter | ∅5/∅8mm |
| Copy-routing range | 235*100mm |
| Overall dimension | 870*1200*1500mm |
| Weight | 220kg |
Jinan Truepro International is an integrated enterprise centralizing a whole body of scientific research,manufacture and distribution that specially produce aluminum window&door manufacturing equipment,aluminum covered-curtain wall equipment,PVC window & equipment and insulating glass processing equipment.Our company owns excellent team of research and development and technician which lay foundation of high-quality machines.
We offer the best balance between affordability and quality,we build quality machines for a price that can take your business to another level.We use components throughout the word,such as, Schneider Electric,OMRON PLC.
Our service
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
