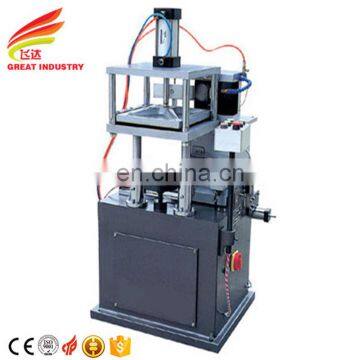

window and door making machine aluminium window mullion end milling machine

window and door making machine aluminium window mullion end milling machine

Product Application

--applicable to all kinds of profile end, step surface forming
--This machine is mobile profile, that is moving stable, and the tool does not move;
--Tool can be regulated up and down, the adjustment adapt to different shapes and sizes of processing;
--Feed system is controlled by hydro-pneumatic damping device, stable and reliable;
--The whole structure is compact, easy to operate, large processing range, can process multiple profiles

   at the same time,  high production efficiency.

Main Specification

1) Input power: 380V 50Hz
2) Power: 3kW × 4
3) Motor speed: 2840r / min
4) Air supply pressure: 0.5-0 .8 MPa
5) Spindle diameter: Φ30
6) Cutter diameter: Φ160 / Φ300
7) Table feed stroke: 0-1125
8) Table size: 510 × 370 mm
9) Tool adjustment stroke: 0-80
10) Open the maximum depth of mortise size: 55mm
11) Cutting the maximum vertical height of the step surface: 68mm
12) Dimensions: 2800 × 1700 × 1800
13) Weight: 750Kg

End Milling Precision
1) Cutting surface perpendicularity 0.2 mm (100X100 mm section)
2) Cutting surface flatness 0.2 mm (100X100 mm section)
3) Cutting surface roughness Ra12.5 μm

REMOVABLE

        GOOD STRUCTURE

GOOD END CUTTER

          PERFECT MILLING
