PVC door window lock hole drilling machine for UPVC window door making
- 100 Set / Sets per Month
- Qingdao Shanghai Guangzhou
- T/T Credit Card
- UPVC profile window door lock hole drilling milling machine
- PVC Aluminum window door milling machine for copy routing and lock hole drilling machine
- Single head milling copy router machine for PVC window door making
- Multi-spindle copy routing milling machine for Aluminum and UPVC window door
- Single-head Welding UPVC Windows Machine
- PVC window production portable corner cleaning machine
Product Details
Brand Name: | Better | Model Number: | SZJ01 |
Product Description
PVC door window lock hole drilling machine for UPVC window door making
Copy-router milling and lock hole drilling machine for window door (Model:SZJ01)
Brief introduction
It is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/Plastic/Vinyl and Aluminum doors and windows.
It consists of long horizontal holes, and the copy routing of vertical long holes. One time clamping can achieve 2 working procedures which ensures the precise position between holes and grooves efficiency.
Features
This machine has two functions, one function is that it can make lock hole(slot/groove) milling/drilling, the other function is that it can make copy-router milling.
It has 3 cutters to mill/drill the lock hole, and one cutter to mill the copy-routing, so here you choose this model can make two works.
Friendly note
We have common type Model SZJ01 and new type Model SZJ01.
Parameters | |
Model | SZJ01 |
Power supply | 380V/50Hz or as required |
Input power | 1.85kw (0.75kw,1.1kw) |
Working air pressure | 0.4~0.6Mpa |
Air consumption | 30L/min |
Diameter of copy-routing milling cutter | Φ5, Φ8 |
Diameter of three-hole drilling cutter | Φ12 |
Centers distance of three-hole drilling cutter | 21.5x21.5mm |
Copy-routing range | 300x100mm |
Overall dimensions (LxWxH) | 1000x1130x1500mm |
Net weight (about) | 320kg |
Main parts brand name | |
Electrical button and switcher | Schneider (France brand) |
AC contactor | Schneider (France brand) |
Circuit breaker | Schneider (France brand) |
Standard accessory | |
Certificate | 1 piece |
Complete tooling | 1 set |
Operation manual | 1 piece |

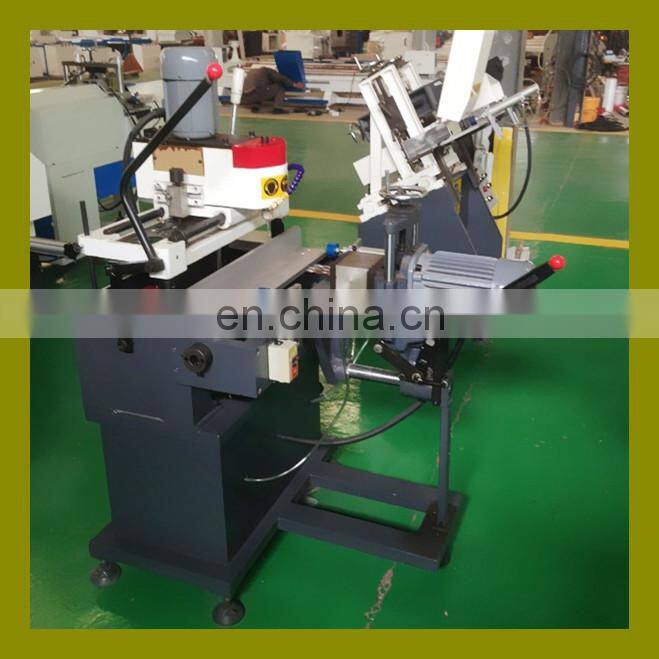

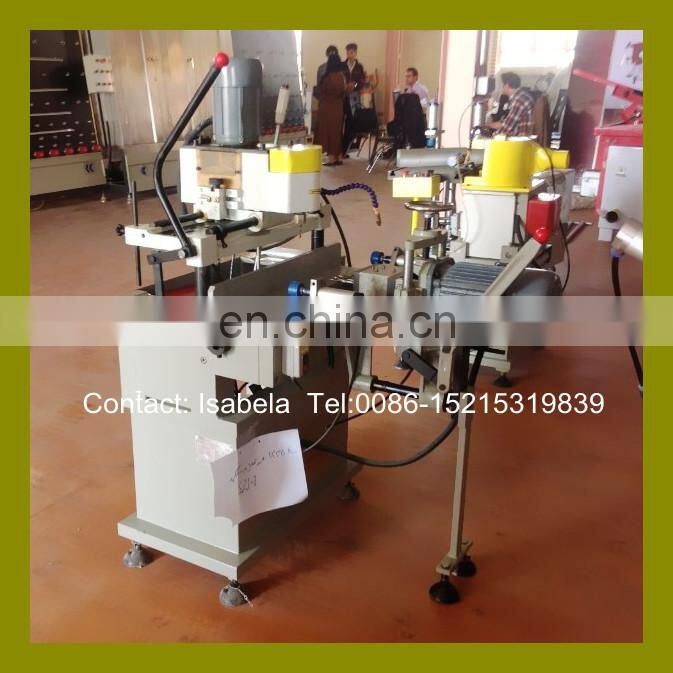

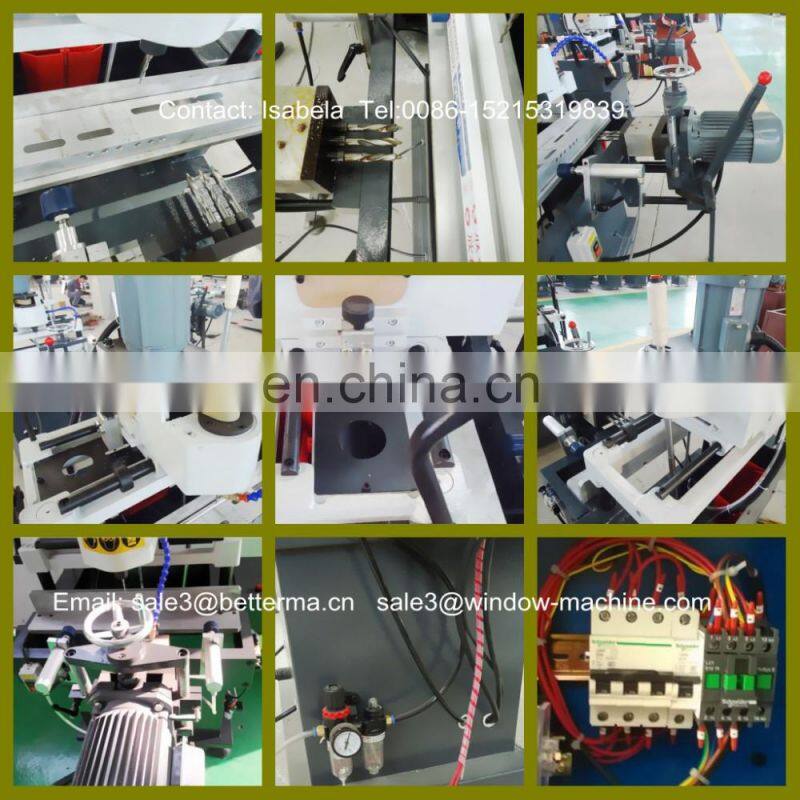

Common type Model SZJ01 pictures

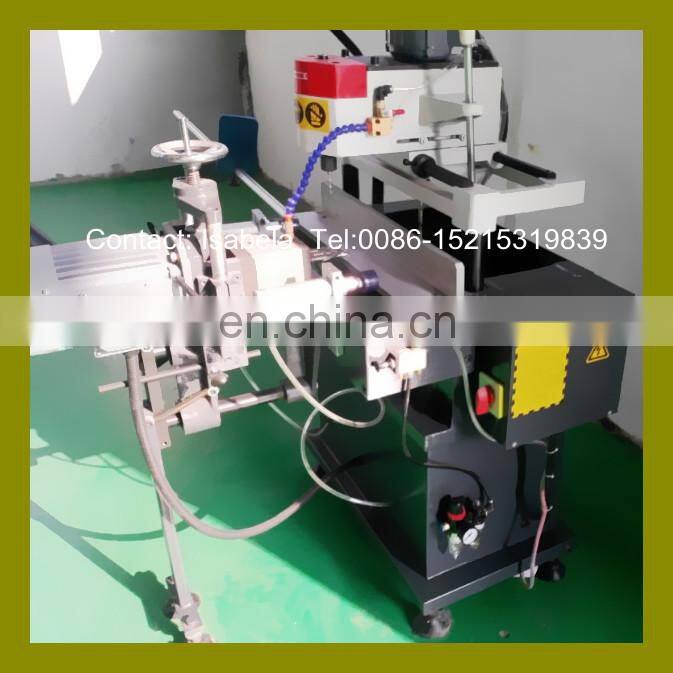

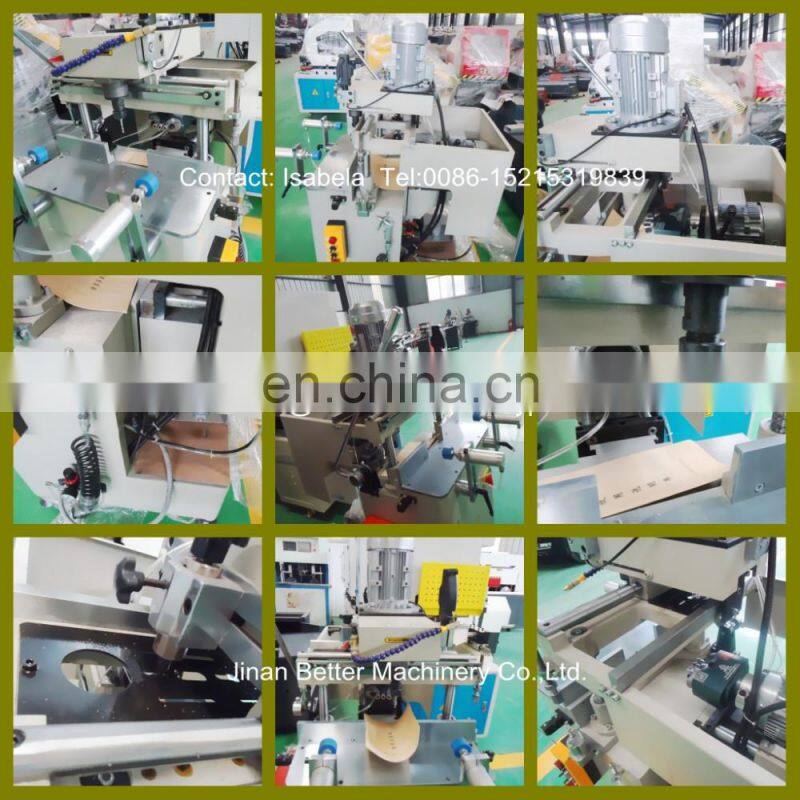

New type Model SZJ01 pictures

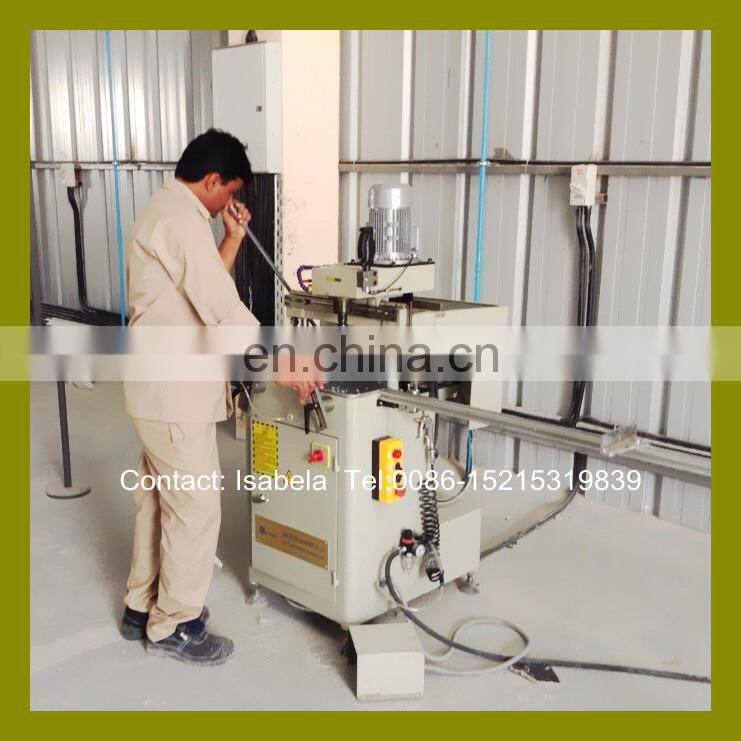

Common type and new type Model SZJ01 in our oversea customer workshop showing
1).Comon type Model SZJ01
2).New type Model SZJ01

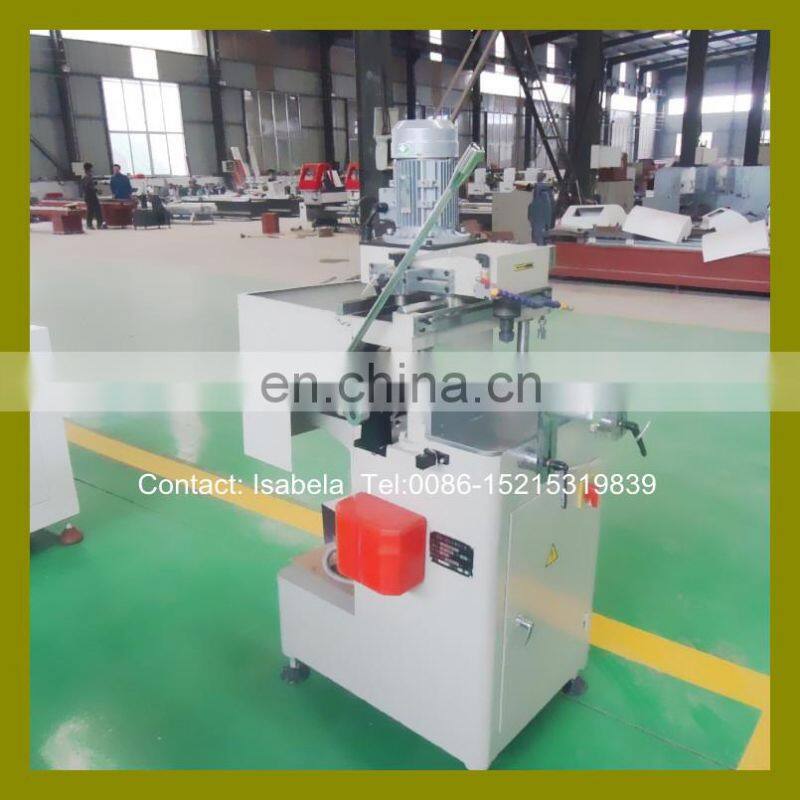

All PVC/UPVC/Plastic/Vinyl and Aluminum window door milling machine models
Related PVC/UPVC/Plastic/Vinyl and Aluminum window door production workshop layout
1).PVC/UPVC/Plastic/Vinyl window door production workshop layout
2).Aluminum window door production workshop layout
Our company workshop and machines certificates

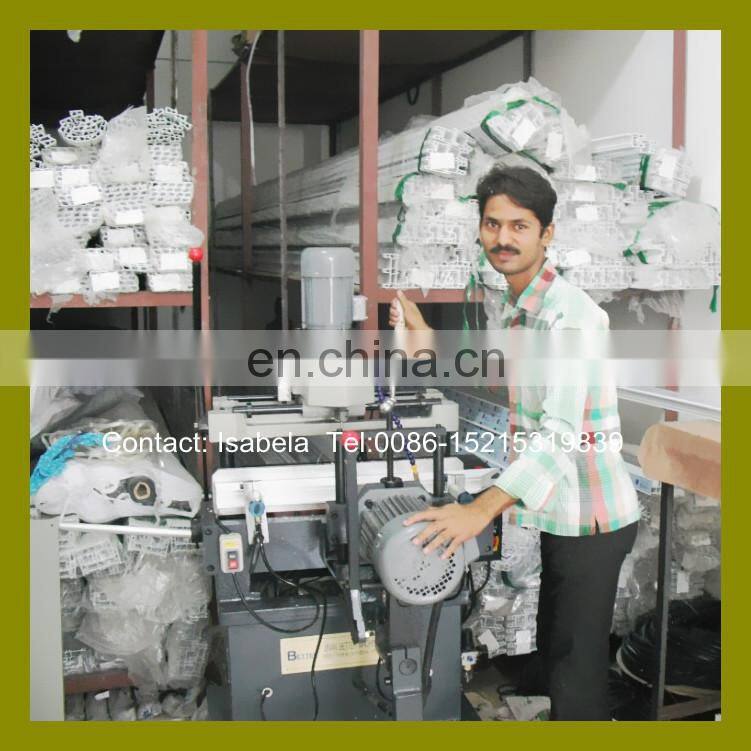

Our machines in foreign customer workshop
WHY YOU CHOOSE US Question AND Answer
1.Question:Are your manufacture?
Answer:
We are manufacture of the PVC/UPVC/Plastic/Vinyl window door machine, Aluminum window door machines, Insulating glass machines.
2.Question:What’s the customer service?
Answer:
1).Reply within 12 hours.
2).One to one service.
3).24 hours for after-sale service.
4).More than 15 years experience in this field.
5).Fluent English, communication barrier free.
3.Question:What’s the guarantee?
Answer:
1).Our guarantee for 2 years.
2).24 hours technical support by email or calling.
3).English manual and video tutorial.
4).2 years quality guarranty for the machine (excluding the consumables).
5).We will provide the consumable parts at an agency price.
6).24 hours on line service each day, free technical support.
4.Question:If your price is higher than another company or factory?
Answer:
Please check, what is is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years. We believe that you will choose the true quality long lifetime machine, not cheaper machine.
5.Question:How long is the delivery time?
Answer:
For standard machines, it will take 1-15 days. (Some machines, such as the lock hole milling machine, end milling machine or glass edge polishing machine or butyl extruder machine etc., these common models machines, if you buy separate machine, we can delivery within 1-7 days after get your deposit, it depends on different model; If your order machines are enough a container to load or you order the whole production line machines, we can delivery within 10-15 days.)
For non-standard machines and customized machines according to clients specific requirements, it will take 15 to 30 days. (If the machines that customer ordered are very special, we will take long time to make the machine specially, it will take 15-30 days, this point hope customer can understand, thanks!)
6.Question:How's the payment?
Answer:
1).Telegraphic Transfer. T/T: 30% T/T deposit, 70% rest balance before shipment or against the original BL scanning. (If customer want to pay little deposit in beginning, for example, some customer want to pay 10% deposit, it is also acceptable; If some customer visit our factory and confirm the order, want to pay some cash as deposit, it is also acceptable).
2).L/C.
3).If you want by Western Union or Trade Assurance, it is also OK.
7.Question:What is Jinan Better Company special advantage?
Answer:
We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time. Before our machine reach your workshop, if you need we help you to design the drawing that list all machines should how to place in your workshop, we can help you to make the drawing to give suggestion in short time; And if you need we suggest how many squaremeters workshop is betterr, you can tell us your plan production, then we will suggest how many machines you need, and tell you how many squaremeters workshop is better.
8.If I want to use some certificates to pay less tax for importing your machines, can you help me?
Answer:
Our company can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
9.Question:What is your contact information if we want to start business with you?
Answer:
Contact Person:Ms.Isabela
Jinan Better Machinery Co.,Ltd.
Address:No.6 Lashan North Road,Jinan City,Shandong Province,China.
Tel:0086-531-85608516
Mobile No.:0086 15215319839
WhatsApp &Wechat:0086 15215319839
Fax:0086-531-61311202
Skype:isabela.liu
