RGC-CNC CNC Automatic Flat Glass Cutting Machine Price

Name: RGC-CNC CNC Automatic Flat Glass Cutting Machine Price
Brand: PARKER
Price: USD $58,000 - 65,000 / Unit

FOB Price

USD $58,000 - $65,000 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	PARKER	Place of Origin:	Shandong, China	Certification:	CE
Warranty:	1 Year	Weight:	4800KGS
Dimension(LWH):	1590026802590	Production Capacity:	100%	Condition:	New
Voltage:	380V 50HZ	Power(W):	9kw	Machine Type:	Glass Cutting Machine

Product Description

RGC-CNC CNC Automatic Flat Glass Cutting Machine Price

MODEL: RGC-CNC

Features:
◆ Three sections: double turning arms multi-position glass loading seciton, automatic cutting section and flotation severing section.
◆ Adopt OPTIMA software, ADVANTECH industrial personal computer and OMRON servo motor.
◆ It’s widely used for architectural glass, furniture glass, auto glass, solar glass and so on.
◆ Glass orientation: photoelectronic scanning orientation and mechanism orientation.
◆ Unique shape of glass can be scanned by photoelectronic scanning function and saved in CAD format.
◆ It’s convenient to draw and operate with 300 kinds of picture templates.
◆ Cutting operation: use air pressure and the spring SMC precision digital module. The cutter head rotate 360º, available for any shape cutting.
◆ Conveying device: synchronous belt transmission automatically.

Technical Parameters
Name	CNC glass cutting produce line
Model	RGC-CNC
Power	380V/50HZ/15-20KW
Glass loading section
Power	380V/50HZ/9KW
Max loading size	2440x3660mm
Min loading size	1500x1500mm
Loading thickness	2-19mm
Loading weight	900Kg
Air pressure	0.5-0.8Mpa
Glass cutting section
Power	380V/50HZ/5KW
Air pressure	0.8Mpa
Max. cutting size	3660x2500mm
Cutting bridge speed	0-150m/min
Cutter head speed	160m/min
Cutting thickness	2-25mm
Cutting accuracy	±0.20mm
Cutter head location error	±0.15mm

Detailed Image

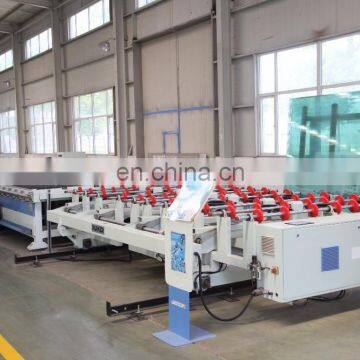

Glass Loading

This automatic glass cutting production line is equipped with double mechanical movement bridge system that can be automatically driven by motor.

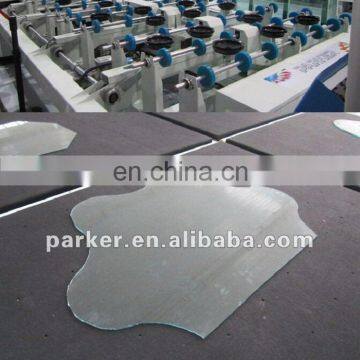

Photoelectric Scanning Position

CNC glass cutting line provides photoelectric scanning positioning and mechanism glass positioning modes. Unique shape of glass can be scanned by photoelectric scanning function and saved in CAD format..

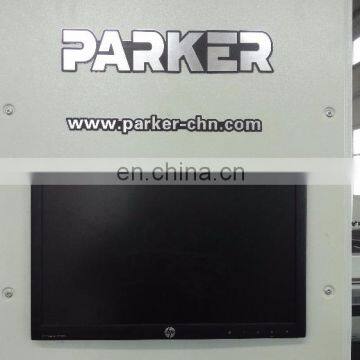

Automatic CAD designed graphs and figures

Automatic CAD designed graphs and figures help the CNC glass cutting line to realize automatic cutting with all the cutting data fully computer controlled. The operator can edit the glass size for cutting into the computer. The computer can optimize the cutting size, give out the data for processing and drive the machine to cut glass sheet automatically.

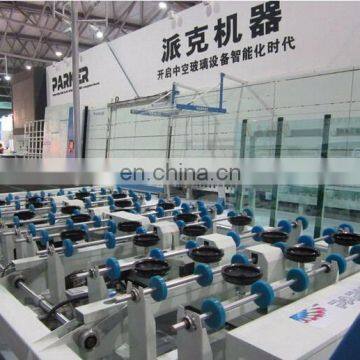

Our Exhibition

Our Services

1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement

Factory View

Parker machinery was founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment.With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China.The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery.With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc.We have a perfect sales network and complete service system in China.We are also taking a leading role in setting branch companies abroad.

Our Customers

Packing & Delivery

Parker produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.

Contact information

Any suggestions or help, please kindly contact below:

Contact	Carina Zhang
Company	PARKER MACHINERY CO.,LTD,CHINA
Email	Carina(at)
Telephone	+86-531-88075288
Mobbile/What's App	+86-15106958367
Skype	carina.parkermachine
Website
Industrial Park add:	Mingjia West Road, Qihe, Shandong, China
