high efficient aluminum window door making machine

Name: high efficient aluminum window door making machine
Brand: PARKER
Availability: InStock

FOB Price

USD $20,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 10 Unit / Units per Month
Port FOB CIF C&F etc.
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	PARKER	Place of Origin:	Shandong, China	Model Number:	DMCC3H
Type:	Horizontal	Certification:	CE certificaiton	After-sales Service Provided:	Overseas service center available
Warranty:	lifetime	Weight:	3000kg	Dimension(LWH):	452516301900mm
Voltage:	380V/50Hz ( can change as requirements)	Condition:	New	Power(W):	9KW

Product Description

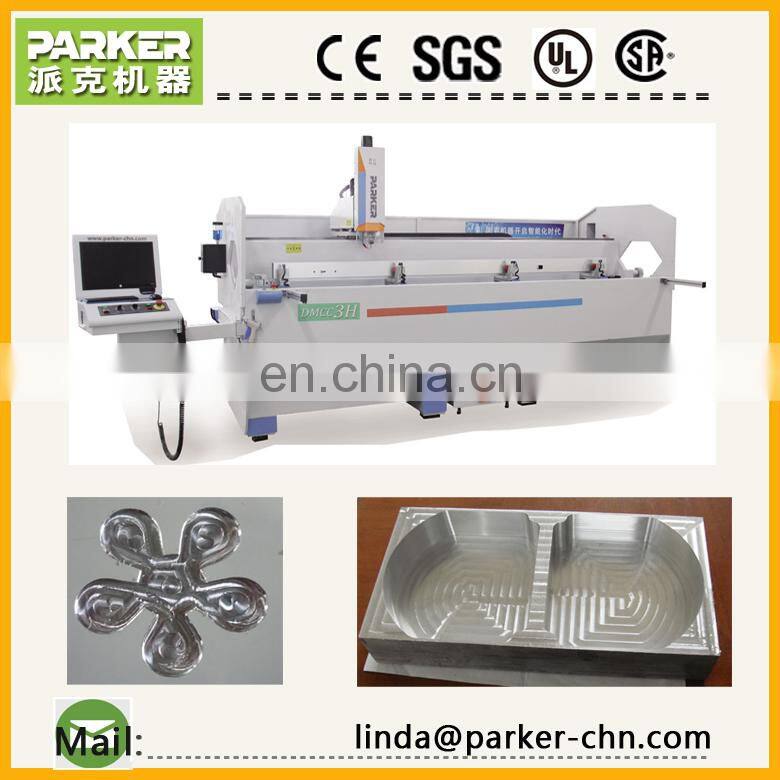

high efficient aluminum window door making machine/ cnc drilling & milling machine

Product Description

Model: DMCC3H

Features:

1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.

2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.

4.It adopts vegetable oil micro crystal line cooling system to improve the tool life without poison and pollution.

5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.

6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

Parameter:

X axis Stroke	3600mm
Y axis Stroke	300mm
Z axis Stroke	200mm
X axis Speed	0~140m/min
Y axis Speed	0~75m/min
Z axis Speed	0~75m/min
Main spindle speed and Power	18000rpm/9kw
Work table position	-90°,0°,+90°
Cutter size	10mm, 8mm, 5mm,4mm,3mm
Air Pressure	0.5~0.8MPa
Voltage	380V/50Hz ( can change as requirements)
Cutter cooling	Auto spraying and cooling
Processing character	Can process three sides of profile per time loading profile
Dimension:(L×W×H)	4525×1630×1900mm
