90 and 45 degree aluminum window door profiles cnc cutting saw machine/aluminum window fabrication machine

Name: 90 and 45 degree aluminum window door profiles cnc cutting saw machine/aluminum window fabrication machine
Brand: PARKER
Price: USD $10,000 - 25,000 / Set

FOB Price

USD $10,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port QINGDAO SHANGHAI CHINA
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

PARKER

Product Description

90 and 45 degree aluminum window door profiles cnc cutting saw machine/aluminum window fabrication machine

Product Description

1) Bried Introduction :

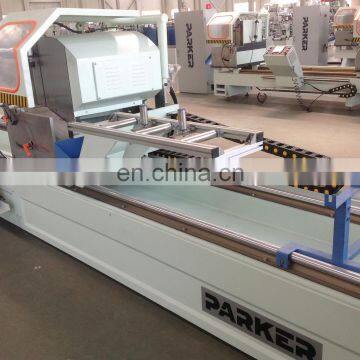

LJZ2-CNC-500×4200 CNC double mitre saw is used for cutting aluminum window and door profiles, curtain walls and other industrial aluminum profiles.

It is also used for corner connector cutting. Adopting CNC technique, this double head mitre saw can achieve automatic cutting for various profiles.

High speed rotating spindles and blades driven by motor can realize precise feeding and cutting. CNC double mitre saw can achieve different cutting lengths by inputting information on the computer display.

Three cutting angles (45°, 90°, 67.5°) are converted by button. Besides, this double head mitre saw is equipped with air-liquid switching device that ensures stable cutting speed.

2) Parameters Data:

Model	LJZ2-CNC-500×4200 Double Head Mitre Saw
Repeating Fixed Length Precision	≤ 0.2 mm
Cutting Angle Error	± 5′
Cutting Plainness	≤ 0.1 mm
Cutting Sag of CNC Double Mitre Saw	≤ 0.1 mm
Cutting Harshness	Ra12.5 µ m
Power Supply	380V 50 Hz (Three Phase, Four Wire)
Motor Power	2.2 kW × 2
Rotary Speed	2800 rpm
Saw Blade Size	Φ500 × 4.4 × Φ30 × Z120
Air Pressure of CNC Double Head Mitre Saw	0.5 to 0.8 Mpa
Air Consumption	200 L/min
Cutting Angle	90° 45° 67.5° 22.5°
Cutting Length	Max. 5000 mm Min. 400 mm
Cutting Width	Max. 140 mm
Cutting Height	Max. 300 mm
Feeding Speed	0 to 3 m/ min (Variable Speed)
Overall Dimension	5500 mm × 1700 mm × 1800 mm
Weight of CNC Double Mitre Saw	2600kg

3)Features:

Features of LJZ2-500×4200 CNC Double Mitre Saw
1. Its feeding system adopts imported linear guide pair with high accuracy and long service life.
2. This double head mitre saw adopts imported carbide saw blade which ensures accurate processing and high endurance.
3. Special designed air-controlled angle converting device replaces the magnetic valve control. Magnetic valve problem is eliminated.
4. Due to air-hydraulic damping cylinder, CNC double mitre saw achieves uniform sped feeding and smooth motion.
5. This double head mitre saw is installed with automatic opening guard shield ensuring safety operation.
6. Special designed angle locating device ensures cutting angle's stability.
7. Parker CNC double mitre saw can realize continuous cutting with different lengths.

Packaging & Shipping

Our Services

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: What sales terms do you have?

A: T/T, L/C,West Union.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?

A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?

A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you.
