Home > Products > Aluminum Window Door Making Machine > Aluminum used windows corner crimping machine/Aluminium Doors Window making Machine/aluminium one head corner crimping

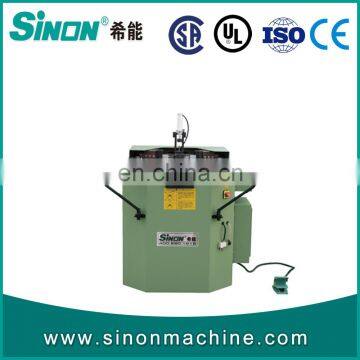

Aluminum used windows corner crimping machine/Aluminium Doors Window making Machine/aluminium one head corner crimping

Name: Aluminum used windows corner crimping machine/Aluminium Doors Window making Machine/aluminium one head corner crimping
Brand: SINON
Availability: InStock

FOB Price

USD $2,400 - $2,800 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port qingdoao shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

SINON

Model Number:

LZJ03-130

Packaging Details

Standard wood packaging

Product Description

shandong jinan supplying aluminium doors window manufacturing machine of aluminum window corner crimping machine

Main purpose and scope:

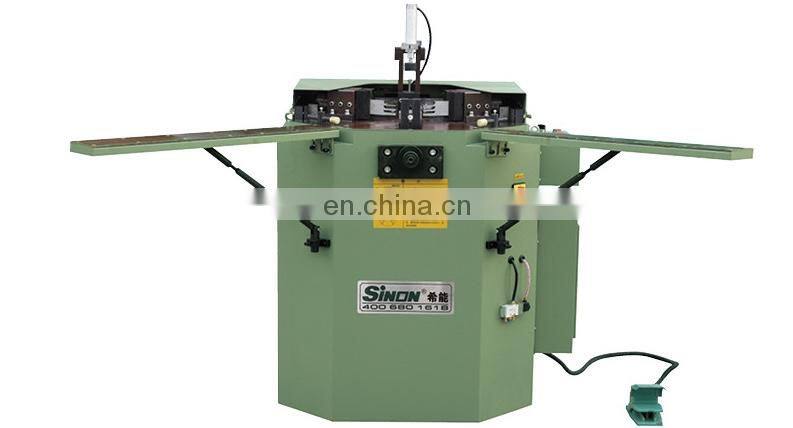

LZJ03-130 Aluminium window and door corner combining machine for aluminum door and window Assembly and special equipment. By inlaid corner, profile composed of 90° angle suitable for aluminium Windows and doors 90° angle connections.

Features:

Powered by the hydraulic system control, which enables the smooth and reliable
Left and right punches, rigid synchronous feed, avoiding useless variant of the crimping process, stronger window corner connection
Synchronized feed mechanism make machine adjustments easyThread group angle distance up or down regulation, makes it easier for tool
Single pole multipoint crimping tool can be configured to make more reliable heat insulation break bridge aluminum window and door corner
Countertops special structures to improve design, avoid using glue when crimping process, profile corner crimping quality problems caused by difficulty level.
Positioning head of lift, hydraulic station of more powerful.

Optional:

Heavy model LZJ04-130
Primary orientation block sink model LZJ03B-130

Technical Specifications

Power supply	380V 50Hz or Customers specification
Motor power	1.5KW
Rated oil pump pressure	16Mpa
Motor rotational speed	1400r/min
Model of the oil pump	2.5MCY
Profile processing height	Max)120mm
Profile processing width	90mm
Total combining pressure	0.5-0.8Mpa
Air consumption	2L/min
General pressure of corner combining	48KN
Corner combining casing movement journey	85mm
Weight	300kg
