CNC Aluminum Window Door Machine with Double Cutter
- 20 Set / Sets per Month
- QingDao sport
- T/T Credit Card
-
Double Head CNC Automatic Aluminium Material Cutting Saw for ultra wide profile
-
Aluminium Profile Double Mitre Cutting Saw Aluminum Window Making Machine
-
500mm Blade Heavy duty single head cutting saw aluminum window machine
-
45 and 90 Degrees Angle Aluminium Window Door Single Head Cutting Machine for Sale
-
500mm Blade Automatic Aluminum Material Double Head Cutting Saw
-
Good Price Small Pneumatic Punching Machine for Aluminum PVC Window
Product Details
| Brand Name: | Sinon |
Packaging Details
wooden packing
Product Description

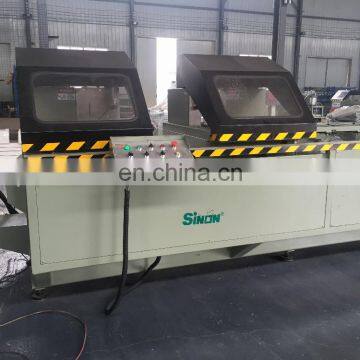

CNC Aluminum Window Door Machine with Double Cutter
| Details |

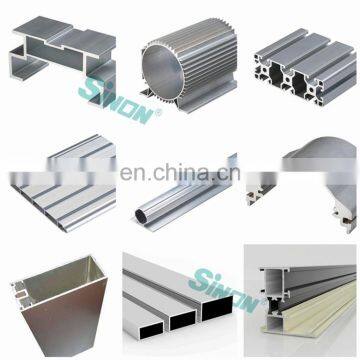

Used for the profile cutting of aluminum windows and doors,curtain wall and industrial aluminum.
- Adopts industry grade computer system, closed-loop controlled, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.1mm.
- Adopt Push-button operation screen, and with USB interface, it can realize the data interchange via by input external memorizer.
- Optimized function: optimizing to cut according to the working list.
- Tabulation cutting function: several kinds of profiles can be selected quickly.
- Continuous feeding: auto feeding profile at 90°cutting.
- Angle automatic indexing: -45°, 90°.
- High precision linear guiding pair ensured steady and long-term processing accuracy.
- Adopt imported air-hydraulic conversion device, so that ensure running stably.
- Stability high precision machine body, the design of machine body conform to the aesthetic point and human body engineering principle.
- Auto-opening shield with rubber seal makes the operator more safety.
- the middle profile supporter and movable carrier make the loading convenient. it’s compact structure follows the operation custom in better way.
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
| Technical Specifications |
Product Name | Sinon Brand CNC Cutting Profile Aluminium Window Machine |
Input power source | 380V/50Hz |
Total power | 5.5Kw |
Working air pressure | 0.5~0.8MPa |
Air consumption | 200L/min |
Diameter of blade | 500mm |
Principal axis rotate speed | 3200r/min |
Feeding speed | 0~3m/min |
Cutting length | 400~4200mm |
Cutting angle | -45°,67.5°,90° |
Dimension | 5530×1750×1950mm |
Weight | 1850kg |

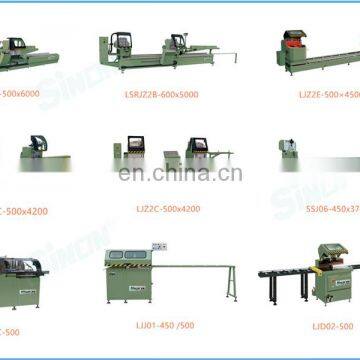

| Optional Models |
- Single head aluminum / pvc profile cutting machine LJZ2E-500
- Double head aluminum profile cutting machine LJZ2C-CNC-500*4200
- Auto feeding corner connector cutting machine
- Industrial aluminum profile cutting center
| Details Photo |
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
