High Precision 3 Meter Aluminium Profile CNC Drilling Milling Machine
- 50 Set / Sets per Month
- QingDao Port
- T/T Credit Card
- High precision extrusion aluminum profile cnc milling machine
- Aluminum profile 3+1 Axis CNC Drilling and Milling Machine Price
- Aluminum window door high-speed CNC drilling and milling machine
- Aluminum Profile Section CNC Milling Machining Center
- Aluminum Extruded Industrial Profile CNC Drilling Milling Tapping Machining Center with T slot Table
- Aluminium Extrusion Profiles CNC Milling Holes Machining Center
Product Details
Brand Name: | MMCNC |
Packaging Details
Iron pallet
Product Description
Aluminum Profile Window Door
Curtain Wall Facade CNC Drilling Machine
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°,-90°~0°~+90°.Clamping one time profile can realize three faces processing, when processing deeply hole(hetero type hole), it can realize deeply hole processing through overturn worktable,so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system,blades adopt system control spray cooling device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all though aging treatment.
Aluminum Profile 3+1 Axis CNC Drilling Milling Machine | |||
SKX3+1-CNC-3000 | 1 | Power supply | 380V/50Hz |
2 | Air pressure | 0.5-0.8MPa | |
3 | Total power | 6KW | |
4 | Main axis power | 3KW | |
5 | Max rotary speed | 18000/min | |
6 | X-axis speed | 3000mm | |
7 | Y-axis speed | 500mm | |
8 | Z-axis speed | 330mm | |
9 | X axis speed | 50000mm/min | |
10 | Y and Z axis speed | 15000mm/min | |
11 | Collect | ER25 | |
12 | Processing widthxheight | 200x200mm | |
13 | Overall size | 4180x1600x2200mm | |
14 | Weight | 1400kg |

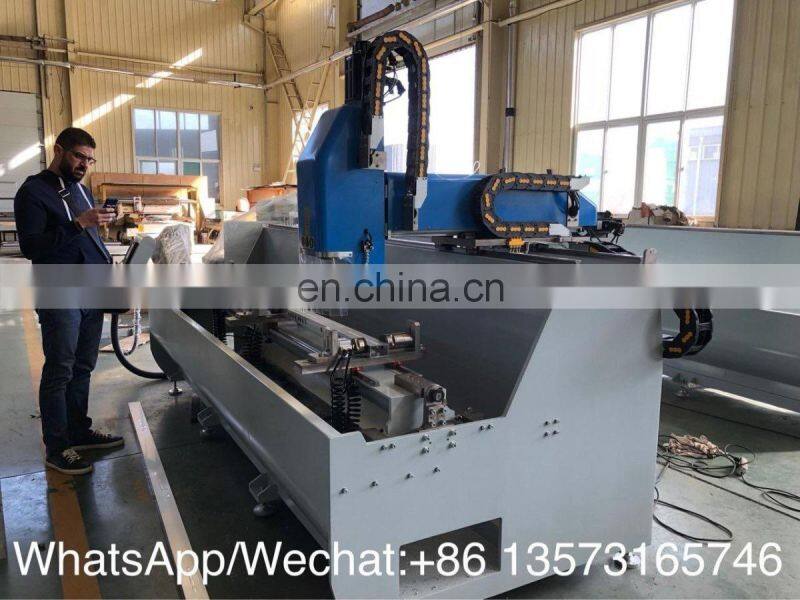

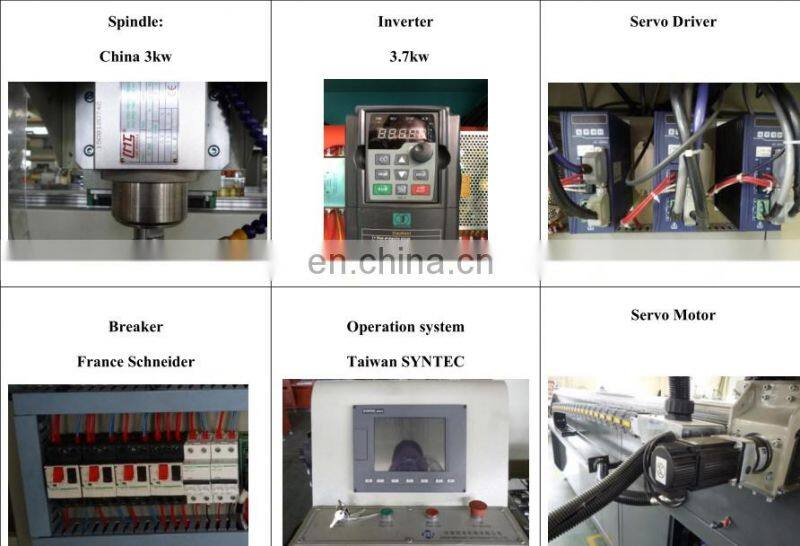

3.Detailed Photos

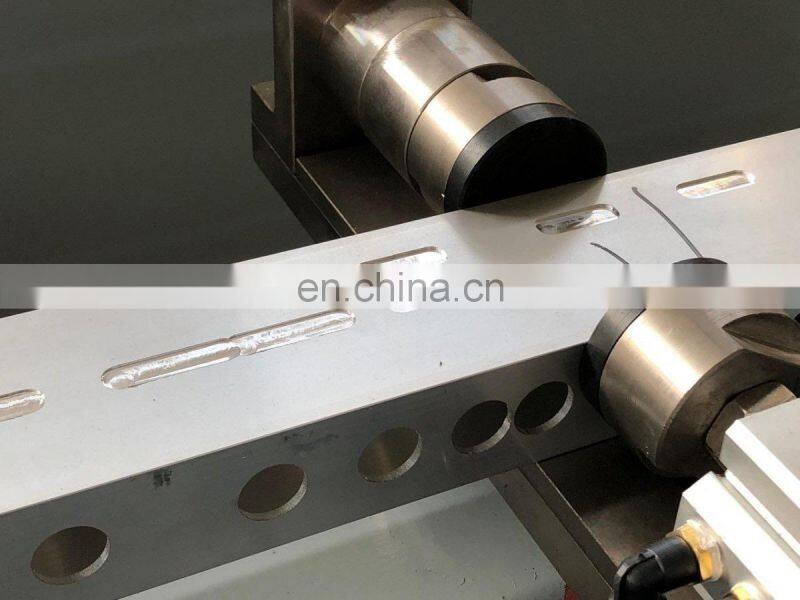

4.Aluminum Profile Milling Sample

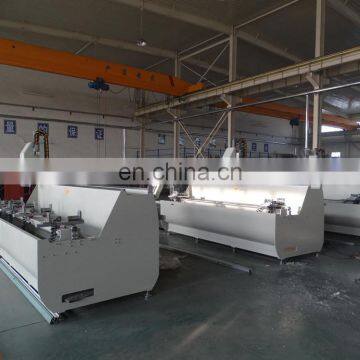

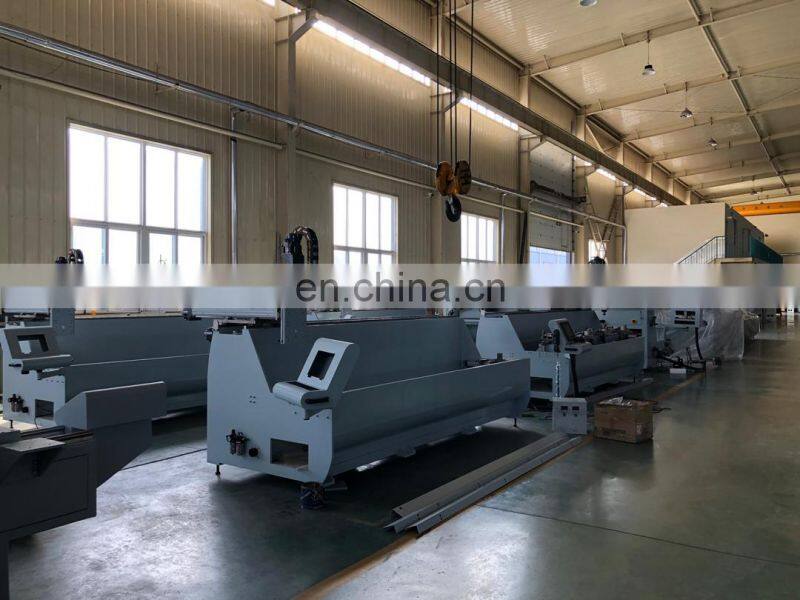

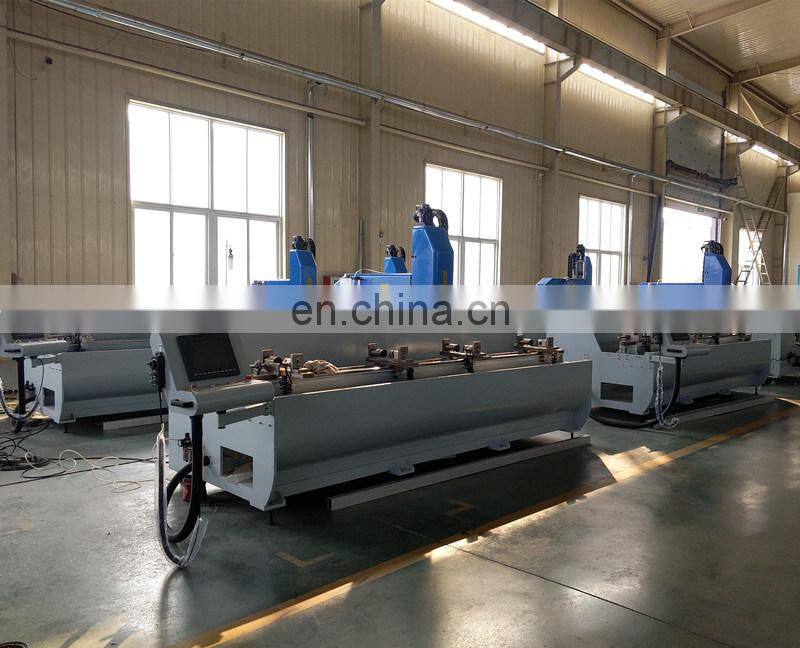

5.The most Hot Sale Model Bulk Production Of SKX3+1-CNC-3000 Aluminum Profile CNC Drilling Milling Machine

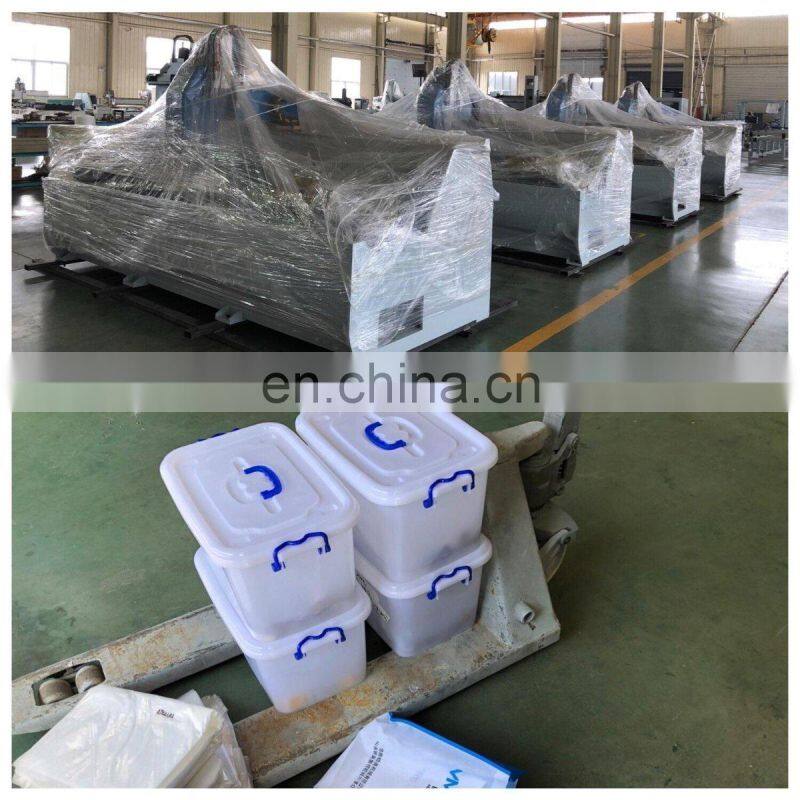

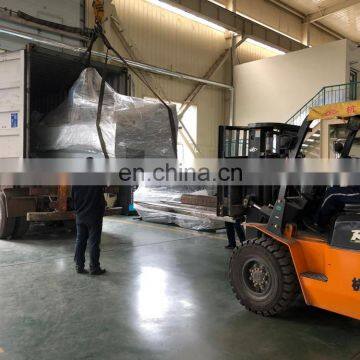

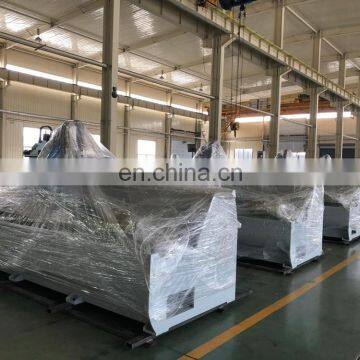

6.Packing and Deilivery

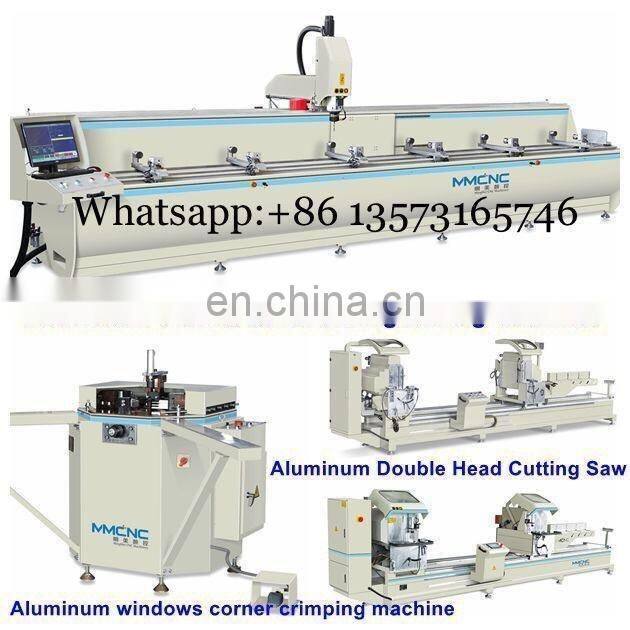

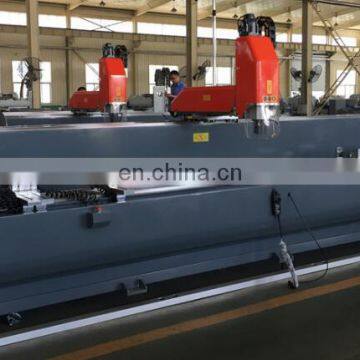

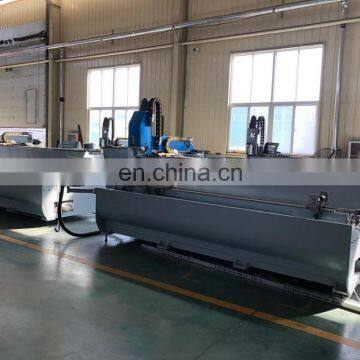

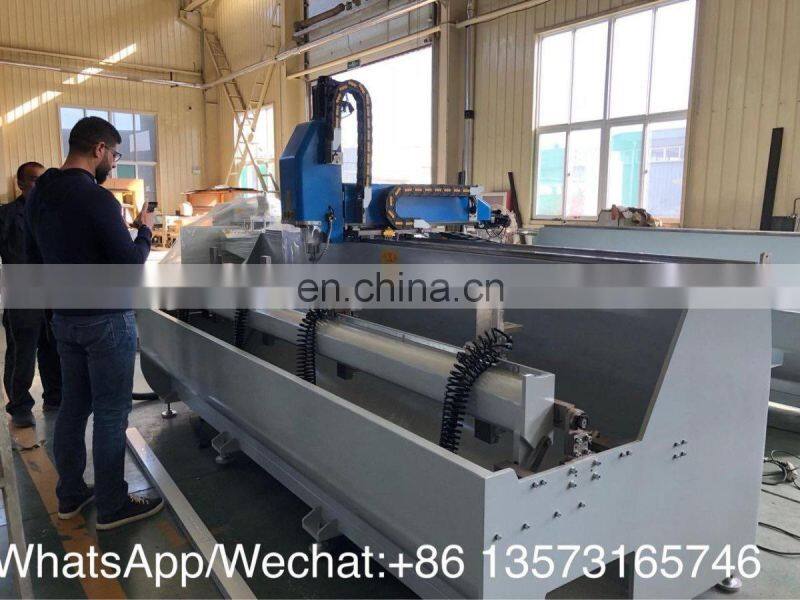

7. More Machine Photos
8.Contact Demi freely for further info
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
