MMCNC Aluminum Single head Cutting Saw alumnum window production line
- 30 Set / Sets per Month
- Shipped in 15 days after payment
- T/T Credit Card
- Single head cutting saw could cutting very wide profile
- single head cutting saw hot sale in world
- lsj - 450a single head cutting saw aluminum window machine MMCNC With digital ruler
- mmcnc business machine Notching Saw for aluminum profile
- Single head Cutting Saw diameter is 450,500
- Aluminium automatic single head miter saw semi automatic miter saw
Product Details
Brand Name: | MMCNC | Place of Origin: | Shandong, China | Model Number: | DZ-600X1000 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Packaging Details
These machines will be packed with Plastic Film and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
Product Description

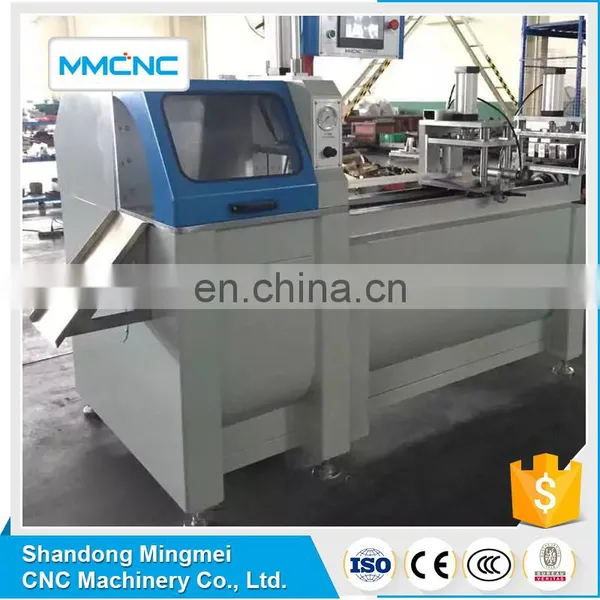

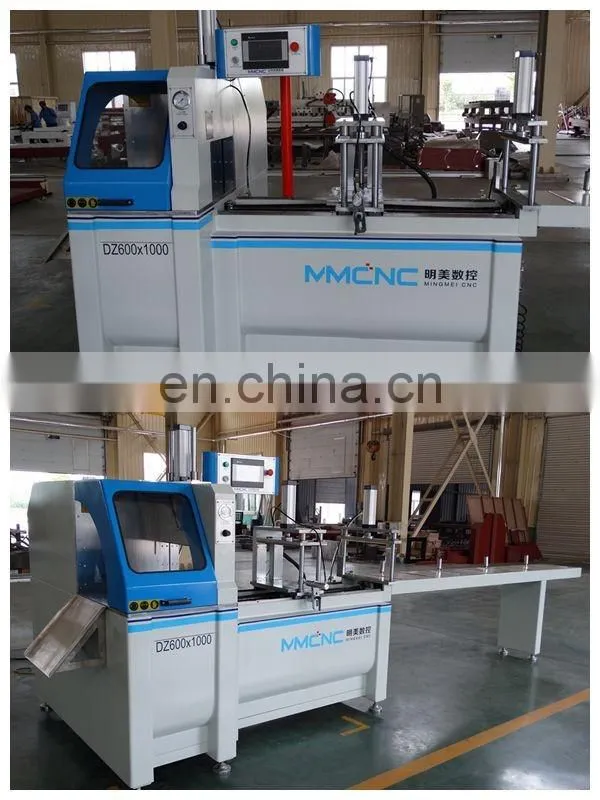

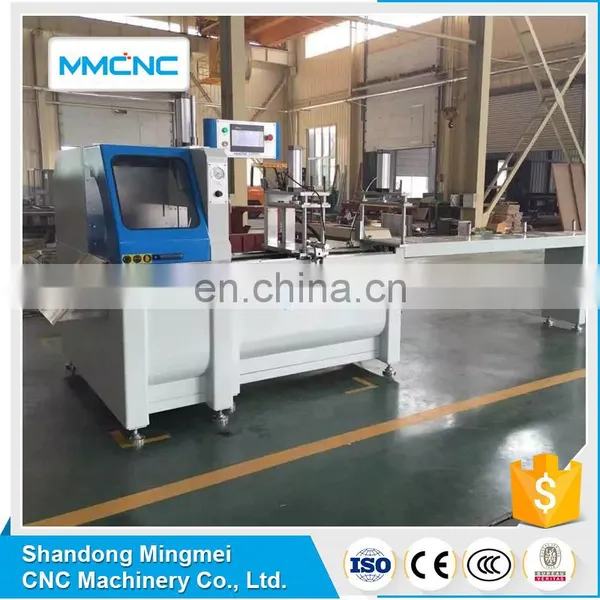

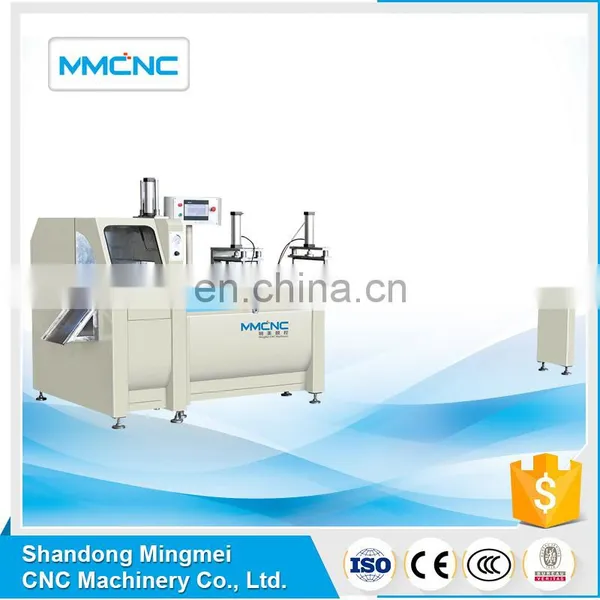

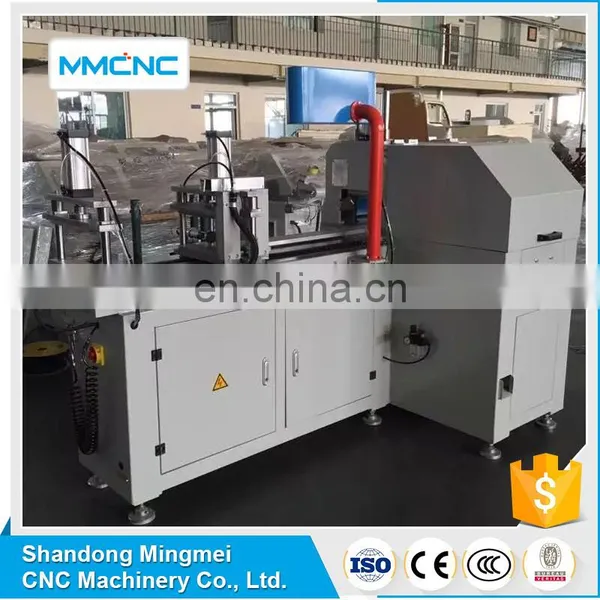

High Efficient CNC Full Automatic Cutting Saw
DZ-600X100
Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high machining precision,high material untilization
Equipment Features for CNC Full Automatic Cutting Saw |
1.The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision.
2.With the function of automatic counting.
3.With the device of spraying,which could improve the processing precision and prolong the service life of saw blade.
4.Forward and backward profile butt joint without tailing, when the profile was cutting.(Patent No.:ZL 2015 20423765.6)
Equipment Features for CNC Full Automatic Cutting Saw | |
Power supply | 380v/50hz |
Motor Speed | 2800r/min |
Working air pressure | 0.5-0.8MPa |
Cutting length | 5mm-1000mm |
Motor power | 3kw(Main Spindle Motor) |
Dimension of saw blade | Θ600xΘ30mmx4.4 |
Saw Blade feeding speed | 0-3m/min |
Dimension | 2500x1700x1890mm(conveyor:5400mm) |
The length of auto-feeding | 5-1000mm |
Net Weight | 780kg |
Detailed Photo of the CNC Full Automatic Cutting Saw |

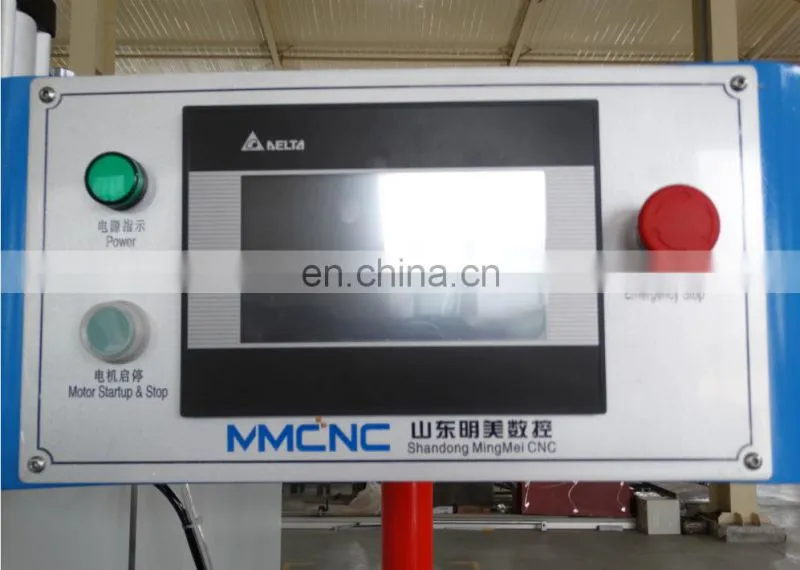

The CNC Control Panel |
The Pressure Adjustment |

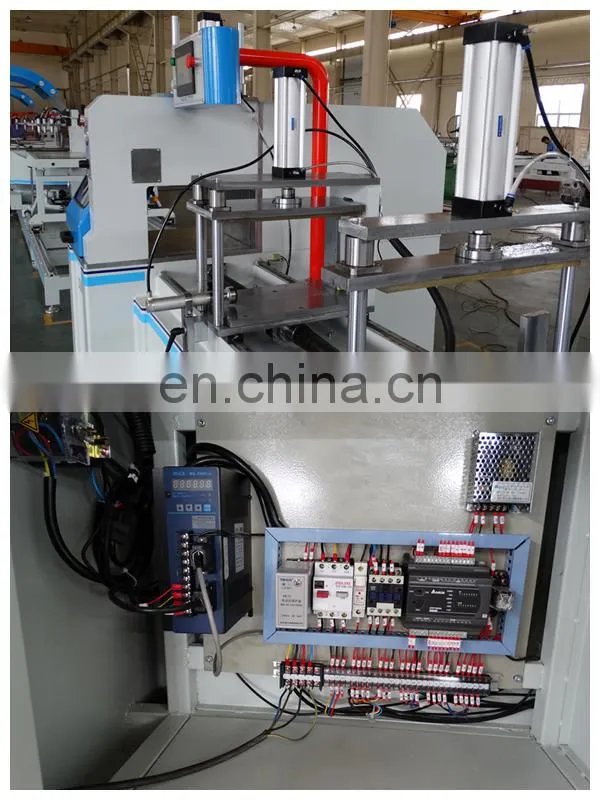

Automatic feeding system double air cylinder control(auto feeding max 1000mm;min 5mm) and cabinet insides |

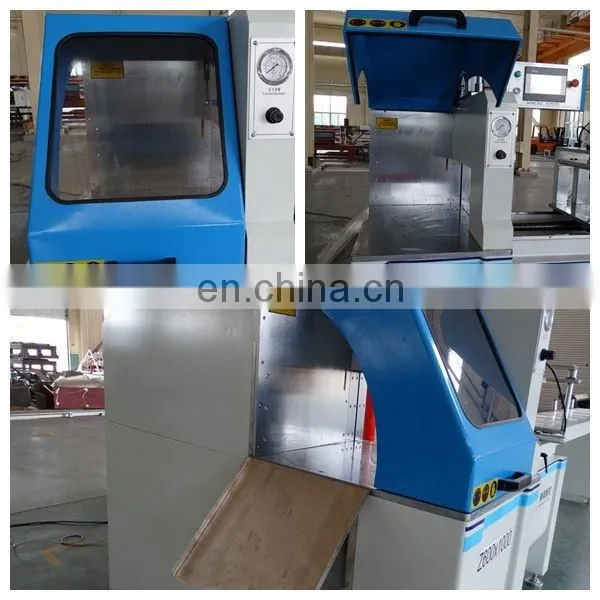

Cutting Area |

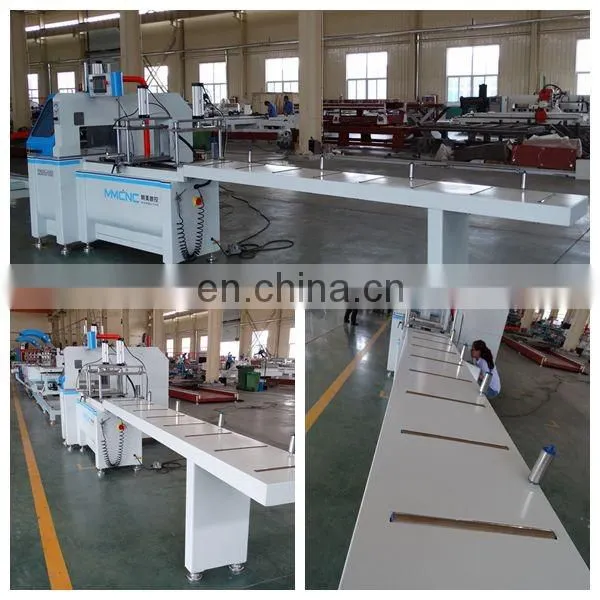

Conveyor length 5400mm included for putting aluminum profile |

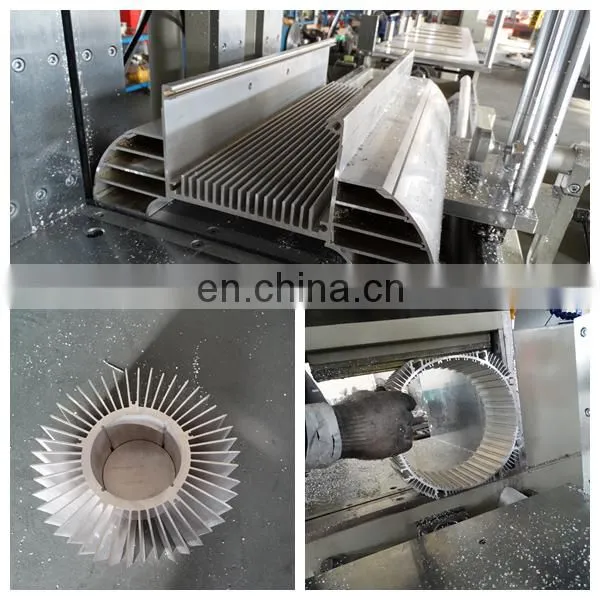

Cutting Samples showing |

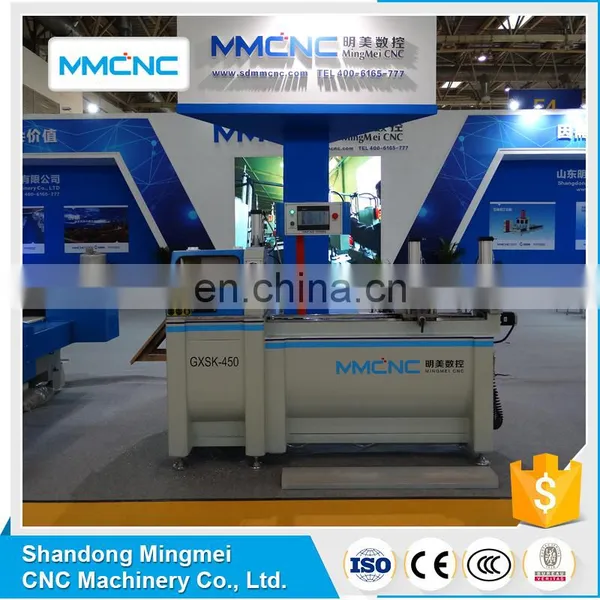

Our Machine on the Exhibition 2016 |

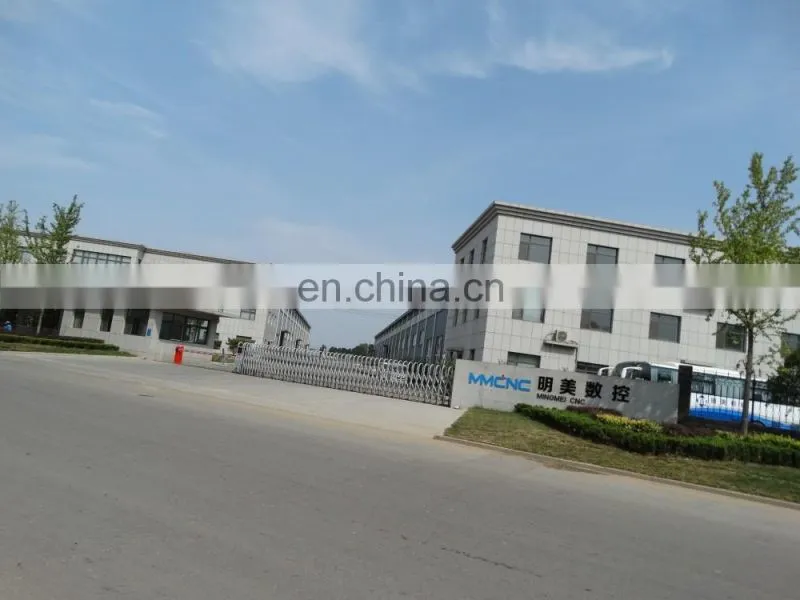

Company Information Shandong Mingmei CNC Machinery Company |
Pre-Sales Service :
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
After-Sales Service :
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement
With us your money in safe,your business in safe!
Mingmei CNC: Supplying the most durable CNC machine is our lifelong promise!
- Mag Guo (Sales Manager)
- Tel: 0086 18766158398 ( WhatsApp / Viber / Wechat )
- Skype:maxicut.mag
- Email: mag@
Get in touch. Any questions about aluminum pvc window door machine,please call me or send enquiry.
