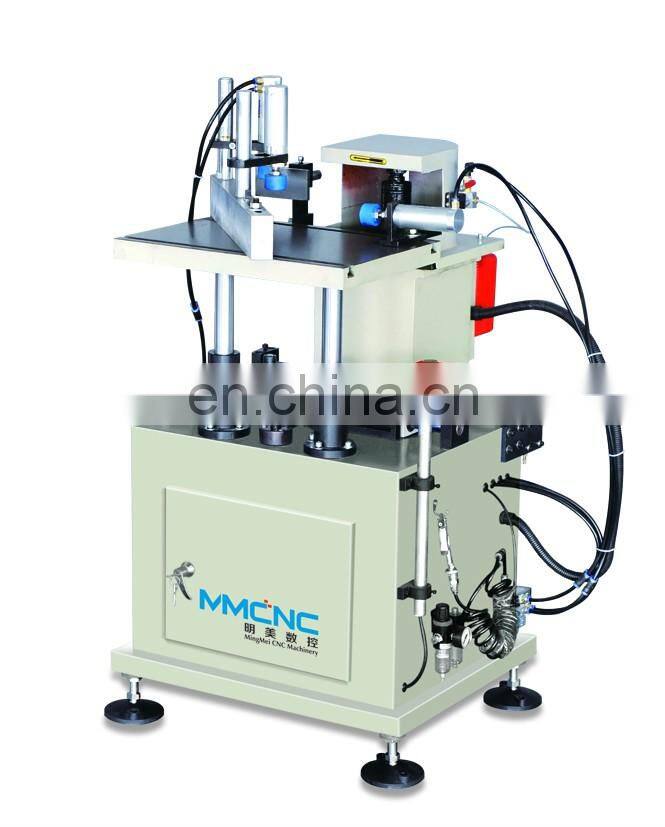

LXD-200 Aluminum End Milling Machine
- 200 Set / Sets per Month
- Qingdao China
- T/T Credit Card
- LXDX-250x5 Aluminum End Milling Machine
- LJGB-500 Heavy Duty Single Head Cutting Saw for aluminum profile cutting
- Digital Display Double Head Cutting Machine LJGX-500 x 4200 for aluminum profile
- LXD-200 Aluminum Windows Profile End Milling Machine
- LJGX-500x4200 Aluminium Profile Digital Display Double Head Cutting Off Saw Machine
- ZXJ-650x5000 Aluminum Profile Double Head Cutting Saw Machine for curtain walls,facade
Product Details
Brand Name: | MMCNC | Model Number: | LXD-200 |
Packaging Details
Wood case or iron pallet into container directly
Product Description
Main Features
1.1 Used for processing aluminum profile end ,step face and slot etc.
1.2 Super precision main shaft insures accurate and steady processing.
1.3 Adjustable processing angle within 35°~90°.
1.4 Convenient tool setting is due to adjustable worktable.
1.5 The cutter is mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.
1.6 Cutter feeding adopts linear bearing motion pair so that the working performance is stable.
Technical Parameter
2.1 Power supply 380V 50Hz
2.2 Total power 2.2Kw
2.3 Motor rev 2800r/min
2.4 Air pressure 0.6-0.8MPa
2.5 Saw Blade specification (Φ200~Φ110)×Φ32
2.6 Open tenon(H×W) 70×45mm
2.7 Location turning angle 35°~ 90°
2.8 Feeding journey of worktable 0~320mm
2.9 Contour dimension 850×740×1280mm Weight about 212kg
Pre-Sales Service
* Inquiry and consulting support.

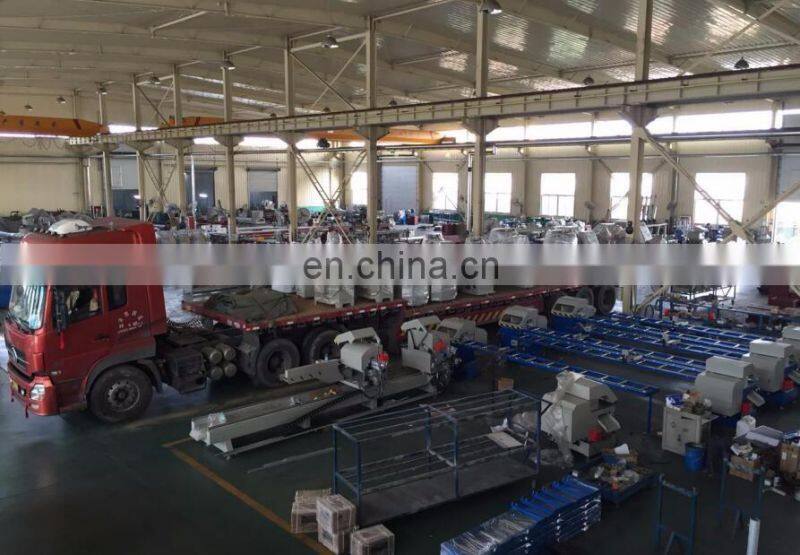

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
