3+1 Axis CNC Drilling Milling Machine/used Cnc Turning Center for Sale

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile,

window-door and curtain wall industry, it is also suitable for processing milling, chamfering

and engraving plane surface and other procedure.

1: This machine is designed for processing round holes, slots, keyhole etc on aluminum profile,

window-door and curtain wall industry, it is also suitable for processing milling, chamfering,

engraving plane surface and other procedure;

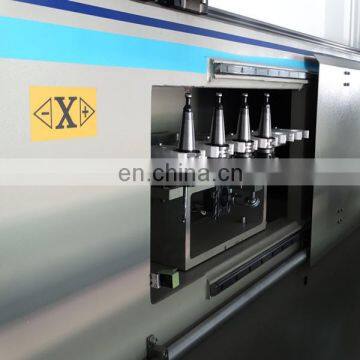

2:Main spindle adopt air-cooling electric main axis, 9KW power, 0-24000/min, have the

function of high precision, high safety and high reliable;

3:Adopt Taiwan SYNTEC CNC control system, Have professional CAD-CAM programming software,

It can transform processing G code automatically, have the function of easy operation, high

efficiency and lower labor intensity.

4: Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving.

Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision

of whole machine;

5:The worktable can overturn 180°-90°0°+90°Clamping one time profile can realize three

faces procession, when processing deeply hole (irregularly-shaped hole), it can realize deeply hole

processing through overturn worktable, so can highly improve processing efficiency.

6: Adopt manual pump oil supply system, blades adopt system control spray cooling device.

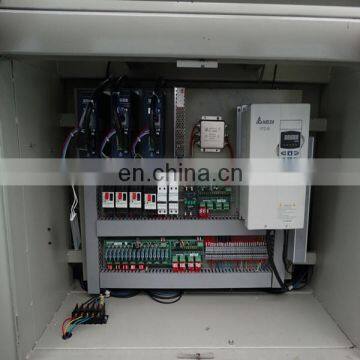

7: The main electrical parts: circuit breakers, AC contactor are all Schneider brand.

8: The main components adopt steel structure and they are all through aging treatment.
