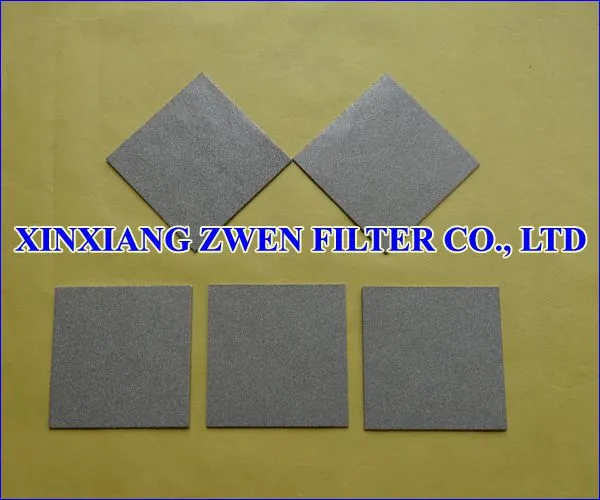

Titanium Frit Sheet

Titanium Frit Sheet Feature

1. Titanium frit sheet is made from titanium powder particle

2. Titanium frit sheet is sintered in a high temperature vacuum furnace. So titanium powder particle will not shed

3. Titanium frit sheet is a good filter media for surface filtration and depth filtration

4. Titanium frit sheet has narrow pore size distribution

5. Titanium frit sheet is a good filter media in food industry and medicine industry (GMP) because titanium is an in-noxious metal and an inert metal

6. High dirt holding capacity

7. Good porosity

8. High filter rating accuracy

9. The effect of filtration is good

10. High filter efficiency

11. Good permeability

12. Pressure loss is low in filtration process

13. High flow rate at low differential pressure

14. High compression strength

15. Good mechanical strength

16. Good abrasion resistance

17. Good durability against most liquids, gases and aggressive steam

18. High temperature resistance

19. High corrosion resistance

20. Backwash

21. Washable and Cleanable

22. Reusable

23. Long service life

24. Easy to be welded, fabricated

25. Easy to be cutted into different shapes, such as circular, sheet

Titanium Frit Sheet Technical Data

Raw Material: Titanium

Filter Rating: 0.22-100 Microns

Operation Temperature: ≤ 300 ℃

Length: ≤ 800 mm

Width: ≤ 320 mm

Regular Size: 50 mm*50 mm,100 mm*100 mm,200 mm*200 mm,300mm*300 mm,800 mm* 320 mm or others

Special Size: 1000 mm*200 mm

Thickness: 1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Application

Sensor, inductor, detector, survey meter, pressure release device, polymer extrusion device, polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
