Hot Dipped Galvanized 6x10 Cchain Link Security Fence Privacy Fabric

FOB Price

USD $1.1 - $1.1 / Set

1000 Sets(Min.Order)

Supply Ability 1000000 Set / Sets per Month
Port tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	xmesh	Place of Origin	China
Model Number	CLM-003	Material	Galvanized Iron Wire
Type	Chain Link Mesh	Application	Fence Mesh
Wire Gauge	11.5gauge	Material	Galvanized Iron Wire
Aperture	50*50mm	Hole Shape	Square

Product Description

9 Gauge Hot Dipped Galvanized chain link security fabric diamond mesh for rural fencing

Galvanized hot-dipped zinc coating chain link fence is the most popular and inexpensive method for protecting chain-link fence systems. It is made from galvanized wire. Preferred for decades to define property lines and protect property, galvanized chain-link offers a versatile fencing solution that will provide years of maintenance-free protection. Galvanized chain link fencing system all the steel components are hot-dipped zinc coated and can be used for 12 years.

Made from galvanized low carbon steel wire, galvanized chain link fence has the features of resistance to moisture, corrosion resistance, excellent resistance to sudden temperature changes and high durability.


Galvanized chain link fabric diamond mesh	Galvanized chain-link fence used for sport fence

Hot dip galvanized chain link fence specifications

Wire diameter: 2.70 mm - 4.0 mm.
Mesh size: 30 mm × 30 mm, 40 mm × 40 mm, 50 mm × 50 mm, 100 mm × 100 mm.
Width: 1 m, 1.5 m, 2.0 m, 2.5 m, 5 m.
Package: 20 m/roll, 25 m/roll, 30 m/roll, 50 m/roll, 100 m/roll, or 35 kg/roll, 50 kg/roll.

Table 1 General characteristics of chain link fences with zinc (Z) or zinc alloy (ZA) coated mesh
Items	Steel post with zinc, zinc alloy coating	Posts height (m)	Pattern	Chain link fencing			Line wires (3 rows line wires)			Suitable uses
				Roll width (m)	Size mesh (mm)	Wire diameter (mm)	Spacing (mm)	Nominal diameter
				Roll width (m)	Size mesh (mm)	Wire diameter (mm)	Spacing (mm)	Low carbon mild steel (mm)	High tensile Steel (mm)
GC-90 GC-90A	90 90A	0.90 0.90	Medium Heavy	0.90 0.90	50 50	2.50 3.00	430 430	3.00 3.55	3.15 3.15	House garden fronts and divisions
GC-120 GC-120A	120 120A	1.20 1.20	Heavy Extra heavy	1.20 1.20	50 50	3.00 3.55	580 580	3.55 4.00	3.15 3.15	Playgrounds, general purposes
GC-140 GC-140A	140 140A	1.40 1.40	Medium Heavy	1.40 1.40	50 50	2.50 3.00	680 680	3.00 3.55	3.15 3.15	General purposes, railways, house garden flanks, highways
GC-140B	140B	1.40	Extra heavy	1.40	50	3.55	680	4.00	3.15	Playing fields, recreation grounds
GC-140C GC-140C	140C 140D	1.40 1.40	Medium Heavy	1.40 1.40	40 40	2.50 3.00	680 680	3.00 3.55	3.15 3.15	Railways, general purposes
GC-180 GC-180A	180 180A	1.80 1.80	Heavy Extra heavy	1.80 1.80	50 50	3.00 3.55	880 880	4.00 3.00	3.15 3.15	Commercial property
GC-180B	180B	1.80	Heavy	1.80	40	3.00	880	3.55	3.15	Railways, general safety
GC-180C GC-180D	180C 180D	1.80 1.80	Heavy Extra heavy	1.80 1.80	50 50	3.00 3.55	880 880	3.55 4.00	3.15 3.15	Industrial security
GC-180	180E	1.80	Heavy	1.80	40	3.00	880	3.55	3.15	Railways, general safety
GC-215 GC-215A	215 215A	2.15 2.15	Heavy Extra heavy	2.15 2.15	50 50	3.00 3.55	1055 1055	3.55 4.00	3.15 3.15	Commercial property
GC-215B	215B	2.15	Heavy	2.15	40	3.00	1055	3.55		Railways, general safety
GC-215C GC-215D	215C 215D	2.15 2.15	Heavy Extra heavy	2.15 2.15	50 50	3.00 3.55	1055 1055	3.55 4.00	3.15 3.15	Industrial security
GC-215E	215E	2.15	Heavy	2.15	40	3.00	1055	3.55	3.15	Railways, general safety
Note: Post Heights are of the main infill material, and exclude any ground clearance at the base, or additional height provided by extension arms for barbed wire. Post height more than 1.80 m (include 1.80 m), the top of the fence may be barbed. And the fence shall have cranked extension arms with barbed wire, increasing the height by approx. 340 mm.

Application

Galvanized chain link fence is widely used in construction, industrial and agricultural for a variety of purposes:

Creation of fences and barriers on the yard or garden.
Separation of bulk materials in construction.
Creation of exterior and interior trim before plastering.
Chain link mesh for slope vegetation.
Used for poultry fencing, Galv chain link fence is a kind of chew proofing fence, and it suitable for big dog cage. If you use polyvinyl fence, dog may chews the polyvinyl.

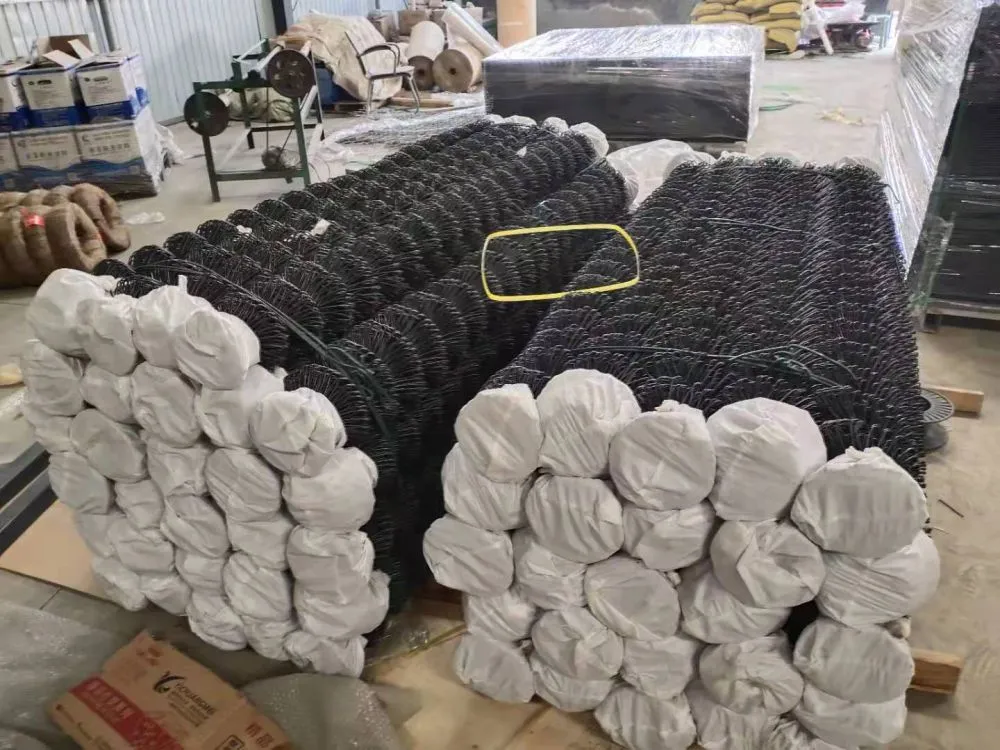

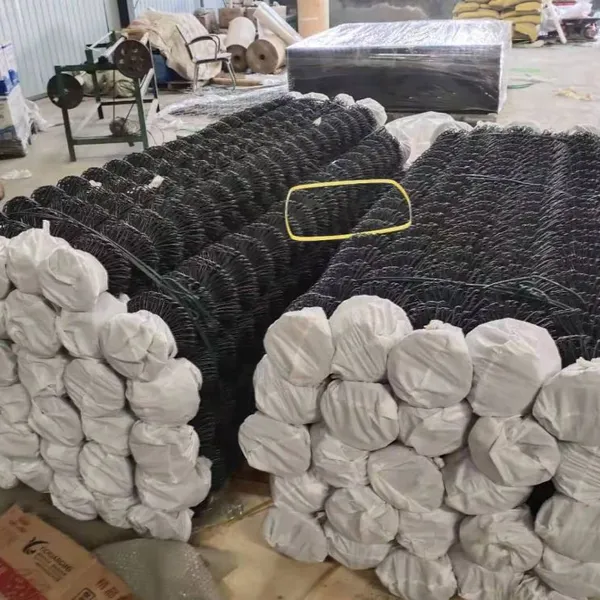

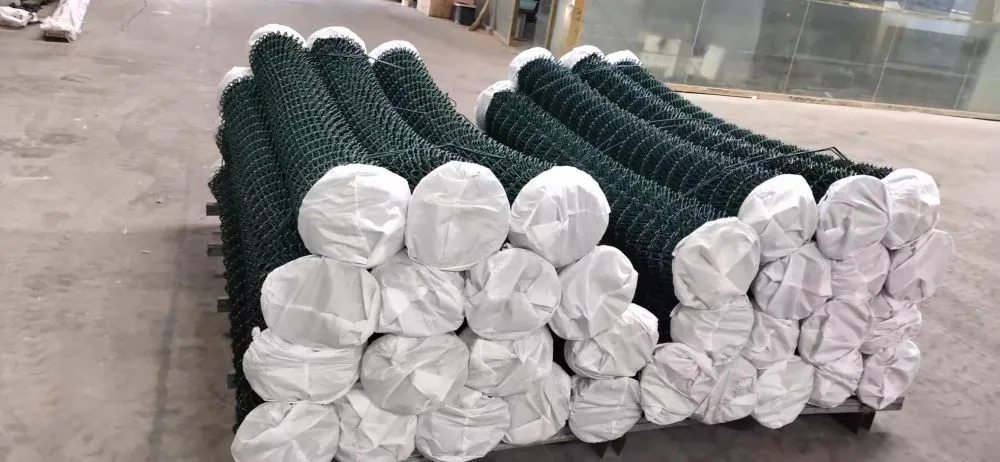

loading of chain link fence	Galvanized chain link fence roll packed in plastic bag

All our chain link fences are backed by a 10 year warranty from the manufacturer.
