Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole

Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole photo-1
Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole photo-2
Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole photo-3
Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole photo-4
Portable Extension Pole,outdoor Lighting Pole Price,portable Telescopic Pole photo-5
US$ 400 - 700 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Talents pneumatic telescopic mast
Place of Origin:
Tianjin, China
Model Number:
05-Talents-mast
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Talents pneumatic telescopic mast
Place of Origin Tianjin, China
Model Number 05-Talents-mast
Product Description
portable extension pole,outdoor lighting pole price,portable telescopic pole
technical data
main spec.
1)Extended height: 6m
2)Retracted height: 2m
3)Outer diameter range:66-82-98-118mm
4)Thickness: 3-3.5-4-4mm
5)Maximum head loads: 30kgs
 6)Number of sections: 4 sections
7)Wind load :100 km/h
8)Max Working pressure of air compressor:0.25MPA
9)Working temperature :-15--+60℃
10)cable:1pc CAT5 for camera+2pcs AWG14 for light+2pcs RG59 for VHF antenna
All cables installed inside of mast
Accessories
Car clamp--------------------------------------------------1 unit
Ground anchor------------------------------------------8 pieces
Guy wire----------------------------------------------------8 pieces
Air pump---------------------------------------------------1 piece
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Al-Mg alloy 6063
Color
light brown with
Detailed Images
portable extension pole,outdoor lighting pole price,portable telescopic pole

Bottom flange

mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.

locking

Designed for long-term use. For preventing the mast slide down.

power cable

can be inside or outside of mast

accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a t
ruck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories

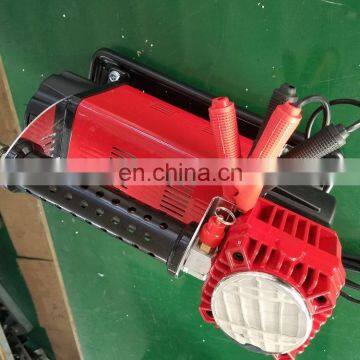

Control box:With the swift for up and down, small air compressor

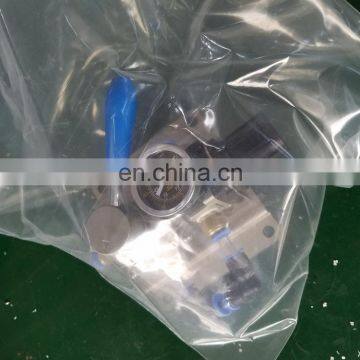

Air pipe,Pressure gauge

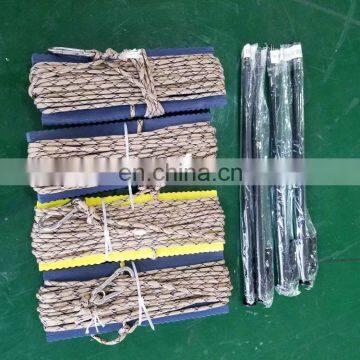

Basic guy accessories

manual hand pump

Packing & Delivery

portable extension pole,outdoor lighting pole price,portable telescopic pole

Packing details
C/NO.
DESCRIPTION
QTY
(UNIT)
N.W.
(KG)
G.W.
(KG)
MEAS
(CM)
1
Pole : ------------------1 unit
accessories---------1 set
1
50.00
70.00
230*30*40
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
max. head loads(kg)
self weight
(kg)
2
2
1.3
118-98
150
22
3
4
1.1
87-43
30
25
6
5
1.7
118-51
30
42
8
7
1.8
140-36
30
65
10
7
2.20
140-36
30
72
12
7
2.6
140-36
15
85
15
7
3.0
140-36
20
90
16
8
3
180-51
30
175
18
10
3
279-66
100
330
20
9
3.3
229-66
55
300
30
13
4
316-51
30
630
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1)the  mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic  mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2)the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic  mast. Its connection must be solid and reliable.
