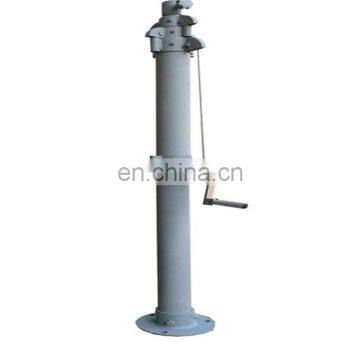

6m 8m 12m 20m Antenna Telescopic Mast Truck Mounted

                                       6m 8m 12m 20m antenna telescopic mast truck mounted

Color of antenna telescopic mast

the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.

Technology: painting

Specifications of antenna telescopic mast

Closed length:1.7m (Bottom base included)
Extended length: 12m (Bottom base included)
Wind load: working rate:25m/s Max rate:35m/s
Temperature: working temp:-40--+50C Storage Temp:-55--+70C

Pay loading: 20kg

Accessories:

Nylone Pulling cord(OD 8mm)----------------------3 units
Ground / wall bolts-------------------------------------8 pieces
Handle lifting bar---------------------------------------2 pieces
Wall brakets---------------------------------------------2 units
Plate(OD:15cm)-----------------------------------2 pieces

Bottom base: Diamerer:220mm  Thickness: 10mm

Material:

Main Pole: aluminum alloy 2A12 T4
Pulling cord(OD:8mm): nylon
Ground / wall bolts:stainless steel
Handle lifting barWall brakets:Iron steel

PACKING:

 One unit of antenna telescopic mast(main pole and all accessories) to be wrapped with Poly tapes and then two units to be packed into a plywood case with metal belts reinforced.

1 plywood case=2 units of antenna telescopic mast

WARRATY PERIOD:

    Except the damages due to misuse,unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confimed by the seller through photos and description.

Installation Instructions:

1)The antenna telescopic mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted lifting rod will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The antenna telescopic mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the lifting rod. And the distance between two points should be longer than 2/3 of the height of lifting rod. Its connection must be solid and reliable.
