LIGHT-DUTY TELESCOPIC CRANK MASTS

Dingzhou City Great Wall Daily Chemical Factory
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-1
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-2
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-3
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-4
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-5
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-6
LIGHT-DUTY TELESCOPIC CRANK MASTS thumbnail-7
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-1
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-2
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-3
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-4
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-5
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-6
LIGHT-DUTY TELESCOPIC CRANK MASTS photo-7
US$ 552.3 - 658 MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
Talents
Place of Origin:
Tianjin, China
Model Number:
Tal-AXT6M
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Talents
Place of Origin Tianjin, China
Model Number Tal-AXT6M
Product Description

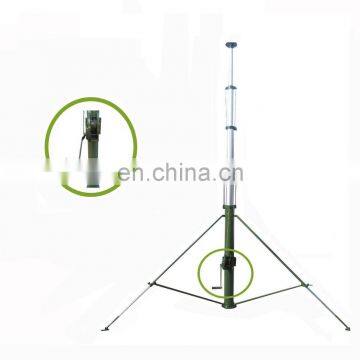

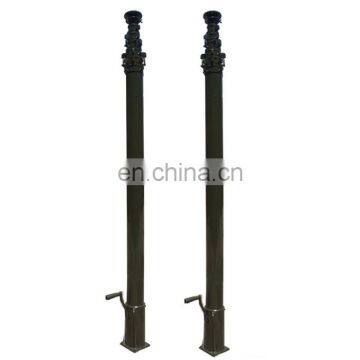

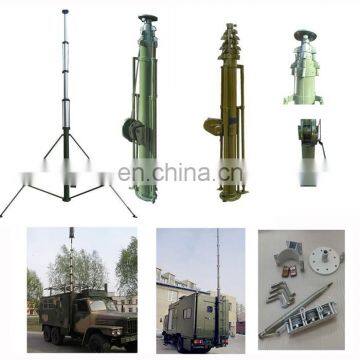

vehicle mounted 6m pneumatic telescopic mast for camera

          manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

          rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
          depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
          situation.
          Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
          upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
          no rain go in.
          The mast available extended height is 2m to 35m.The payload up to 300kg from 5kg.
          It can help lamplight,camera,ham radio,photography,antenna.......
          It can be used on the ground or vehicle mounted or the wall......
Specification for 15m.
Article number
 TAL-M6-1.7-10
Lifting method
manual lifting
Closed length and extended length
1.7-6m
material
for main tube:alluminun alloy
net wieght
18kgs( include tripod and other accessories)
Max payload
10kgs
wind load
100km/h
temperature
-40--+50℃
sections
5
outer tube diameter
42-55-69-83-98mm
reference bottom base
Diameter:190mm Thickness: 10mm
Details

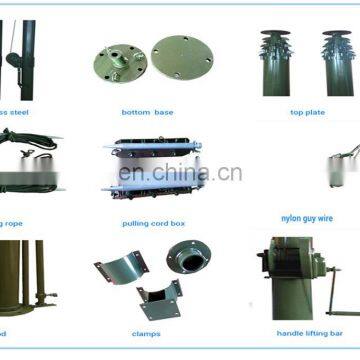

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Certifications
Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended  height
(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
3
3
1.0
70-90
15
20
4
3
1.5
50-80
15
30
4
3
1.0
70-90
16
20
4
3
1.6
60-80
14
10
5
4
1.65
50-80
17
10
5
5
1.2
40-90
20
15
5
5
1.5
50-90
20
60
5
6
1.7
60-130
35
100
6
5
1.7
50-90
21
10
6
6
1.5
60-130
40
100
6
7
1.3
40-130
32
60
7
7
1.8
40-105
23
30
8
8
1.5
40-130
34
20
9
7
1.8
40-105
25
40
9
7
1.8
40-105
25
30
9
7
1.8
60-160
43
100
9
7
1.9
30-90
25
5
10
7
1.95
30-90
26
10
10
7
2
30-105
31
40
12
7
2.2
30-90
28
10
12
7
2.1
30-90
28
15
12
8
2.2
40-130
44
40
15
8
2.45
30-105
33
10
15
9
2.6
30-130
40
35
15
7
2.5
70-200
200
70
16
8
2.6
30-105
35
10
18
9
2.7
30-130
47
10
18
9
3.2
30-130
48
30
18
7
3.7
50-130
47
100
20
9
2.95
30-130
55
10
20
8
3.20
40-130
58
20
22
9
3.15
30-130
58
10
25
10
3.4
30-150
72
10
25
10
3.5
80-280
90
250
25
9
3.6
40-150
71
20
30
10
3.85
30-150
84
10
35
10
4.5
40-180
130
25
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company


       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
