satellite telescopic mast military on trailer 8.4m
- 300 Set / Sets per Month
- Port of Tianjin China
- T/T Credit Card
You May Like
-
wholesale 3m motorized lifting telescopic pole
-
8m electric motorized lifting telescopic mast for sale
-
10m electric telescoping mast motorized crank up tower mast 15kg load mast in silver
-
China made 3m motorized lifting telescopic mast
-
12m heavy load motorized telescoping tower pole electric pole 200Kg load
-
10m electric aluminium telescoping mast without painting telescoping high pole 7 sections
Product Details
| Brand Name | TALENTS | Place of Origin | Tianjin, China | |
| Model Number | TAL-E8.4-1.9-20 |
Product Description

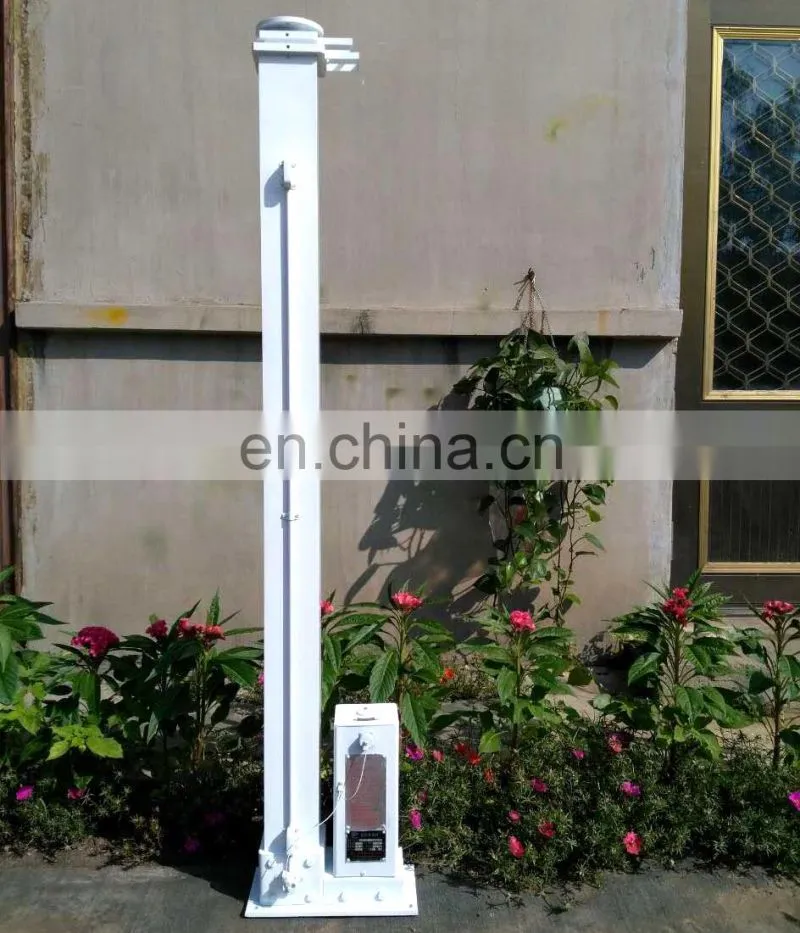

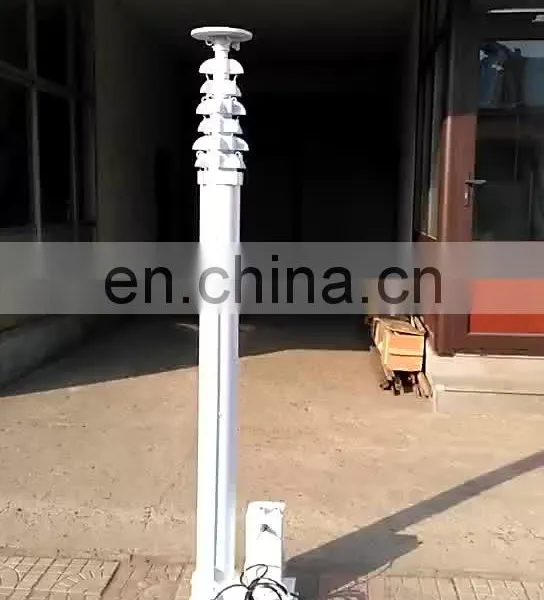

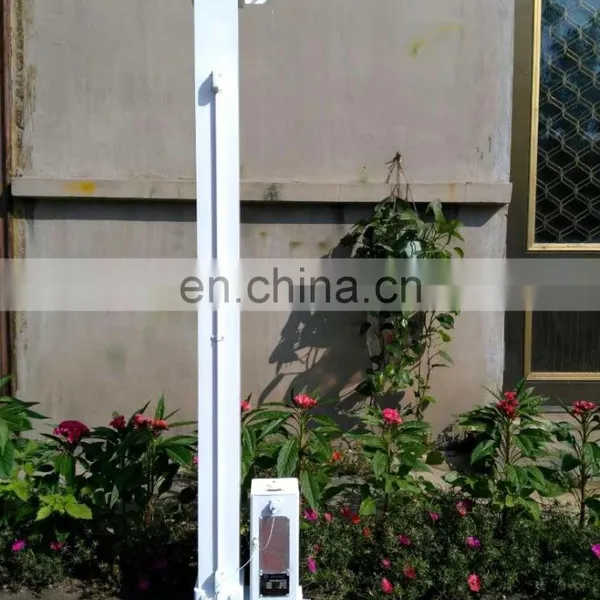

satellite telescopic mast military on trailer 8.4m
satellite telescopic mast military on trailer 8.4m
Specification list
| Article number: | TAL-E8.4-1.9-20 |
| Max top payload: | 20kgs |
| Closed length: | 1900mm |
| Extended length: | 8400mm |
| Main poles' sections: | 6 sections |
| sec.1#(OD/ID/thickness): | 90/86/2.0mm |
| sec.2#(OD/ID/thickness): | 80/76/2.0mm |
| sec.3#(OD/ID/thickness): | 70/66/2.0mm |
| sec.4#(OD/ID/thickness): | 60/56/2.0mm |
| sec.5#(OD/ID/thickness): | 50/46/2.0mm |
| sec.6#(OD/ID/thickness): | 40/36/2.0mm |
| Bottom base size (L/W/thickness): | 450/210/12mm |

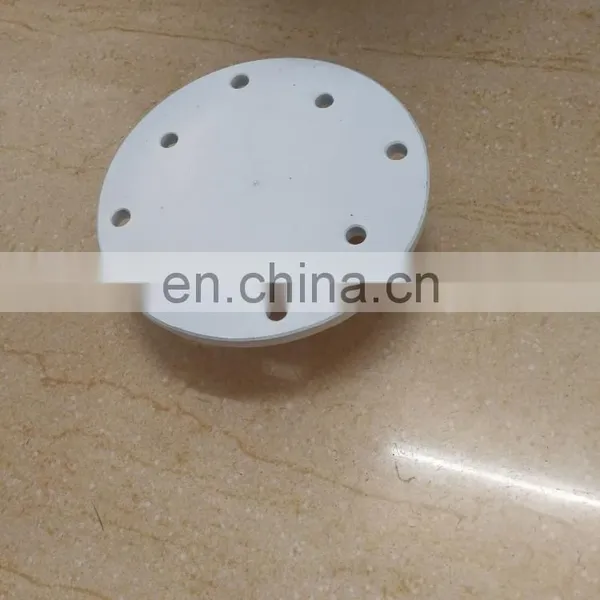

| Top plate size (dia./thickness): | 120mm/10mm |
| Working temperature: | -40--+50C |
| Mortor power: | AC220V/300w |
| Wind load: | 100km/h to 120km/h |
| Pulling cord's OD: | 2mm |
| Material for main pole: | aluminum alloy 6063B and 2A12T4 |
| Material for bottom base: | iron steel |
| Material for accessories: | iron steel |
| Material for pulling cord: | stainless steel |
| Material for other asscessaires | iron steel |

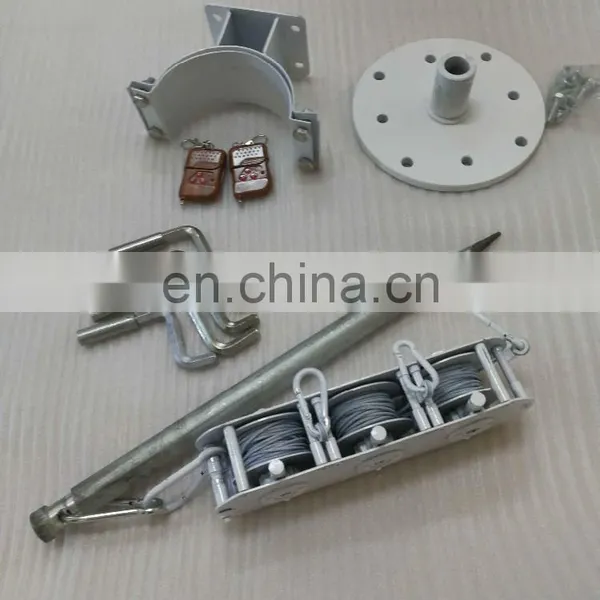

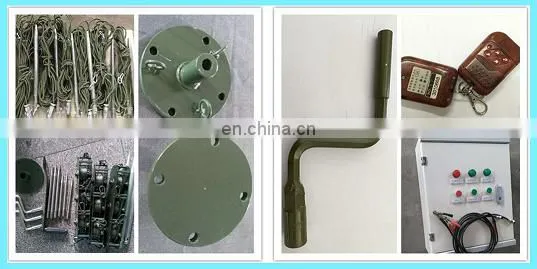

Packing list:
| Mian pole in 3 sections: | 1 set |
| Mortor(DC12v/370w): | 1 set |
| Handle lifting bar: | 1 piece |
| Electrical equipment control box: | 1 set |
| Remote controller: | 2 pieces |
| Bottom base: | 1 piece |
| top plate: | 1 piece |
| Pulling cord box with handle bars: | 3 sets |
| Ground anchor: | 3 pieces |
| Clamp: | 1 piece |
| tripal: | 1 set |

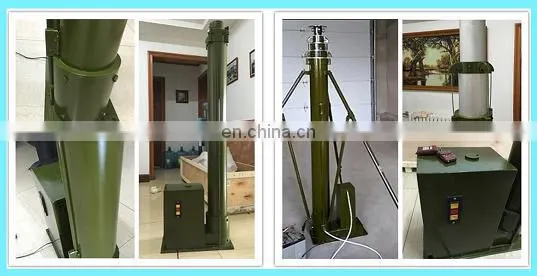

| Surface color Technology: | Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color. |

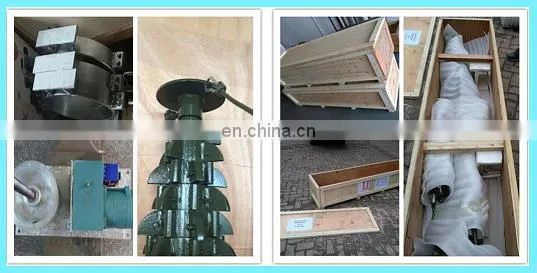

| Packing method: | the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case |
satellite telescopic mast military on trailer 8.4m
1. The telescopic mast is made of aluminum alloy or stainless steel tube.
2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,
photography, meteorological measurement equipments rise and drop to a certain
height after its work.

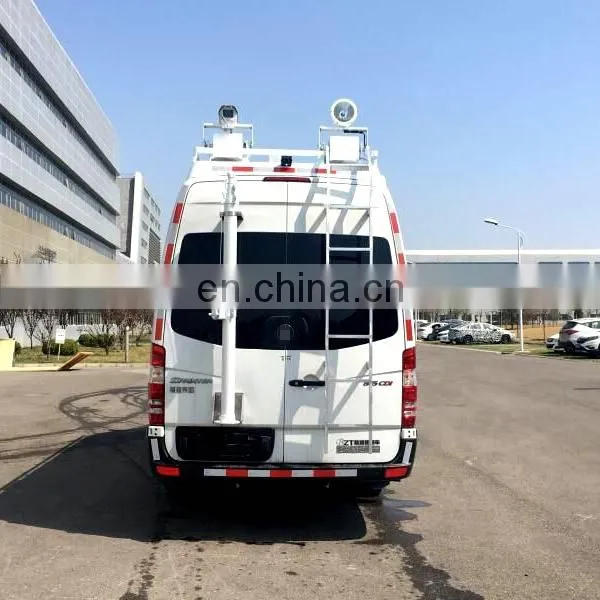

3. It can be mounted on the vehicle or stand on the ground with tripod.
4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m
and closed length to 1.3m.
5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.
Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting
telescopic masts available for supply as follows, please refer to the catalogue attached below:
Mortorized lifting telescopic mast
| Article No. | Retracted height (mm) | Extended height (mm) | Diameter range (mm) | Section No.s | top payload (kgs) |
| TAL-2M-30 | 1000 | 2000 | 40-60 | 3 | 30 |
| TAL-2M-100 | 1200 | 2000 | 105-130 | 2 | 100 |
| TAL-3M-250 | 1750 | 3000 | 90-130 | 3 | 250 |
| TAL-4M-250 | 1800 | 4000 | 90-130 | 3 | 250 |
| TAL-4M-10 | 1550 | 4000 | 40-80 | 4 | 10 |
| TAL-4M-50 | 1200 | 4000 | 60-130 | 6 | 50 |
| TAL-5M-150 | 1400 | 5000 | 60-160 | 6 | 150 |
| TAL-5M-600 | 1600 | 5000 | 60-150 | 5 | 600 |
| TAL-6M-10 | 1700 | 6000 | 40-90 | 6 | 10 |
| TAL-6M-50 | 1700 | 6000 | 50-105 | 6 | 50 |
| TAL-8M-30 | 2200 | 8000 | 40-105 | 6 | 30 |
| TAL-10M-30 | 2450 | 10000 | 40-105 | 7 | 30 |
| TAL-12M-200 | 2450 | 12000 | 70-160 | 7 | 200 |
| TAL-12M-35 | 2300 | 12000 | 40-130 | 7 | 35 |
| TAL-12M-100 | 2700 | 12000 | 50-130 | 7 | 100 |
| TAL-15M-20 | 2800 | 15000 | 40-105 | 7 | 20 |
| TAL-15M-30 | 2800 | 15000 | 50-130 | 7 | 30 |
| TAL-15M-300 | 2700 | 15000 | 60-155 | 7 | 300 |
| TAL-20M-200 | 3700 | 20000 | 70-230 | 7 | 200 |
| TAL-25M-80 | 3400 | 25000 | 60-230 | 10 | 80 |
| TAL-25M-60 | 3400 | 25000 | 60-210 | 10 | 60 |
| TAL-28M-15 | 3700 | 28500 | 30-130 | 10 | 15 |
| TAL-35M-10 | 3900 | 35000 | 30-180 | 11 | 10 |
Welcome to contact
contact person: Ms.Grace Wang Talents Enterprise Company Limited
T: 86 22 28376666 | F: 86 22 28376667 | wechat: 1093812653
Skype:talents106 whatsapp:0086 18222428293
