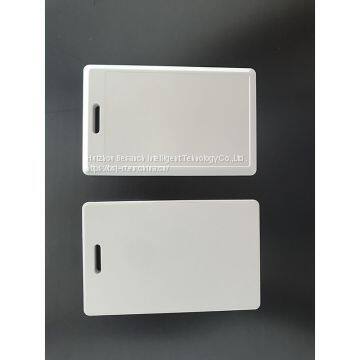

BSJ-E601B standard card type 2.4g active RFID electronic tags

BSJ-E601B  standard card type 2.4g active RFID electronic tags

              BSJ-2400B  elevation                       BSJ-2400B  inverse -elevation

Diagram 2-1: 86mm×54mm×5.5mm

BSJ-E601B  standard card type 2.4g active RFID electronic tags have the following features：

Ø  The tag has a global unique ID number，Tag ID number 4 bytes；

Ø  Non-replaceable battery；

Ø  Low power consumption and long service life；

Ø  Wide operating temperature range；

Ø  Read distance far；

Ø  Operating temperature: -70°C ~ 25°C；

Ø  Storage temperature: -85°C ~40°C；

Ø  Working humidity: less than 95%；

Ø  Dimensions：86mm×54mm×5.5mm

Ø  Operating voltage: 3V (2 CR2032)；

Ø  Static (standby) operating current: 1uA;

Ø  Maximum operating current (emission signal):<15mA；

Ø  Launch time：0.25us；

Ø  Working frequency: 2.4GHz-2.5GHz (factory setting);

Ø  Work style: active；

Ø  Transmission power: less than 1mW (0dBm) (factory settings)；

Ø  read distance: 0-250 m；

Ø  Working life: 3 years (theoretical value)；

Ø  Working voltage: 3V;

Ø  Query time: 1s；

Ø  Collision capability: it has a strong anti collision ability, can read the number of cards >2000;
