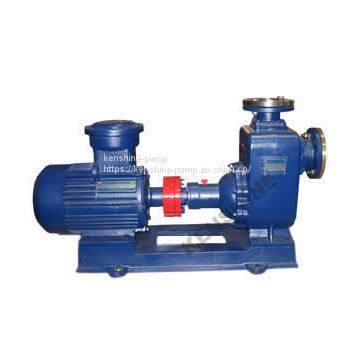

WCB Portable gear oil pump
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 7 days
Product Details
| Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | WCB-75 |
| Application: | Other, oil transfer pump | Fuel: | Other, electric motor | Power: | Electric |
| Usage: | Oil | Theory: | Rotary Pump | Standard or Nonstandard: | Standard |
| Structure: | Gear Pump | Pressure: | Low Pressure |
Product Description
WCB portable gear pump can transport inflammable liquid such as gasoline and corrosive liquid. It adopts cast-aluminum shell explosion-proof motor, stainless steel gear, stainless steel pump body, which has strong reliability and self-priming ability, compact structure and easy to use
WCB portable gear pump can transport gasoline alcohol methanol xylene and other flammable and explosive liquids and corrosive liquids.
WCB Gear pump features:
· easy maintenance
· reliable performance
· long service life
· simple appearance
· advanced and reasonable structure
· the conveying temperature shall not be higher than 70 degree Celsius
Motor: Single phase:220V, Three phase:380V
Pump material: cast iron, stainless steel
Steel gear ,bronze impeller
Explosion proof motor
| Technical Specification | |||||||
| Model | Size(mm) | Flow(L/min) | Head(m) | Power(KW) | Valtage(V) | Speed(rpm） | Gear Material |
| WCB-30 | 20 | 30 | 30 | 0.37 | 220/380 | 2800/1450 | Stainless teel/Bronze |
| WCB-50 | 20 | 50 | 30 | 0.55 | 220/380 | 2800/1450 | |
| WCB-75 | 25 | 75 | 30 | 0.75 | 220/380 | 2800/1450 | |
| WCB-100 | 32 | 100 | 30 | 1.1 | 220/380 | 2800/1450 | |
