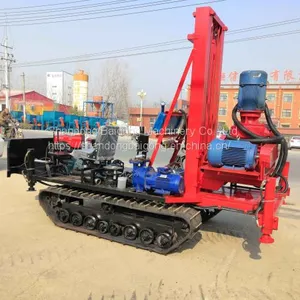

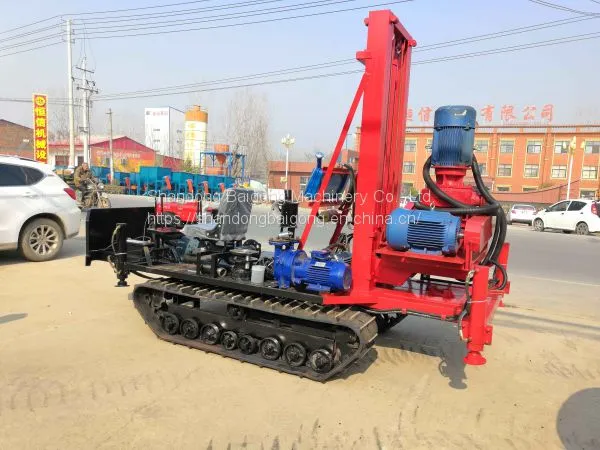

The BF-150 reverse circulation drilling rig
- 100 Set / Sets per Month
- Qingdao
- T/T Other
- 15 days
Product Details
| Brand Name: | Bafang | Place of Origin: | China | Model Number: | BF-150 |
| Type: | Rotary Drilling Rig | After-sales Service Provided: | No overseas service provided | Weight: | 13.5T |
| Dimension(L*W*H): | 7.5m×2.2m×2.8m | Power Type: | Electric | Usage: | Water Well |
| Condition: | New | Power(W): | 120000W |
Product Description
The BF-150 reverse circulation drilling rig is an electric rotary drilling machine. It is an ideal hole-forming machine for pouring piles. It is suitable for silt, clay, gravel layer and weathered rock shale. It is more suitable for the foundation of many complicated layers such as gravel layer. Construction is therefore an ideal equipment for large-scale construction of bridges, buildings, water conservancy, electric power, telecommunications, engineering precipitation, etc.
Second, the rig structure and working principle
BF-150 reverse circulation drilling machine multi-function drilling rig is composed of electric motor, reducer, vacuum pump, hydraulic oil pump, main winch, auxiliary winch, oil cylinder, distribution box, drill stand, drill pipe, drill bit, reducer: rig reduce Deceleration for four-axis three-stage gears.
Drilling diameter | ≤3.0m |
Drilling depth | 150m |
Diesel generator (power) | 120KW |
Spindle power | 22KW |
Mud pump power | 37KW |
Spindle speed | 8r/min |
Spindle torque | 2470kg/m |
Mud pumping | 420m3/h |
Main roll lifting force | 90KN |
Wire rope specification | ф16×6×37 |
Wire rope capacity | 50m |
Drill pipe double-head threaded rib connection | ф220×2m |
Drill tower height | 7.3M |
Overall contour (length × width × height) | 7.5m×2.2m×2.8m |
Host weight | 13.5T |
