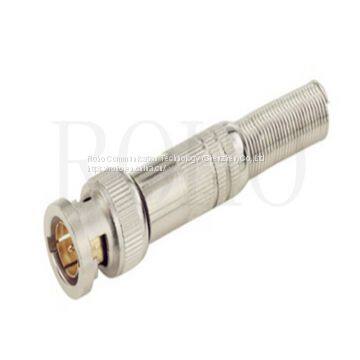

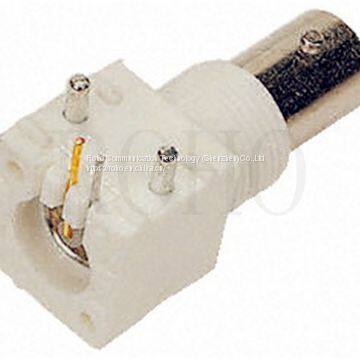

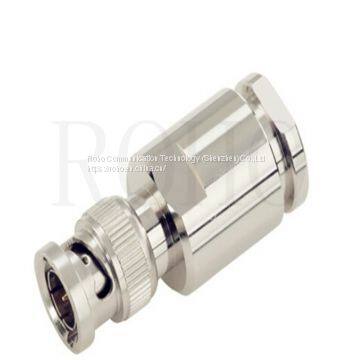

BNC Female to Female RF Coaxial Cable Connectors for CCTV Camera
US$ 0.67 - 5.37
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Port of Shipment:
Shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Right Angle BNC Compression Connector RF ConnectorUS$ 0.67 - 5.37MOQ: 100 Pieces -
BNC Connectorrf Coaxial Male Crimp Solder BNC Plug Connector for Bt3002 CableUS$ 0.67 - 5.37MOQ: 100 Pieces
-
Straight BNC Female Ez Crimp for LMR400 CableUS$ 0.67 - 5.37MOQ: 100 Pieces
-
Connector, BNC Male to F Female, Coaxial Cable Connector, CATV Connector, RF Coaxial Connector, Multimedia Speaker, Loudspeaker, BNC ConnectorUS$ 0.67 - 5.37MOQ: 100 Pieces
-
BNC RF Series BNC Connector FemaleUS$ 0.57 - 5.37MOQ: 100 Pieces
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range (for connector interface) | DC～4GHz |
| Dielectric withstanding Voltage (at sea level) | 1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) | 500V rms, 50Hz (depending on cable) |
| Insulation resistance | ≥ 5000 mΩ |
| Contact resistance | centre contact≤1.5mΩ |
| outer contact: ≤ 1 mΩ | |
| RF-leakage (between 2÷3 GHz) | ≥55 dB |
| MECHANICAL DATA | |
| Coupling nut torque | 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
| Coupling nut retention force | ≥450N / 101.2 lbs |
| Contact captivation | ≥27N / 6.1 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Ni plating |
| Pin contacts | Brass--Au / Ag plating |
| Socket contacts | Copper--beryllium Au / Ag plating |
| Crimp ferrules | Copper alloy--Ni plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
