Home > Products > BNC Series RF Coaxial Connector > RF Adapters BNC St J/J BNC Female to BNC Female Connector

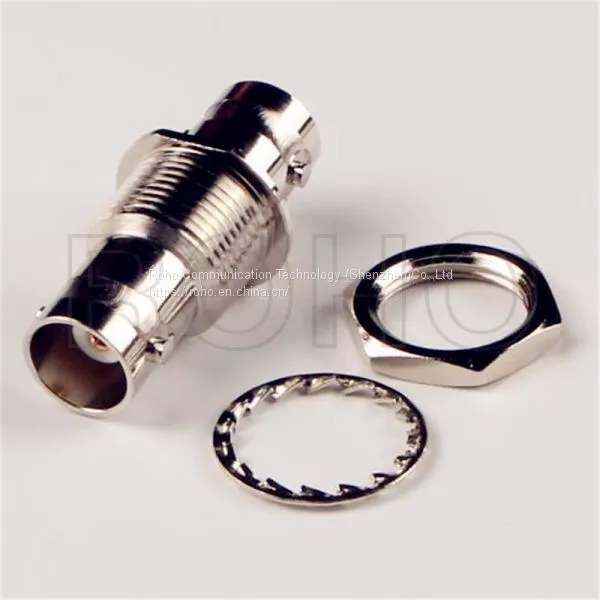

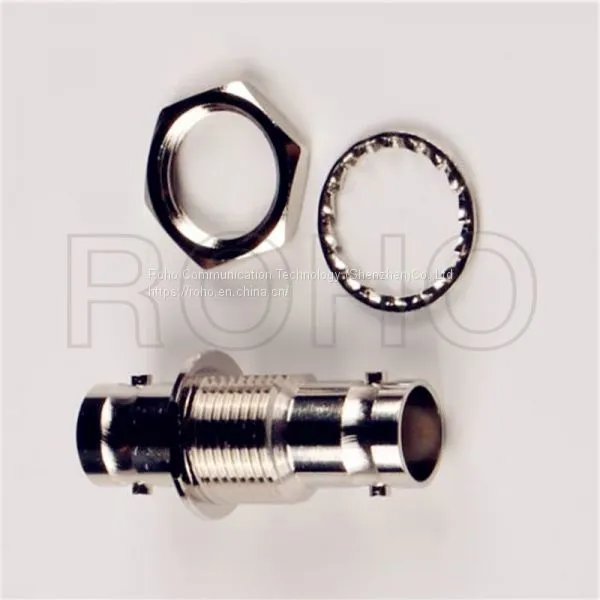

RF Adapters BNC St J/J BNC Female to BNC Female Connector
USD $0.57 - $5.37
/ Piece
100 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C
- 7 days
You May Like
-
RF Connector BNC Straight Male Plug Crimp for Rg59/60 Cable
-
RF Coaxial BNC Plug Socket Connector for RG6 Cable
-
RF Coaxial Plug Male Crimp BNC Connector for Rg179 Cable
-
RF Coaxial Plug Male Crimp BNC Connector for Rg179 Cable
-
BNC Female Connector for Rg316 RF Coaxial Cable
-
BNC Female Jack Male Bulkhead Nickel Plated PCB RF Coaxial Connector
Product Description
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range (for connector interface) | DC～4GHz |
| Dielectric withstanding Voltage (at sea level) | 1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) | 500V rms, 50Hz (depending on cable) |
| Insulation resistance | ≥ 5000 mΩ |
| Contact resistance | centre contact≤1.5mΩ |
| outer contact: ≤ 1 mΩ | |
| RF-leakage (between 2÷3 GHz) | ≥55 dB |
| MECHANICAL DATA | |
| Coupling nut torque | 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
| Coupling nut retention force | ≥450N / 101.2 lbs |
| Contact captivation | ≥27N / 6.1 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Ni plating |
| Pin contacts | Brass--Au / Ag plating |
| Socket contacts | Copper--beryllium Au / Ag plating |
| Crimp ferrules | Copper alloy--Ni plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
