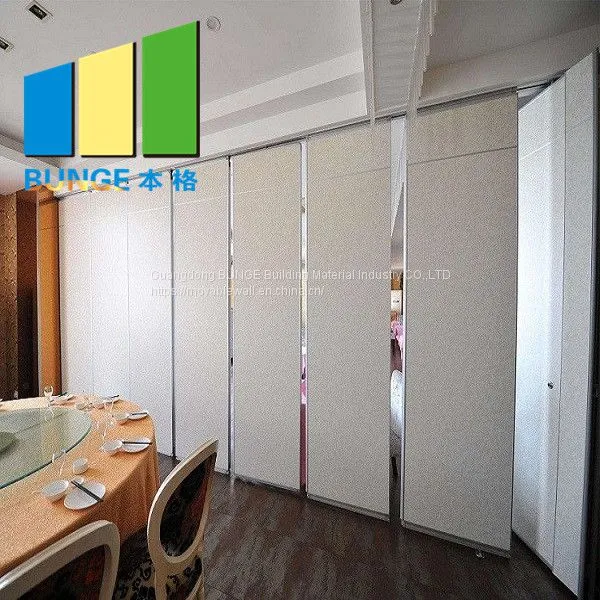

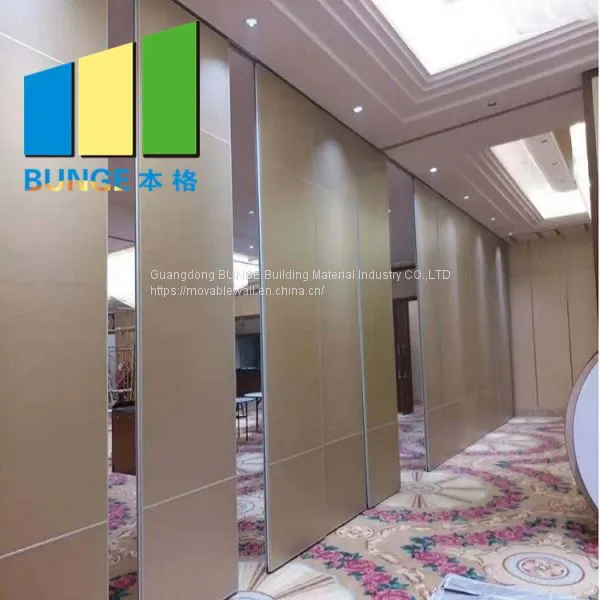

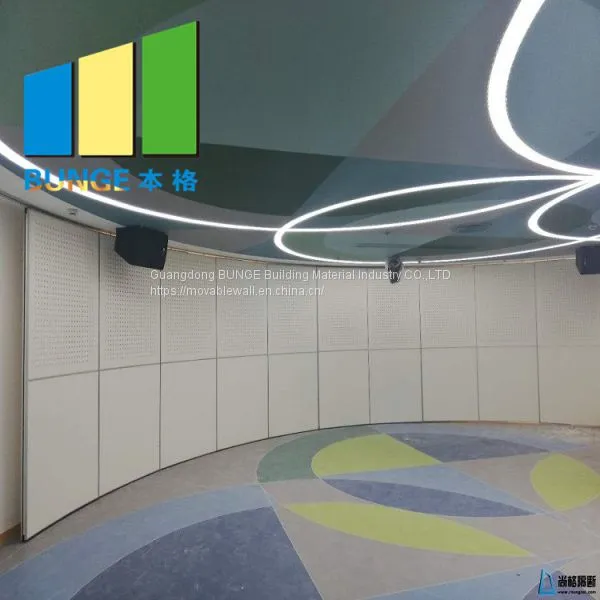

Banquet Hall Acoustic Movable Partition Walls Soundproof

The product description

Sound insulation movable wall is hanging on ceiling , able to right-angle turn 90 degrees freedom to travel, can flexibly to promote to other collection space, can need according to different space use, the interval of the multiple independent small space. he vertical contact of each single partition is connected by concave and convex positions, embedded with sealing tape, and the upper and lower top are equipped with a telescopic sound insulation sealing mechanism. he sound transmission is well considered, which greatly improves the sound insulation seal of the partition.

Partition model has 65 (65mm thick), 85 (85mm thick), 100 (100mm thick), ultra high type, partition datum material has gypsum board, medium fiber board, glass magnesium board, color steel plate, sound-absorbing board, melamine board and other panels to choose from, its structure and frame using 6063-t6 reinforced aluminum alloy production.

Components of Sliding Partition Walls

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.

Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.

Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.

Handle: Operate the retractable being up and down.

Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.

MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

Partitions wall usage

Our products (Movable Partitions and Acoustic Panels) are widely used in the hotel banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals auditorium, stadium and so on

About us

Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.
