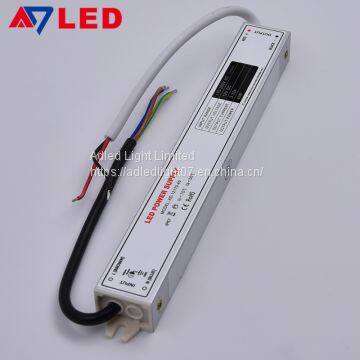

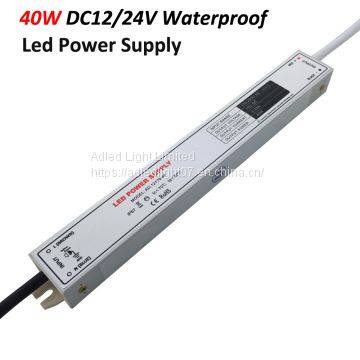

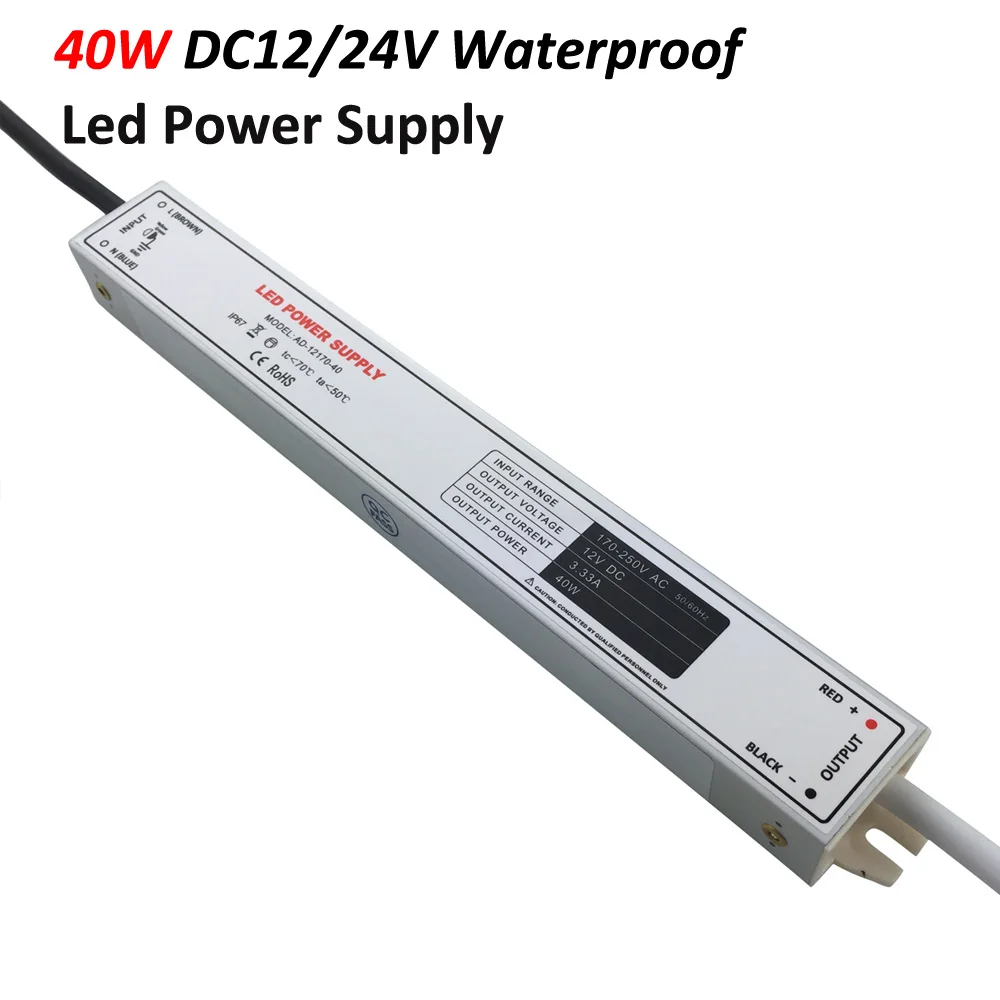

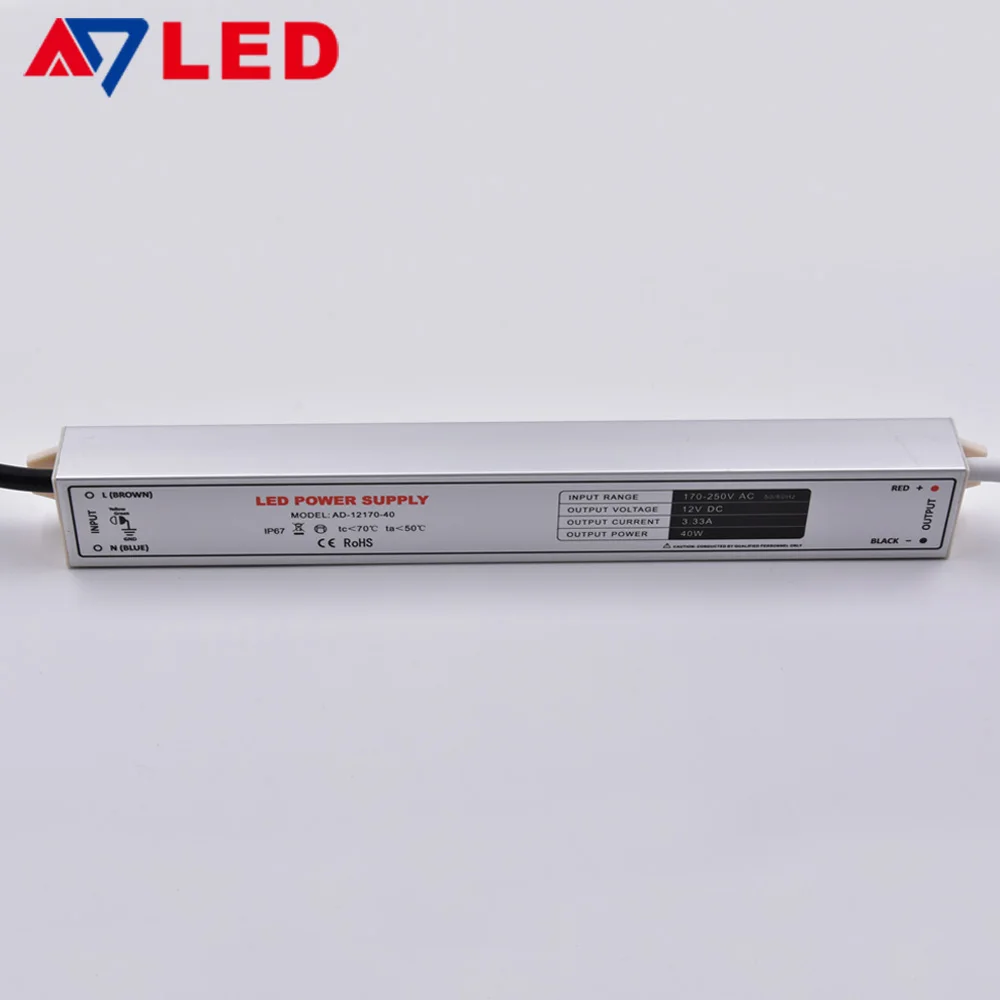

Waterproof led driver constant voltage led transformer 40w 12V 3.3A IP67 led power supply
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Other
- 3 days
- Wide input voltage ip67 110-250v 250 watt led driver with dimmer
- Sable constant voltage output 250w dimmable led driver to led street lighting
- SMD5050 2leds Aluminium base IP65 injection ads led signage light
- 2leds SMD5050 injection 0.48W 42lm new led module for small depth channel letters
- Shenzhen ADLED led module 2835 lens for led signs
- Shenzhen mini high power 28358 0.72W 56lm injection led modules manufacturer
Product Details
Type: | Other, AD-12170-40W |
Product Description
Parameters:
Waterproof led driver constant voltage led transformer 40w 12V 3.3A IP67 led power supply | ||
Model | AD-12170-40W | AD-24170-40W |
Output voltage | DC12V | DC24V |
Rated Power | 40W | 40W |
Output current | 3.3A | 1.6A |
Input voltage | 110-240v AC 50-60Hz | |
Conversion Efficiency | 90% | |
Ripple noise | <100mVp-p | |
Line regulation | <1% | |
Load regulation | <1% | |
Waterproof grade | IP67 | |
Working temperature | -30~+50℃ | |
Storage temperature | -40~+80℃ | |
Warranty | 3 years | |
Certificate | CE,RoHS,EMC,LVD | |
Dimension | L242*W30*H21 mm |
Features:
1. Easy for installation
2. High transfer efficiency
3. Wide input voltage(110-250v)
4. Sable constant voltage output
5. IP67 for indoor & outdoor use
6. 100% full loading, 100% burn-in tested
7. Overload/short circuit protection
LED Transformer series:
LED Lights series :
Applications:
Led power supply provide power to led modules
Led power supply provide power to led strip lights
Led power supply provide power to led street lighting
Led power supply provide power to fishing lamp
Led power supply provide power to led neon lights
Led power supply provide power to led harbor lighting
Led power supply provide power to led building architectural lighting
Led power supply provide power to led bay lighting
Certificates:
Exhibitions:
Why choose ADLED?
1. We have 8 years of one stop solution for illuminated signs and advertising light box.
2. You will get reply within 24 hours
3. Strictly quality control system
4. Make sure the consistency of each batch of orders, including the same bin color temperature
5. OEM & ODM services
FAQ
1. How many different types of led power supply can you supply?
We can supply Economical led power supply, Mean Well led power supply, desktop led power supply, Constant current led driver, etc.
2. What voltage can you supply?
Input voltage from 85v to 480v
Output voltage from 12v to 80v
3. What current can you supply?
Output current from 170mA to 18A
4. What is your delivery time?
Around 1-15 days
5. What is your MOQ?
1pcs can be supported.
6. How many years warranty do you provide?
3 years
