Home > Products > FR4 Circuit board > Double-Sided PCB Manufacturing Charging Cabinet Circuit Board

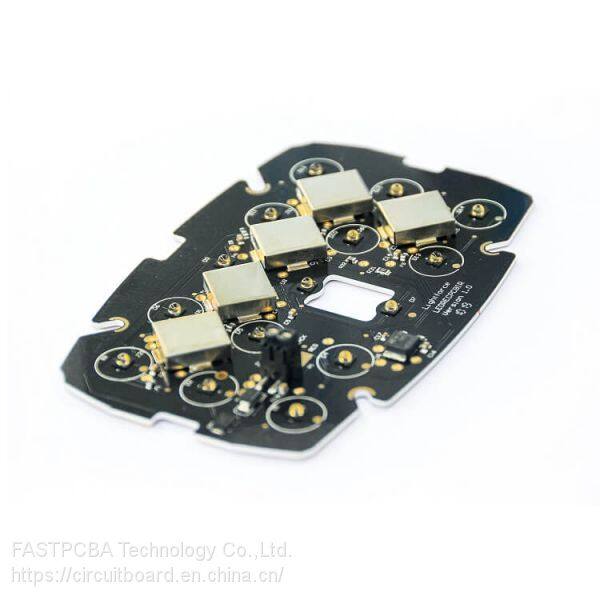

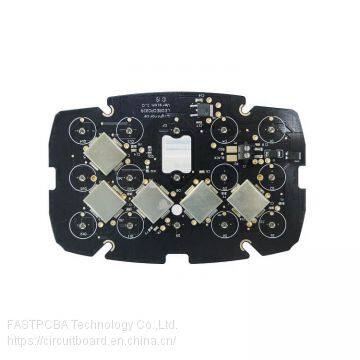

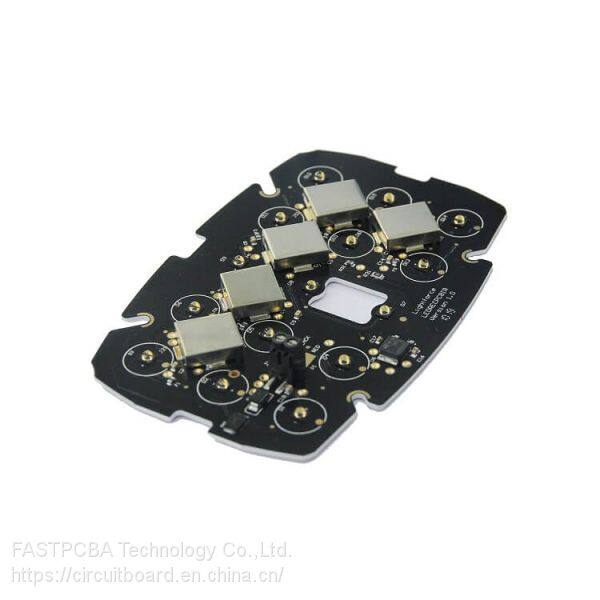

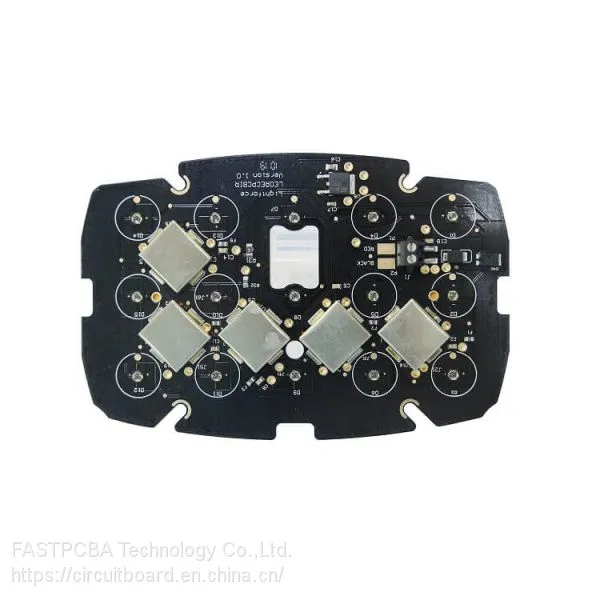

Double-Sided PCB Manufacturing Charging Cabinet Circuit Board
- 556669 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
Product Details
| Brand Name: | FASTPCBA | Place of Origin: | China | Surface Finishing: | Hot-air solder leveling |
| Min. Line Spacing: | 0.10mm-0.075mm | Min. Line Width: | 0.10mm-0.075mm | Min. Hole Size: | 0.25mm--0.60mm------0.60mm-0.80mm |
| Board Thickness: | 10:1--12:1 | Copper Thickness: | 8.75um--175um----8.75um--280um | Base Material: | FR-4 |
Product Description
Basic information about the product:
Product Classification: PCBA
Product code: 2P6401A0-PCBA
Product Name: Main Control Board
Circuit board product use: charging cabinet
Production process: lead-free soldering process
Pcb sheet information: double sided FR4, board thickness 1.6mm, TOP and BOTTOM copper foil thickness 1 Oz (outer copper thickness), single piece size 100*80MM, green oil white. Lead-free spray tin
Order Quantity: 220pcs
Production cycle: 6 days
Product process description:
SMT points: 153
Dip points: 6
Wu Lin: half of the customer supply materials, half of the suppliers, U10 number material supply
MOQ requires materials to be purchased according to MOQ
Solder paste requirements for boards: Ag0.3/Cu0.7/20-38uM
Reflow temperature: The maximum welding temperature is 245-250 °C, and the welding time is over 40-60S.
Circuit board cleaning method: The washing water cannot corrode to the internal contacts of the connector.
