2019 New Produce Oilfield Equipment Well Drilling Oil and Gas Test Rig Mast Derrick
US$ 7355 - 13235
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
STAR
Place of Origin:
China
Model Number:
JJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai/Guangzhou/Lianyungang
Delivery Detail:
15 days
Related Products
-
Oilfield Well Drilling Rig Mat Strong Carrying Capacity Composite FoundationUS$ 368 - 1323MOQ: 1 Piece -
Factory Manufacture Supply Drilling Rig Crane Lift Equipment Parts Hook Block PulleyUS$ 295 - 2940MOQ: 1 Piece
-
Factory Customizable Oilfield Well Drilling Equipment Jet and Swirl Mixer HopperUS$ 458 - 565MOQ: 1 Set
-
Factory Supply Oil Drilling Fluid Solid Control Equipment Mud Purity GLW500X1250-N Horizontal ScrewUS$ 16500 - 19500MOQ: 1 Set
-
Factory Supply Oilfield Well Drilling Fluid Tank Machinery Solid Control Equipment ZQJ100X12 DesilteUS$ 2200 - 3125MOQ: 1 Set
Brand Name
STAR
Place of Origin
China
Model Number
JJ
Type
Other, Mast
Certification
ISO/API
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 Month
Weight
6500kg(21m)/10500(29m)
Dimension(L*W*H)
29000*1500*1300mm
Power Type
Other, No Need
Voltage
Normal
Condition
New
Power(W)
No need
Product Application

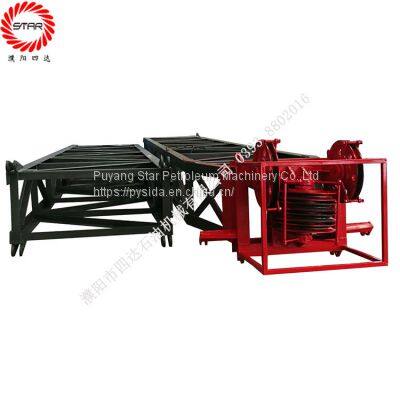

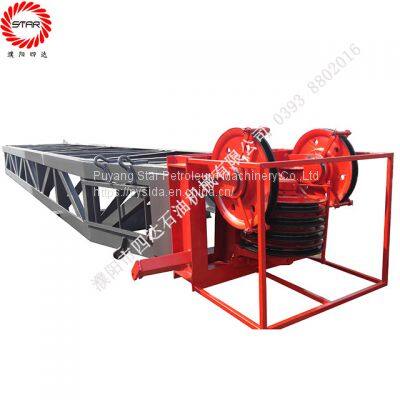

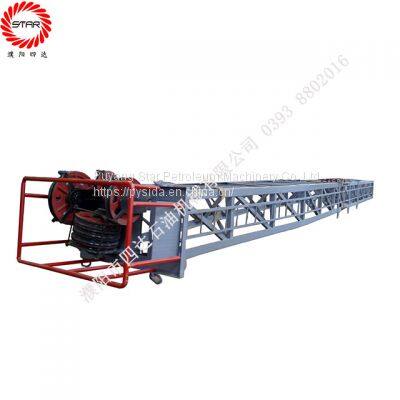

Mast is used for installing crown block, hanging cruisers, hook, rings, elevators, etc, as well as devices for lifting and storing drill pipes, tubing and sucker rods during drilling or workover operations.
| Mast Technical Parameters | ||
Model SPC | JJ80-21 | JJ80-29 |
| Height | 21m | 29m |
| Structure | 1.Crown Block 2.Mast 3.Base(Cement Base) 5.Hook Block(Optional) | |
| Rated Load | 880KN | |
| Main Frame | 160*160*14 Angle Steel 16Mn | |
| Guy-Wire | Front 4 +Behind 2= Total 6 (Can Be Added) | |
| Weight | 6500kg | 10500kg |
| Crown Block | TC80 6 Pulleys | |
| Hook Block | YG80 4 Pulleys | |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
