aluminium trapezoidal steel roofing sheet making machine

FOB Price

USD $6000 - $8000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Tianjin
Payment Terms:L/C D/P D/A Credit Card Cash
Delivery Detail:30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	DIXIN	Place of Origin:	China	Model Number:	roof tile making machine
Use:	Roof	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas
Warranty:	12 Months	Weight:	2.5ton	Dimension(LWH):	650013001100
Production Capacity:	10-15m/min	Condition:	New	Voltage:	380V 50Hz 3phases or custome
Power(W):	4+4KW	Type:	Tile Forming Machine	Tile Type:	Steel

Product Description

aluminium trapezoidal steel roofing sheet making machine

Widely Use

Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.

The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.

1.Panel drawing

2.Flow chart : Decoiler-- Roll FormingF--PLC System—Hydraulic System –Pressing --Cutting —Output Table

3.Technical parameters


1	suitable material	Colored Steel plate, galvanized board, Aluminum plate
2	Input width	1000mm
2	Effective width of sheet	840mm
3	Rows of rollers	13rows
4	material of roller	high grade 45# steel(plated chrome on surface)
5	Total power Main motor power: 4kw Hydraulic station power: 4kw	4kw+4kw
6	Thickness of raw material	0.3-0.8mm
7	Productivity	10-12m/min
8	diameter of shaft	75mm
9	Voltage	380V 50Hz 3phases or according to customer's request
10	Main frame	300 H steel
11	Medium plate thickness	16 mm

4.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5.Warranty
12 months, and lifelong technical support service
6.Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film.

8.Some pictures of the machine for your reference.

customer visit

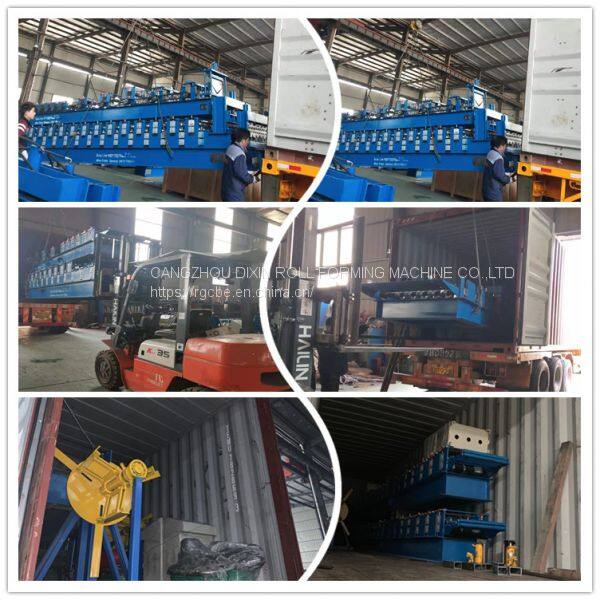

Packing ans shipping details

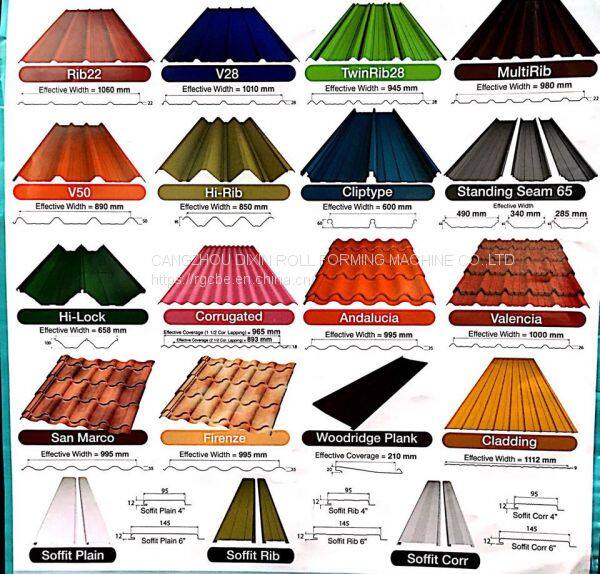

some others design

If you want to know more details of the machine,please contact us.

Contact: Bella Skype:andylidx Whatsapp: +8618231723279

Our official website:

welcome you visit our factory.
