WQK Submersible sewage pump with cutting impeller

FOB Price

USD $300 - $10000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	kenshine-pump	Place of Origin:	China	Model Number:	WQK100-100-15-7.5
Application:	Sewage	Fuel:	Other, electric motor	Power:	Electric
Usage:	Water	Theory:	Centrifugal Pump	Standard or Nonstandard:	Standard
Structure:	Single-stage Pump	Pressure:	Low Pressure

Product Description

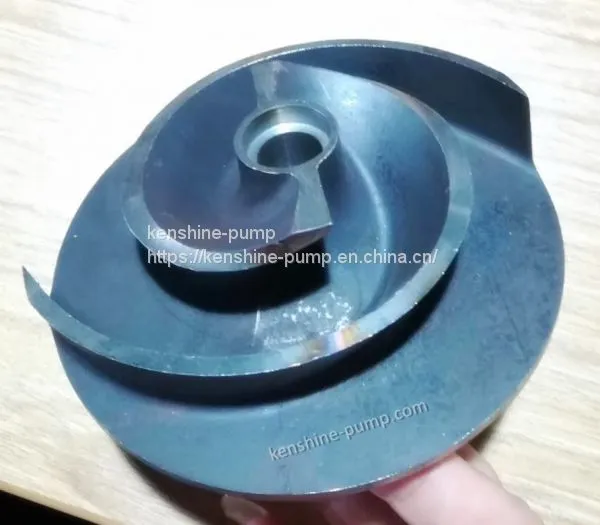

WQ Submersible sewage pump can be made of cast iron or stainless steel material. Impeller can be big flow channel or spiral impeller or cutting impeller in order to pass the wastewater with solid grain or fiber etc.

Motor can be submersible normal motor or explosion proof motor.

Submersible type and pipeline type and vertical type etc not-clogging sewage pump is the new ones with energy-saving and high effiiciency. The pumps adopt the impeller with single passage and hard alloy double rotary seals. Electric motor is devided by oil chamber. The pumps have the advantages such as not-clogging and wearable and convenient operation and energy-saving and hight efficiency.

The pumps are suitable to transport the industrial water and city waste water with solid grain and fiber. They can also be used as discharge water and paper pulp pump and filter and washing and cooling and circulation pump and gardening pump. They are widely used in mine and instructure and hospital and restaurant and waste water etc conditions.

Parameter:

Model	Characteristic			Power (KW)	Rotary speed (r/min)	Voltage (V)
Model	Outlet (mm)	Capacity (m³/h)	Head (m)	Power (KW)	Rotary speed (r/min)	Voltage (V)
25-8-22	25	8	22	1.1	2900	380
32-10-15	32	10	15	1.5	2900	〃
40-15-30	40	15	30	2.2	1900	〃
50-20-7	50	20	7	0.75	1450	〃
50-20-15	50	20	15	1.5	2900	〃
50-15-25	50	15	25	2.2	2900	〃
50-18-30	50	18	30	3	2900	〃
65-25-15	65	25	15	2.2	2900	〃
65-25-30	65	25	30	4	2900	〃
80-40-7	80	40	7	2.2	1450	〃
80-40-15	80	40	15	4	2900	〃
80-65-25	80	65	25	7.5	2900	〃
100-85-10	100	85	10	4	1450	〃
100-100-15	100	100	15	7.5	1450	〃
100-85-20	100	85	20	7.5	1450	〃
100-100-25	100	100	25	11	1450	〃
100-100-35	100	100	35	15	1450	〃
125-115-15	125	115	15	15	1450	〃
150-180-15	150	180	15	15	1450	〃
150-180-20	150	180	20	18.5	1450	〃
150-180-30	150	180	30	22	1450	〃
150-180-35	150	180	35	30	1450	〃
200-300-10	200	300	10	11	980	〃
200-300-15	200	300	15	22	1450	〃
200-300-20	200	300	20	30	1450	〃
200-300-25	200	300	25	37	1450	〃
250-600-10	250	600	10	30	980	〃
250-600-12	250	600	12	37	1450	〃
250-600-15	250	600	15	45	1450	〃
250-600-20	250	600	20	55	1450	〃
250-600-25	250	600	25	75	1450	〃
300-800-12	300	800	12	45	980	〃
300-480-15	300	480	15	45	1450	〃
300-600-20	300	600	20	55	1450	〃
300-800-20	300	800	20	20	1450	〃
