Home > Products > Hydraulic water well drilling rig > Supplying HZ-200Y drilling machine 200m / borehole drilling machine water / drilling rig accessories
Supplying HZ-200Y drilling machine 200m / borehole drilling machine water / drilling rig accessories
- 50 Set / Sets per Month
- Qingdao
- T/T L/C
- 5 days
-
Top quality widely used portable 200 m drill depth hydraulic water well drilling rig deep hydraulic water well drill machine
-
Supply trailer type water well drilling machine high power wheel type household well digger easy to walk drilling rig
-
200 Meter Top Quality XYD-200 200 Meter crawler drilling rig water well drilling rig for sale
-
XYC-200 vehicle-mounted hydraulic core drilling rig Huaxiamaster sale 200m depth on-board drilling machine
-
HuaxiaMaster supply tricycle-mounted XYC-200A core drilling machine/hydraulic rotary water well drill rig easy operated
-
Supply XY-100 hydraulic core exploration drilling rig/100m depth well drill machine /quality is guaranteed
Product Details
| Brand Name: | huaxiamaster | Place of Origin: | China | Model Number: | HZ-200Y |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Weight: | 1100KG | Power Type: | Diesel |
| Usage: | Water Well | Condition: | New | Power(W): | 15KW |
Product Description

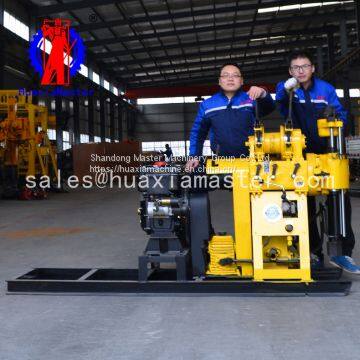

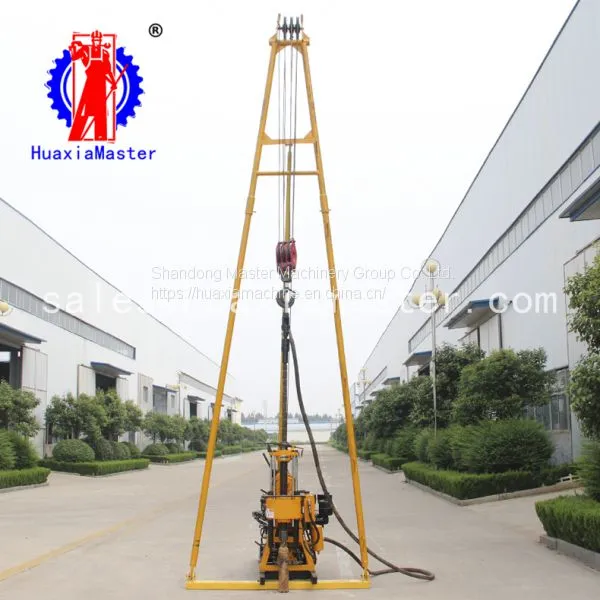

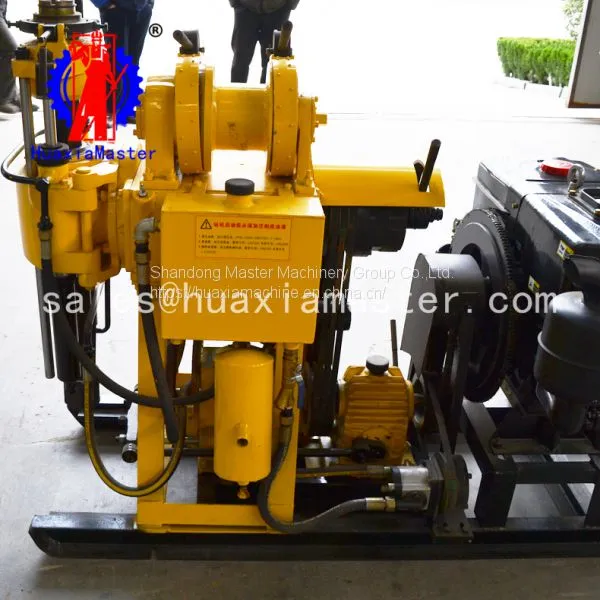

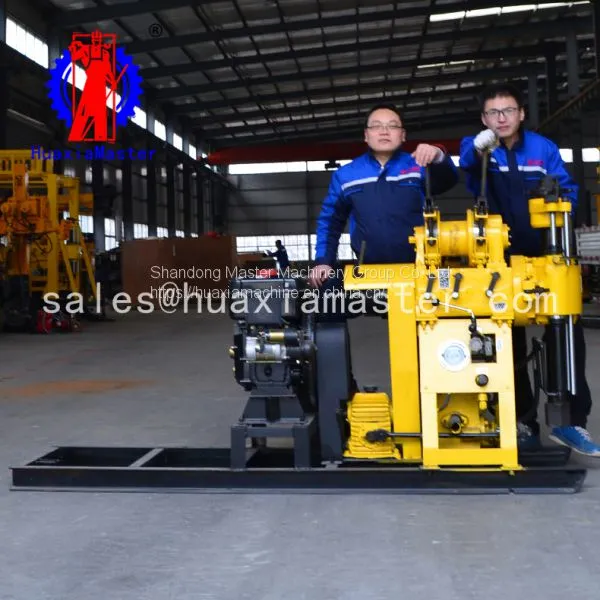

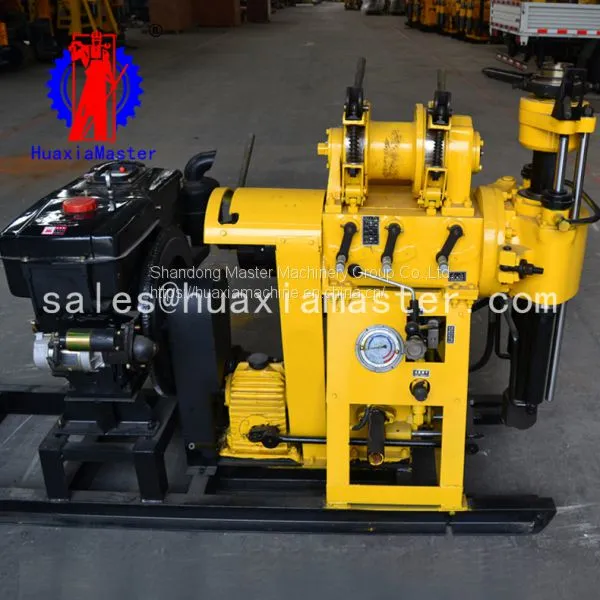

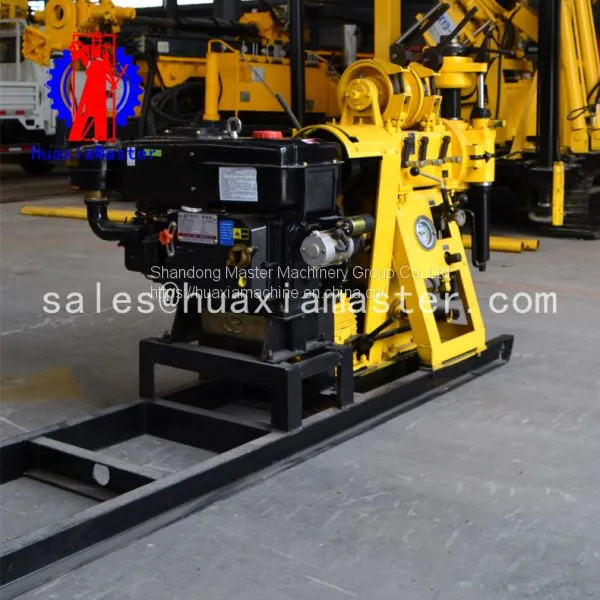

HZ-200Y hydraulic water well drilling rig
Applications of HZ-200Y hydraulic water well drilling rig
Civil water well,geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, ground temperature central air conditioners.
Features of HZ-200Y hydraulic water well drilling rig
adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
the drilling rig is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
vertical spindle are fixed by four groups of bearings to ensure that the water well drilling rig is rigid enough for gravel layer and other complex geological conditions.
we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.
Specifications of HZ-200Y hydraulic water well drilling rig
HZ-200Y hydraulic water well drilling rig | |
Drilling depth | 200m |
Max open hole caliber | 300mm |
End hole caliber | 75mm |
Drill rod caliber | 60mm |
Drilling angle | 90°-75° |
Drill weight(without power) | 1100kg |
Triangle conveyer belt | B950*4 B1700*3 |
The main machine moving distance | 300mm |
Power | Diesel engine 22HP Electric motor 15kw |
Spindle | |
Spindle speed | 64/128/287/557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.lifting capacity | 2400kg |
Single line lifting speed | 0.41/ 0.82/1.64m/s |
Wirerope caliber | 13mm |
Wirerope length | 35m |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Mud pump | |
Type | Horizontal single-urn twin-action |
Displacement | Diesel engine 170L/min Electric motor 150L/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Inlet pipe caliber | 40mm |
Outlet pipe caliber | 30mm |
Triangle conveyer belt | B1728mm |
Mud pump | |
Type | CBT—F—314 |
Triangle conveyer belt | B1100× 1 |
